BDA260202 - Square D 20A 600V 2 Pole I-Line Molded Case Circuit Breaker Powerpact BDA

SKU: BDA260202-New
Condition: New
Price:
$486.56
Stock:
10 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BDA260202 - Schneider Electric/ Square D I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply

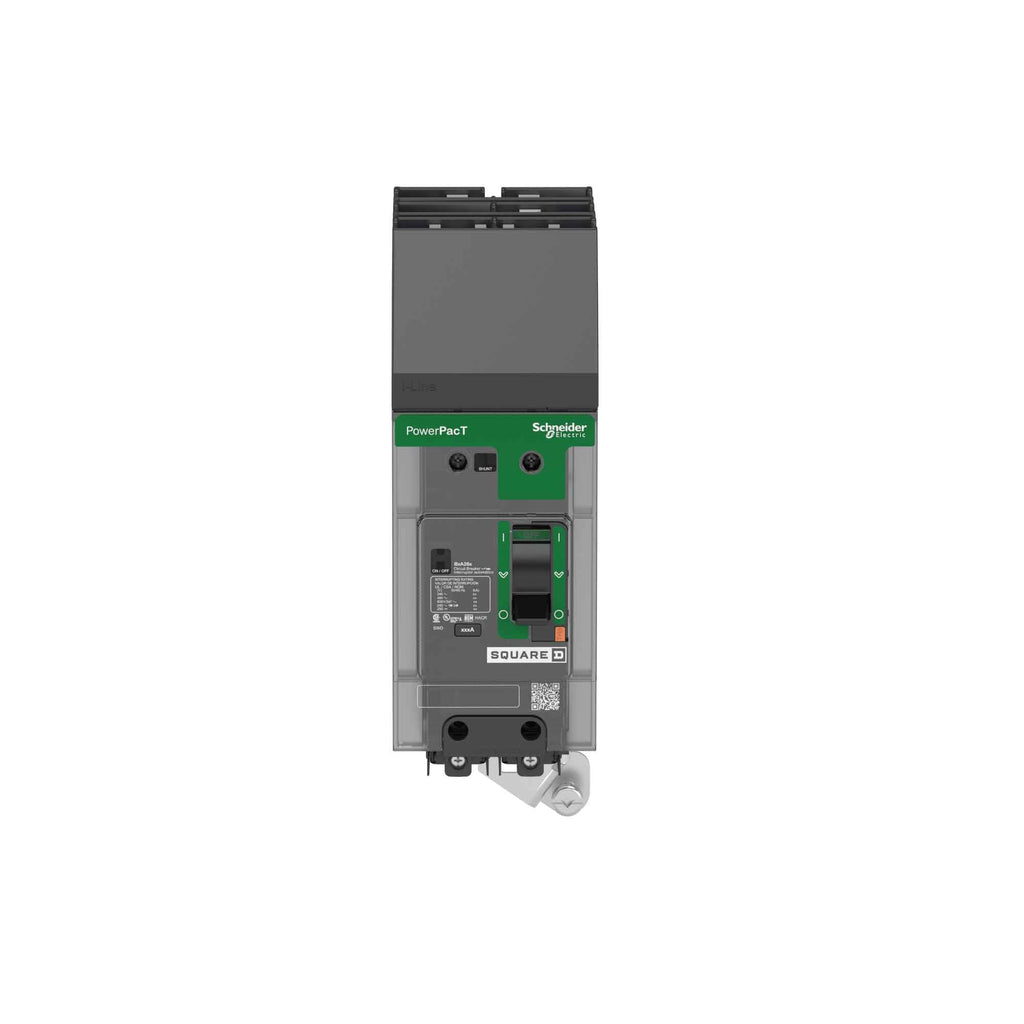

BDA260202 - Square D 20A 600V 2 Pole I-Line Molded Case Circuit Breaker Powerpact BDA - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

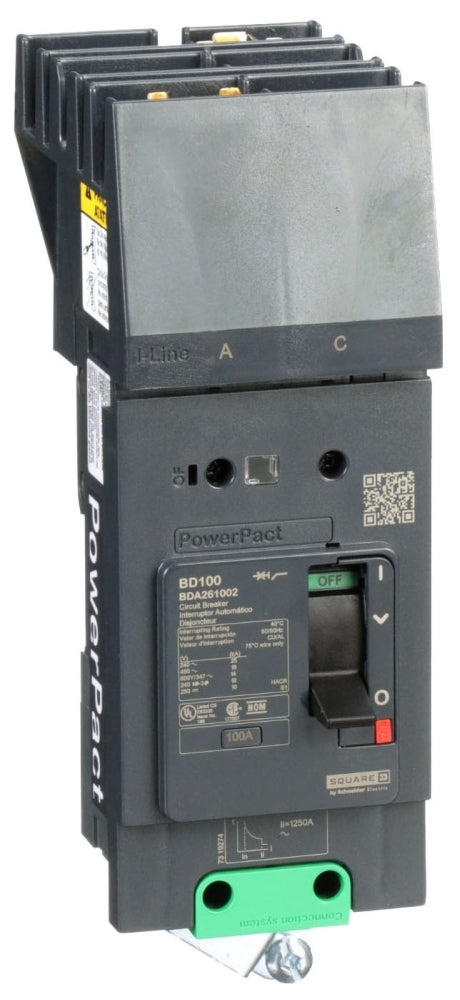

BDA260202 - Schneider Electric/ Square D I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260202 - Square D 20A 600V 2 Pole I-Line Molded Case Circuit Breaker Powerpact BDA - Essential Electric Supply

Description

BDA260202


BDA260202 is a Square D 2 pole, 20 amp, 600 volt I-Line style molded case circuit breaker from the Powerpact BDA family.This thermal magnetic circuit breaker features a non-interchangeable trip unit with long-time and instantaneous trip functions, designed for reliable protection in industrial and commercial applications. It has an interrupt rating of 18kA at 480V and is suitable for 1-phase systems with load side mechanical lug terminals.
    Key Specifications
    • Manufacturer: Square D
    • Part Number: BDA260202
    • Amperage: 20 Amps
    • Voltage Rating: 600 Volts
    • Poles: 2
    • Mounting Type: I-Line Style Plug-In
    • Interrupt Rating: 18kA @ 480V
    • Series/Frame: Powerpact BDA
    • Trip Unit: Thermal Magnetic, Long-Time and Instantaneous
    • Phase: Single Phase
    • Connection: Load side mechanical lug terminals
    • Certifications: Meets industry standards for molded case circuit breakers
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BDA260202
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BDA
    • Voltage : 600
    • Amperage : 20
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : I-Line
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : I-Line, Lug
    • Frame Size : D
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
    • Protection : Thermal Magnetic
    • Phase Connection : AC

    Product Data

    • UPC : 060648115204
    • GTIN : 03606481152046
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
    • Weight : 3.11
    • Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, UL 489, GB 14048.2, NMX J-266
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 14...AWG 2/0 aluminium/copper
