BDA260152 - Square D 15A 600Y/347VAC 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In BDA Frame

Save $255.15
SKU: BDA260152-New
Condition: New
Price:
$553.85 $809.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

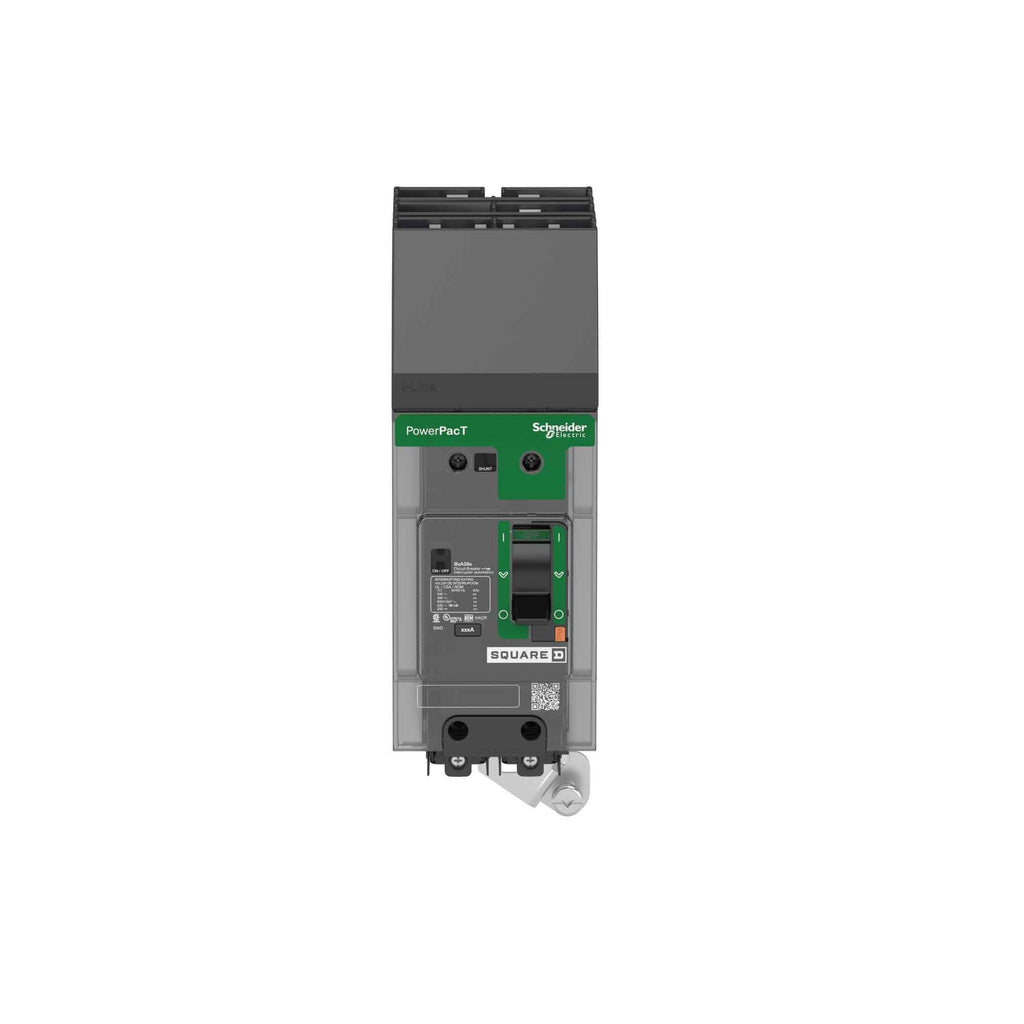

BDA260152 - Square D/ Schneider Electric I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260152 - Square D 15A 600Y/347VAC 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In BDA Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA260152 - Square D/ Schneider Electric I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260152 - Square D 15A 600Y/347VAC 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In BDA Frame - Essential Electric Supply

Description

BDA260152


BDA260152 is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 15 amps and 600Y/347VAC voltage with I-Line style plug-in connection.This circuit breaker features a BDA frame with long time and instantaneous trip functions, an interrupting rating of 18kAIC at 480V, and thermal magnetic protection. It supports line and load lug terminal connections with wire gauge capacity from AWG 14 to AWG 2/0 for aluminum or copper conductors. Certified to multiple standards including UL, CSA, NEMA, IEC, and RoHS, it is designed for reliable overload and short circuit protection in industrial applications.
    Key Specifications
    • Manufacturer: Square D
    • Part Number: BDA260152
    • Amperage: 15 A
    • Voltage: 600Y/347 VAC
    • Poles: 2
    • Frame Type: BDA
    • Interrupt Rating: 18kAIC @ 480V
    • Connection Type: I-Line Style Plug-In
    • Trip Functions: Long Time and Instantaneous
    • Protection Type: Thermal Magnetic
    • Terminal Connection: Line and Load Lug
    • Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
    • Certifications: UL, CSA, NEMA, IEC, RoHS
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA260152
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 15
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : D
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 060648115199
  • GTIN : 03606481151995
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 2.97
  • Standards : NMX J-266, UL 489, GB 14048.2, NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
