BDA261002 - Square D 100A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line Plug-In

Save $411.04
SKU: BDA261002-New
Condition: New
Price:
$568.96 $980.00
Stock:
73 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BDA261002 - Square D/ Schneider Electric I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA261002 - Square D 100A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line Plug-In - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

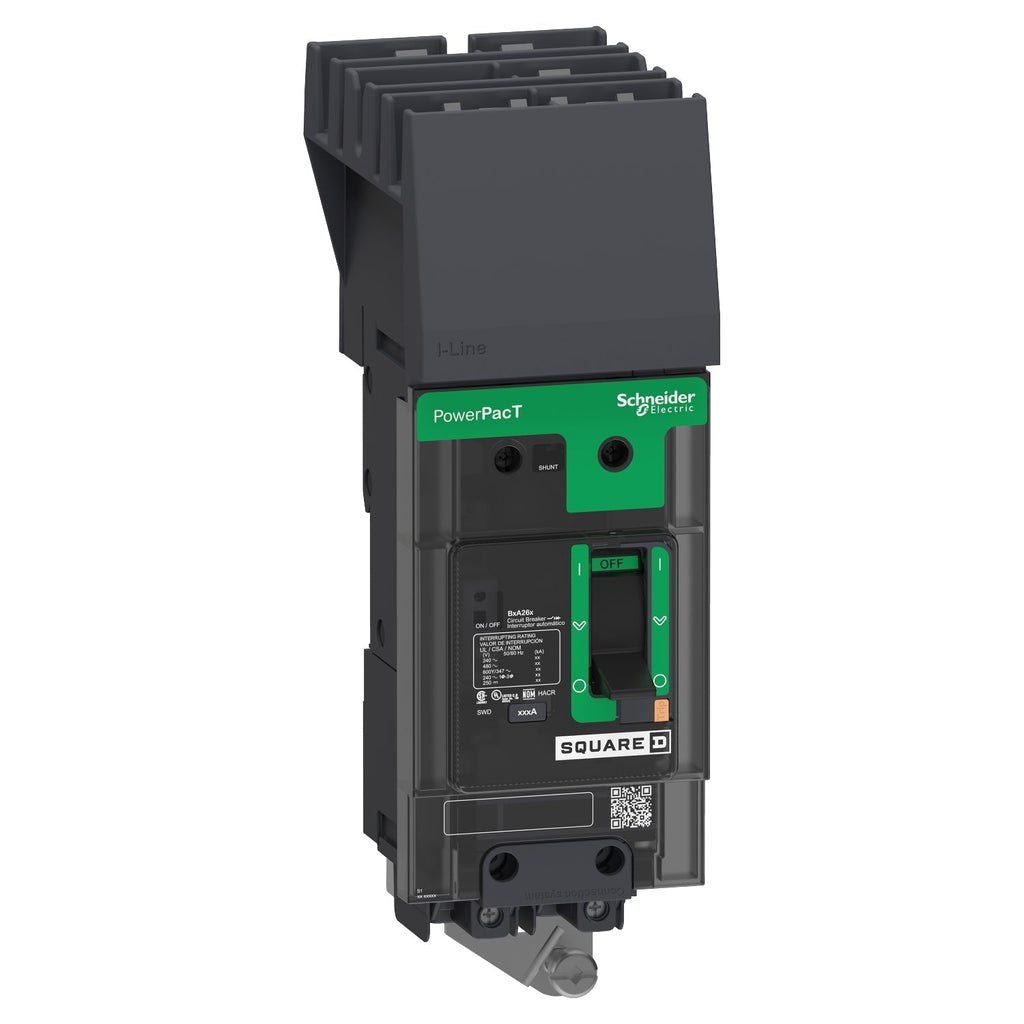

BDA261002 - Square D/ Schneider Electric I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply

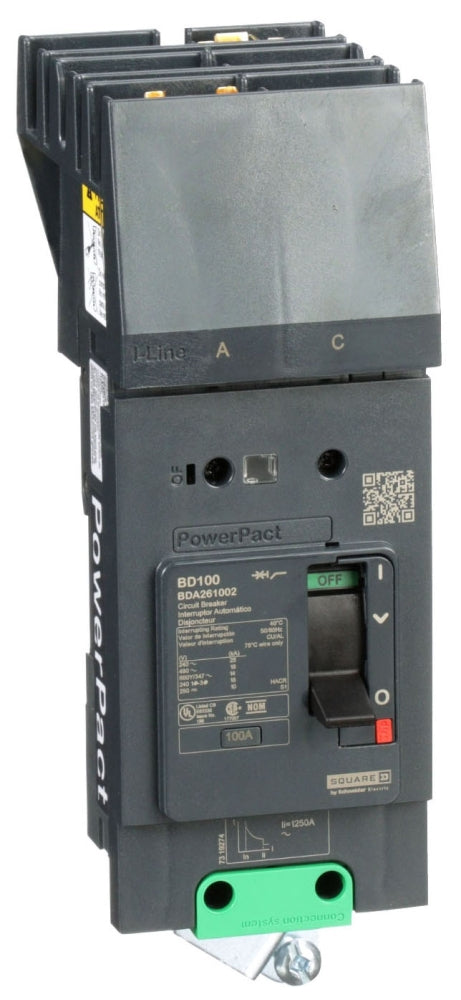

BDA261002 - Square D 100A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line Plug-In - Essential Electric Supply

Description

BDA261002


BDA261002 is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 100 amps and 600Y/347VAC voltage with I-Line plug-in connection.This circuit breaker features a BDA frame with dual mounting options for DIN rail and panel, an interrupting rating of 18kA at 480V, and long time plus instantaneous trip functions. It supports line and load lug terminal connections and accommodates wire gauges from AWG 14 to AWG 2/0 for aluminum or copper conductors. Certified to multiple standards including UL, CSA, CE, IEC, and RoHS, it is designed for reliable protection in industrial and commercial applications.
    Key Specifications
    • Amperage: 100A
    • Voltage Rating: 600Y/347VAC
    • Poles: 2
    • Mounting Type: DIN Rail, Panel
    • Interrupting Rating: 18kA at 480V
    • Frame Type: BDA
    • Connection Type: I-Line Style Plug-In
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
    • Terminal Connection: Line and Load Lug
    • Wire Gauge Range: AWG 14 to AWG 2/0 Aluminum/Copper
    • Certifications: UL, CSA, CE, IEC, RoHS, NOM, CCC, NEMA
    • Operating Temperature: -13 to 158°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA261002
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 100
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 785901018643
  • GTIN : 03606481152329
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.15
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : CSA C22.2 No 5, EN/IEC 60947-5-1, NMX J-266, NEMA AB1, UL 489, GB 14048.2, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
