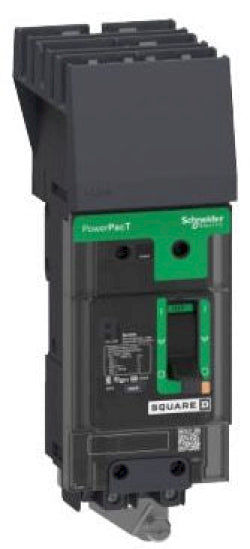

BDA260901 - Schneider Electric PowerPact B 90 Amp Two Pole 25kA Circuit Breaker

BDA260901

BDA260901 is a PowerPact B molded case circuit breaker from Schneider Electric designed for industrial power distribution and motor protection applications. This thermal magnetic breaker provides reliable overcurrent protection with dual-break rotating contacts for secure circuit interruption. BDA260901 combines compact design with robust performance, featuring thermal-mechanical protection up to 14kA and a maximum interrupt rating of 25kA. The breaker is available in multiple mounting configurations including I-Line and unit mount options, with dual AC/DC rating and three levels of breaking capacity for flexible system integration.

• Amperage: 90 Amp
• Poles: Two Pole
• Maximum Voltage: 525 VAC
• Interrupt Rating: 25 kA
• Breaker Type: Thermal Magnetic
• Series: PowerPact B
• Manufacturer: Schneider Electric (Square D)
• Component Type: Molded Case Circuit Breaker
• Thermal Protection: Up to 14kA
• Dual Rated: AC/DC with 3 levels of breaking capacity

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA260901
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : B Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901049043
• GTIN : 00785901049043
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.9
• Standards : UL 489, CSA C22.2 No 5, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2, NEMA AB1, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
