BDA260702 - Square D 70 Amp 600V 2 Pole I-Line Molded Case Circuit Breaker, 18kAIC@480V, PowerPact B Frame, Thermal Magnetic Trip, UL IEC CSA Certified

Save $436.28
SKU: BDA260702-New
Condition: New
Price:
$542.72 $979.00
Stock:
56 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

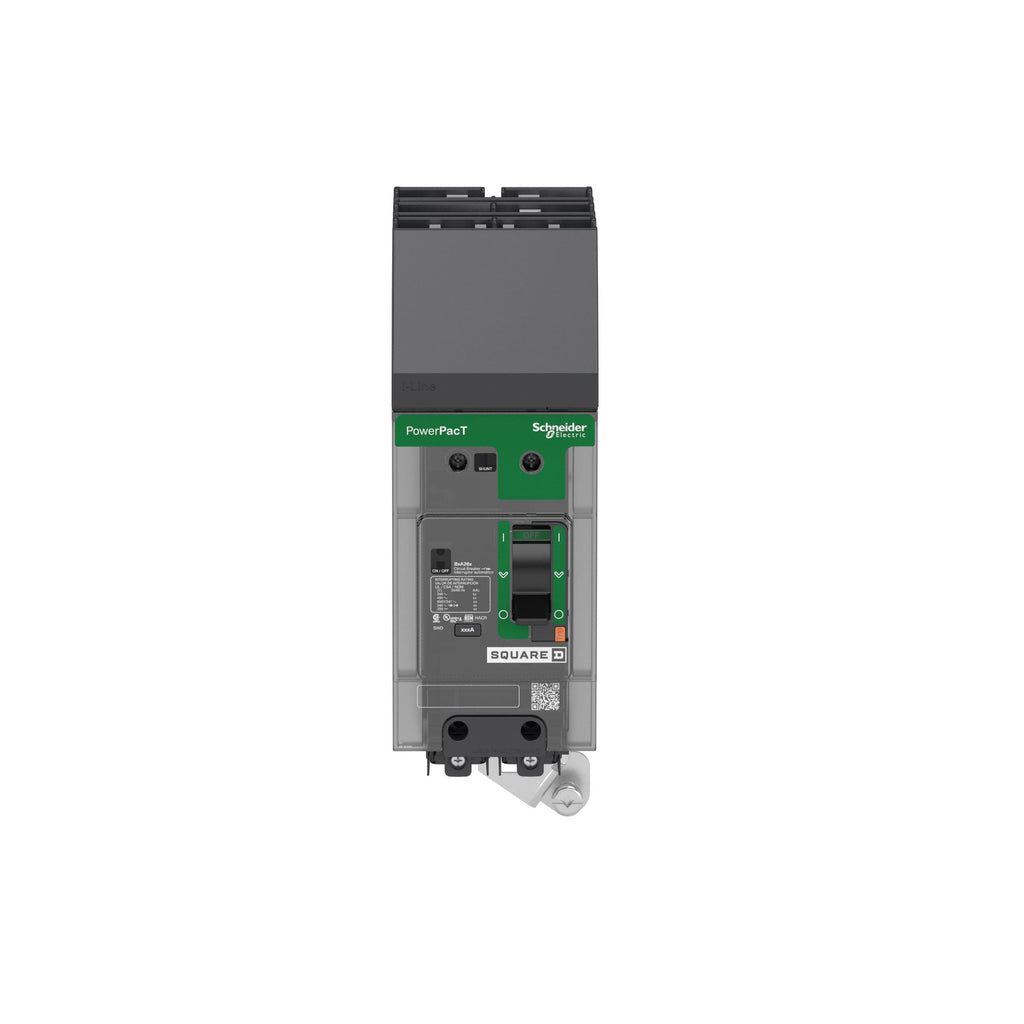

BDA260702 - Schneider Electric/ Square D I-Line Style Plug-In 70 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260702 - Square D 70 Amp 600V 2 Pole I-Line Molded Case Circuit Breaker, 18kAIC@480V, PowerPact B Frame, Thermal Magnetic Trip, UL IEC CSA Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA260702 - Schneider Electric/ Square D I-Line Style Plug-In 70 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260702 - Square D 70 Amp 600V 2 Pole I-Line Molded Case Circuit Breaker, 18kAIC@480V, PowerPact B Frame, Thermal Magnetic Trip, UL IEC CSA Certified - Essential Electric Supply

Description

BDA260702


BDA260702 is a Square D 2 pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 70 Amp current rating, 600V AC voltage rating, and 18kA interrupting capacity at 480V. It uses an I-Line style plug-in mounting, is part of the PowerPact B series, and includes both long time and instantaneous trip functions. Suitable for reverse fed applications, it is certified to UL, IEC, CSA, CCC, EAC, and NOM standards for global compliance.

    Key Specifications
  • Part Number: BDA260702
  • Manufacturer: Square D
  • Amperage: 70A
  • Voltage: 600V AC
  • Poles: 2
  • Mounting Type: I-Line Style Plug-In
  • Interrupt Rating: 18kAIC@480V
  • Series/Frame: PowerPact B (BDA)
  • Trip Unit: Thermal Magnetic (Long Time & Instantaneous)
  • Certifications: UL, IEC, CSA, CCC, EAC, NOM
  • Connection: Load Side Mechanical Lug
  • Wire Range: AWG 14 to 2/0 Aluminum/Copper
  • Temperature Range: -13 to 158°F (-25 to 70°C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA260702
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 70
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : D
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 060648115225
  • GTIN : 03606481152251
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.13
  • Standards : EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, NMX J-266, NEMA AB1, CSA C22.2 No 5, GB 14048.2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
