BDA260602 - Square D PowerPact B 60A 2P 600Y/347V I-Line Circuit Breaker 18kA@480V

SKU: BDA260602-New
Condition: New
Price:
$703.87
Stock:
13 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BDA260602 - Schneider Electric/ Square D I-Line Style Plug-In 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260602 - Square D PowerPact B 60A 2P 600Y/347V I-Line Circuit Breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA260602 - Schneider Electric/ Square D I-Line Style Plug-In 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260602 - Square D PowerPact B 60A 2P 600Y/347V I-Line Circuit Breaker 18kA@480V - Essential Electric Supply

Description

BDA260602

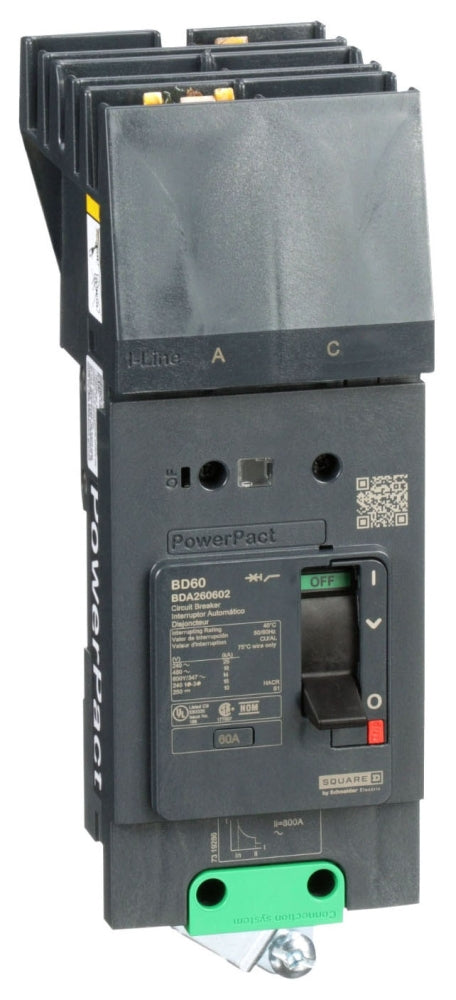

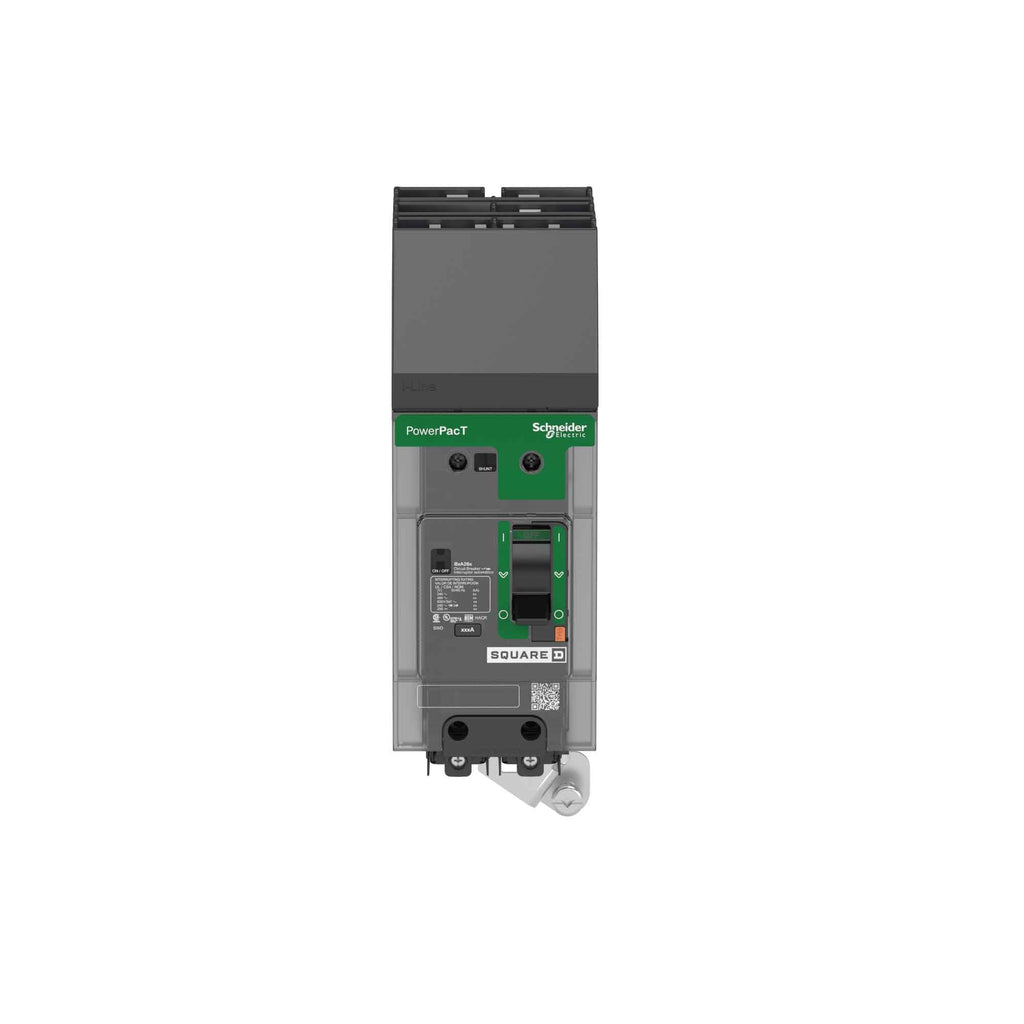

BDA260602 is a Square D PowerPact B series 60A 2-pole I-Line circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This molded case circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, suitable for AC applications up to 600Y/347V. It offers a 18kA interrupting rating at 480V and is built for I-Line style plug-in mounting, ensuring secure and easy installation. Engineered for durability and safety, the BDA260602 is UL 489 listed and meets multiple international standards including CE, CSA, and RoHS. Its non-interchangeable trip unit and load side mechanical lug terminals provide added reliability and flexibility for reverse fed applications.
  • Part Number: BDA260602
  • Manufacturer: Square D
  • Series/Frame: PowerPact B, BDA Frame
  • Amperage: 60A
  • Poles: 2
  • Voltage Rating: 600Y/347V AC
  • Interrupt Rating: 18kA@480V
  • Mounting Type: I-Line Style Plug-In
  • Protection Type: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Standards: UL 489, CE, CSA, RoHS
  • Terminal Connection: Load Side Mechanical Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA260602
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : D
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 060648115221
  • GTIN : 03606481152213
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.15
  • Standards : UL 489, GB 14048.2, NEMA AB1, EN/IEC 60947-2, CSA C22.2 No 5, NMX J-266, EN/IEC 60947-5-1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
