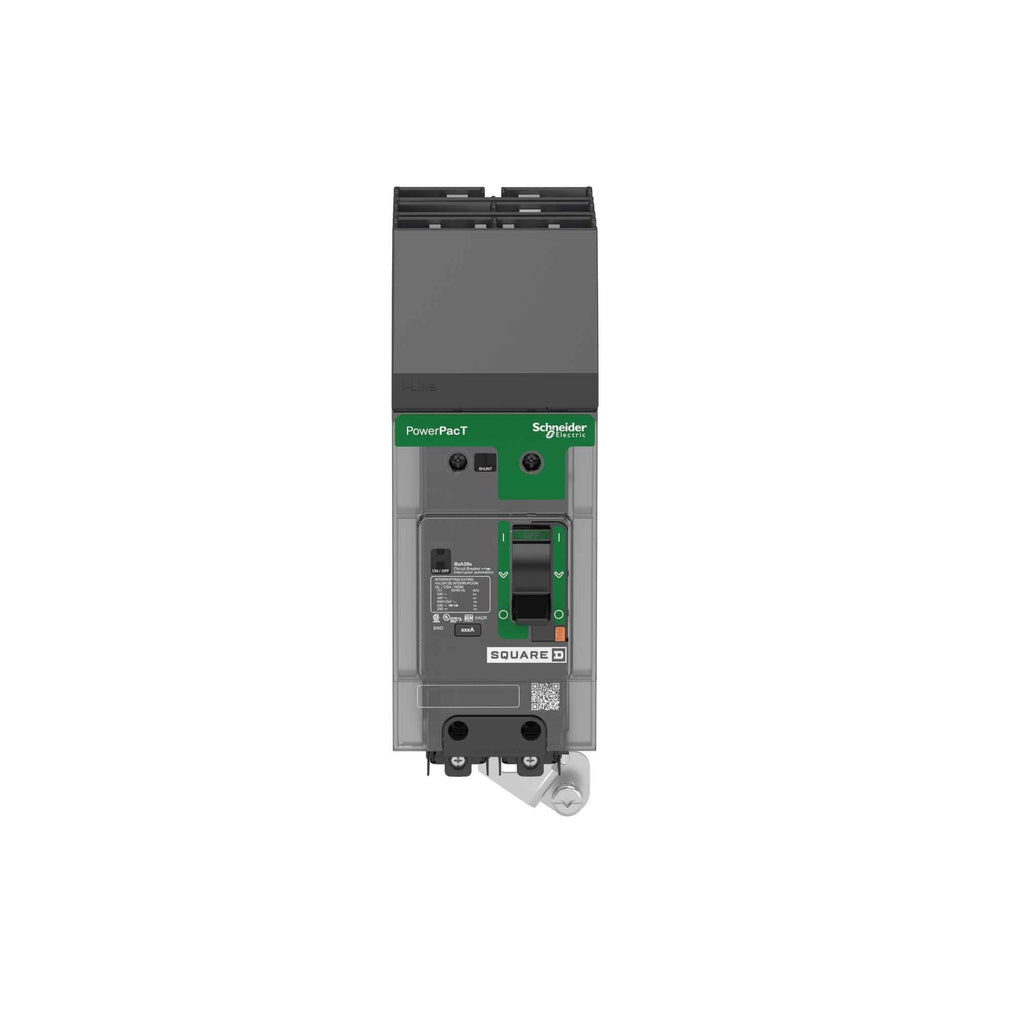

BDA260505 - Schneider Electric PowerPact B 50A 2-Pole 600Y/347VAC Molded Case Circuit Breaker I-Line Thermal Magnetic

BDA260505

BDA260505 is a Schneider Electric PowerPact B molded case circuit breaker designed for reliable electrical protection in commercial and industrial applications.

This 2-pole circuit breaker features a 50 ampere rating and is rated for 600Y/347 volts AC. It uses an I-Line style plug-in mounting system and incorporates a thermal magnetic trip unit for precise overload and short circuit protection. The breaker has a 14kA interrupt rating and is rated for 80% rated current for continuous operation. It is suitable for single-phase power systems and meets applicable Canadian electrical standards.

• Manufacturer: Schneider Electric
• Series: PowerPact B
• Amperage: 50A
• Poles: 2
• Voltage: 600Y/347VAC
• Phase: 1
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 14kA
• Continuous Current Rating: 80%
• Certifications: Canadian Standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA260505
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : B Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 060648611887
• GTIN : 03606486118870
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 2.899
• Standards : GB 14048.2, CSA C22.2 No 5, NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, NEMA AB1, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
