BDA260501 - Square D 50A 600V 2 Pole I-Line Style Plug-In Circuit Breaker

SKU: BDA260501-New
Condition: New
Price:
$710.40
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BDA260501 - Schneider Electric/ Square D I-Line Style Plug-In 50 Amp 2 Pole Circuit Breaker - Essential Electric Supply

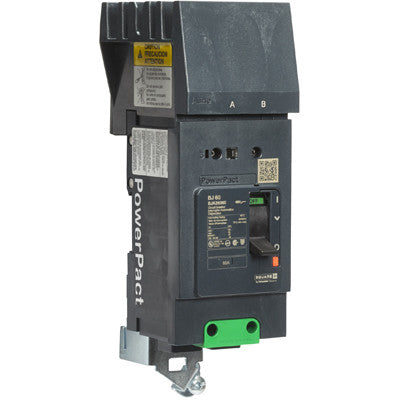

BDA260501 - Square D I-Line Style Plug-In 600V 50A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

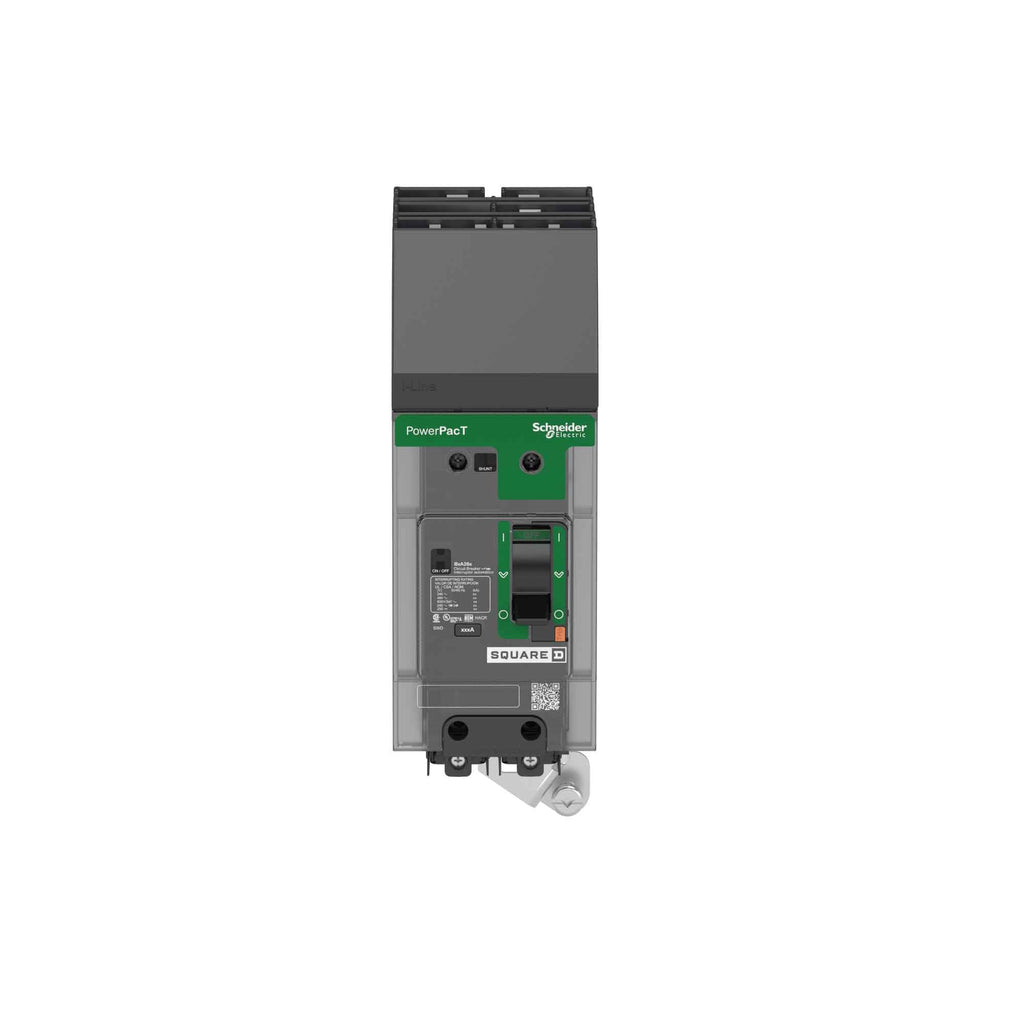

BDA260501 - Square D 50A 600V 2 Pole I-Line Style Plug-In Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA260501 - Schneider Electric/ Square D I-Line Style Plug-In 50 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260501 - Square D I-Line Style Plug-In 600V 50A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
BDA260501 - Square D 50A 600V 2 Pole I-Line Style Plug-In Circuit Breaker - Essential Electric Supply

Description

BDA260501


BDA260501 is a 2 pole, 50 amp, 600 volt I-Line style plug-in circuit breaker from Square D designed for reliable thermal magnetic protection.This molded case circuit breaker features a BDA series frame with long time and instantaneous trip functions, an interrupt rating of 18kA at 480V, and UL, IEC, CSA, CCC, EAC, and NOM certifications. It supports 1 phase electrical distribution with mechanical lug terminals for aluminum and copper wiring, suitable for industrial control panels and electrical distribution equipment.
    Key Specifications
    • Manufacturer: Square D
    • Part Number: BDA260501
    • Amperage: 50 Amps
    • Voltage Rating: 600 Volts AC
    • Poles: 2
    • Mounting Type: I-Line Style Plug-In
    • Interrupt Rating: 18kA @ 480V
    • Series/Frame: BDA
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Functions
    • Certifications: UL, IEC, CSA, CCC, EAC, NOM
    • Phase: Single Phase
    • Terminal Connection: Mechanical Lug for Aluminum/Copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA260501
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 50
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 785901021964
  • GTIN : 03606481152169
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.2
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, GB 14048.2, NMX J-266
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
