BDA260402 - Square D 40A 600V 2 Pole I-Line Thermal Magnetic Circuit Breaker 18kAIC

Save $322.44
SKU: BDA260402-New
Condition: New
Price:
$486.56 $809.00
Stock:
24 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

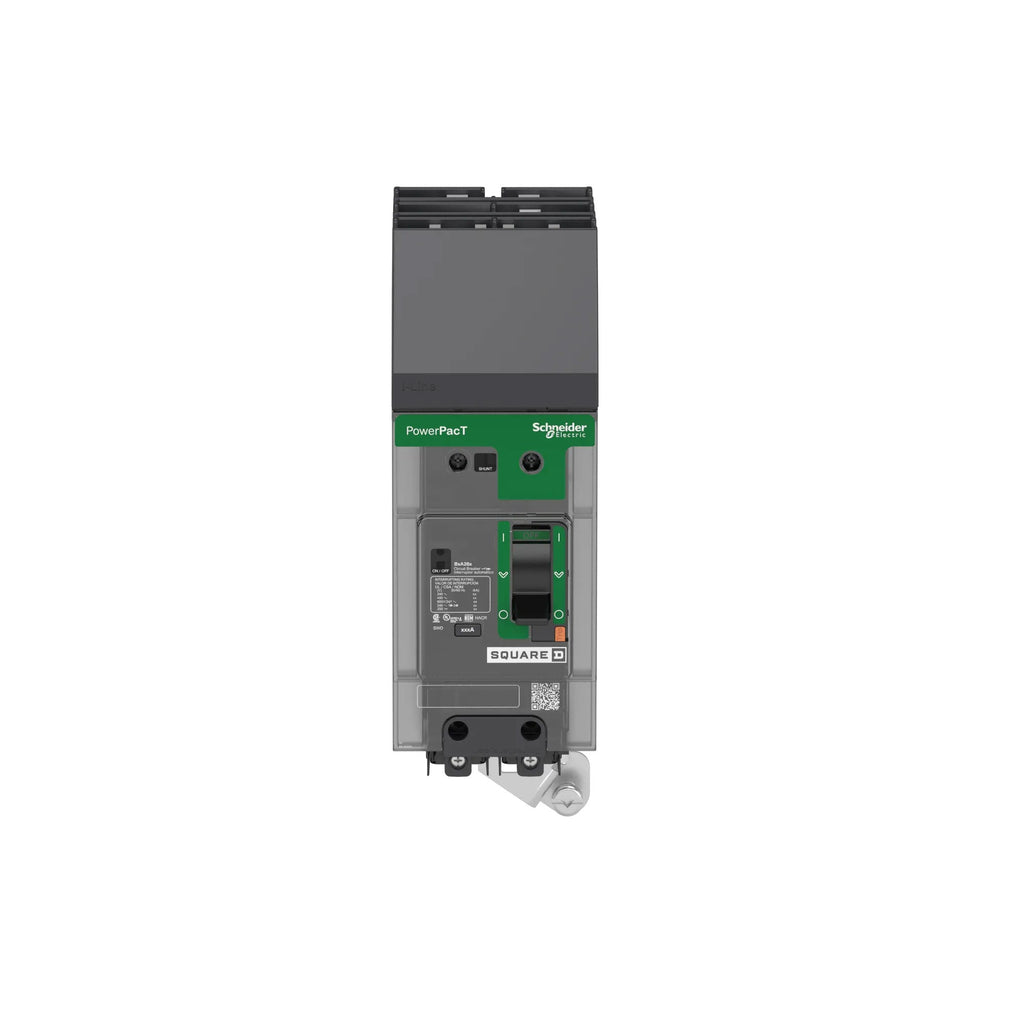

BDA260402 - Square D/ Schneider Electric I-Line Style Plug-In 40 Amp 2 Pole Circuit Breaker - Essential Electric Supply

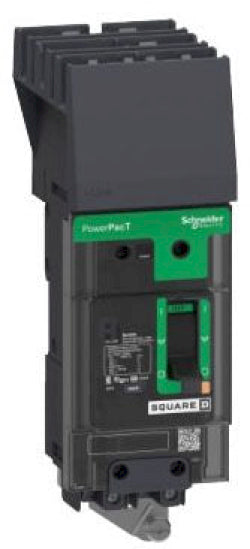

BDA260402 - Square D 40A 600V 2 Pole I-Line Thermal Magnetic Circuit Breaker 18kAIC - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA260402 - Square D/ Schneider Electric I-Line Style Plug-In 40 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260402 - Square D 40A 600V 2 Pole I-Line Thermal Magnetic Circuit Breaker 18kAIC - Essential Electric Supply

Description

BDA260402


BDA260402 is a Square D 2 pole, 40 amp, 600 volt I-Line thermal magnetic circuit breaker with an 18kA interrupting rating at 480V. It is designed for reliable circuit protection in industrial and commercial applications. BDA260402 features long time and instantaneous trip functions, a plug-in I-Line style connection, and load side mechanical lug terminals. It supports wire gauges from AWG 14 to AWG 2/0 aluminum or copper and is suitable for reverse feed applications. This breaker meets UL, IEC, CSA, CCC, EAC, and NOM certifications.
    Key Specifications
    • Amperage: 40 Amps
    • Voltage Rating: 600 Volts
    • Poles: 2
    • Mounting Type: I-Line Plug-In
    • Interrupting Rating: 18kAIC at 480V
    • Frame/Series: BDA
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous
    • Terminal Connection: Load Side Mechanical Lug
    • Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
    • Certifications: UL, IEC, CSA, CCC, EAC, NOM
    • Dimensions (HxWxD): 5.39 x 2.13 x 3.5 inches
    • Temperature Rating: -13 to 158 °F (-25 to 70 °C)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA260402
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 40
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous
  • Terminal Connection : I-Line, Lug
  • Frame Size : D
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 078590194197
  • GTIN : 00785901941972
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 2
  • Standards : UL 489, EN/IEC 60947-2, GB 14048.2, NMX J-266, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
