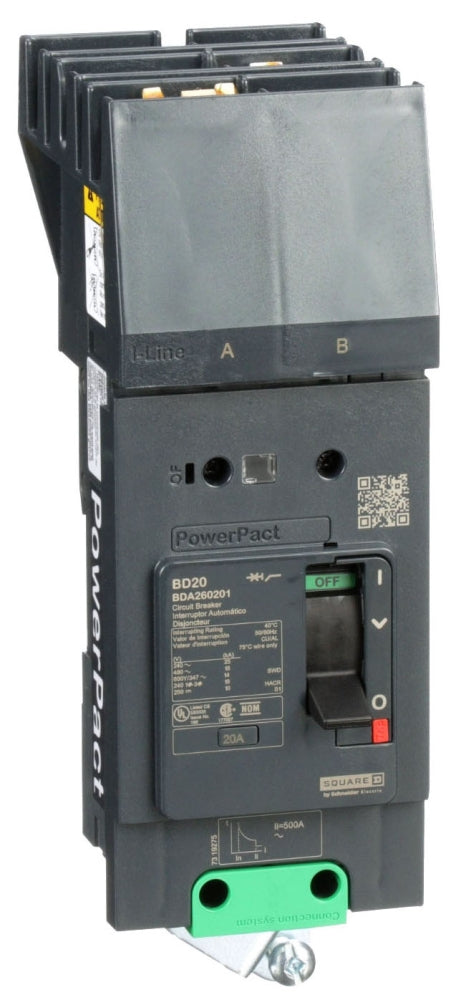

BDA260201 - Schneider Electric 20A 2 Pole 600Y/347V AC I-Line PowerPact B Circuit Breaker 14kA Thermal Magnetic

BDA260201

BDA260201 is a Schneider Electric PowerPact B circuit breaker rated for 20 amps, 2 poles, and 600Y/347 volts AC with a 14kA interrupt rating.This I-Line style plug-in breaker features thermal magnetic trip units designed for reliable protection in commercial and industrial power distribution systems. It is part of the PowerPact B series, suitable for 80% rated circuit applications, and complies with UL 489 certification standards.

• Amperage: 20A
• Voltage: 600Y/347 VAC
• Poles: 2
• Interrupt Rating: 14kA at 600Y/347 VAC
• Mounting Type: I-Line Plug-In
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• UL 489 Certified
• 80% Rated
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA260201
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901031772
• GTIN : 03606481152022
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.13
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, NMX J-266, CSA C22.2 No 5, NEMA AB1, UL 489, GB 14048.2, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
