BDA260151 - Square D 15A 600V 2 Pole Thermal Magnetic Circuit Breaker I-Line Frame BDA

Save $218.96
SKU: BDA260151-ReCert
Condition: Re-Certified
Price:
$590.04 $809.00
Stock:
Low inventory, please call for stock check
This ships in 1-2 business days

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

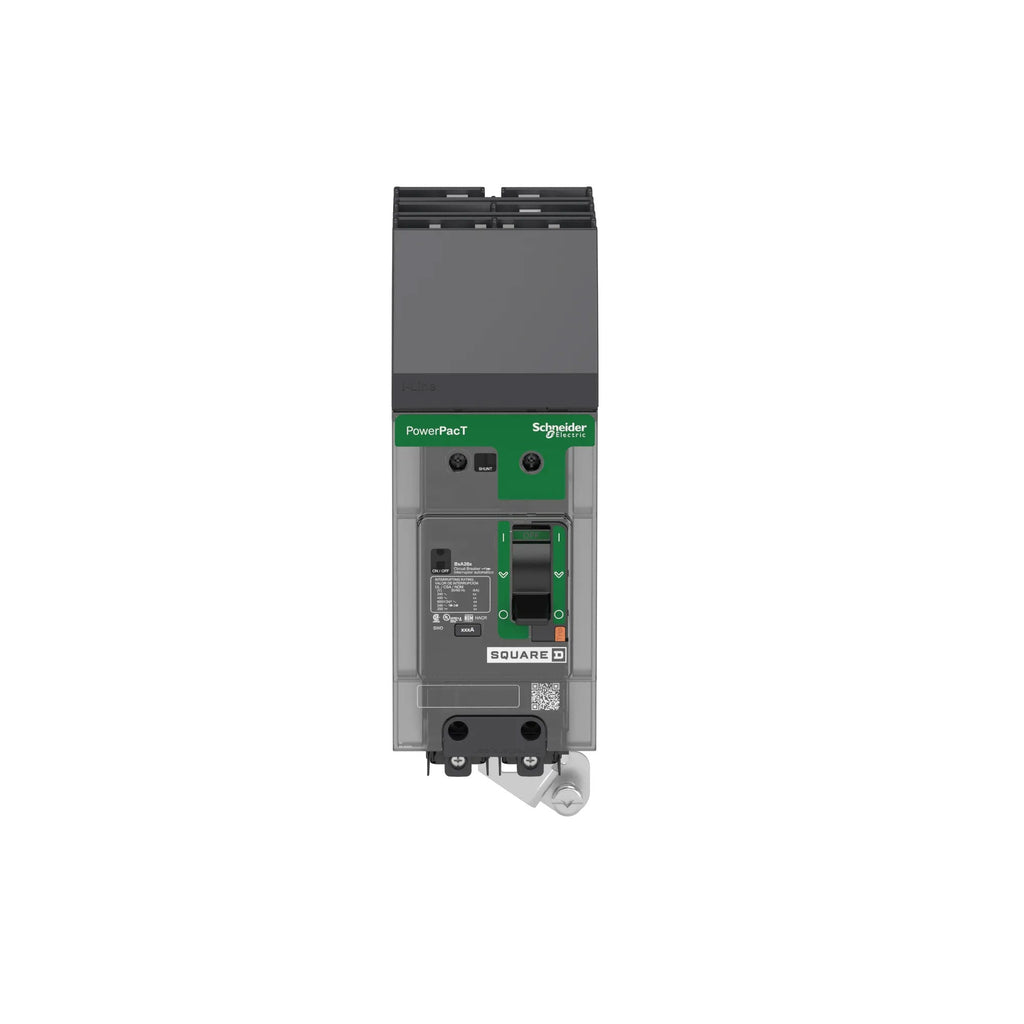

BDA260151 - Schneider Electric/ Square D I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260151 - Square D I-Line 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
BDA260151 - Square D 15A 600V 2 Pole Thermal Magnetic Circuit Breaker I-Line Frame BDA - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA260151 - Schneider Electric/ Square D I-Line Style Plug-In 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BDA260151 - Square D I-Line 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
BDA260151 - Square D 15A 600V 2 Pole Thermal Magnetic Circuit Breaker I-Line Frame BDA - Essential Electric Supply

Description

BDA260151


BDA260151 is a 2 pole, 15 amp, 600 volt thermal magnetic circuit breaker from Square D designed for I-Line mounting.This circuit breaker features a BDA frame with a plug-in I-Line style connection, providing reliable long time and instantaneous trip functions. It has an interrupting rating of 18kA at 480V AC and supports wire sizes from 14 to 2/0 AWG aluminum or copper. Certified to UL, IEC, CSA, CCC, NOM, and EAC standards, it is suitable for electrical distribution equipment and industrial control panels.
  • Amperage: 15 Amps
  • Voltage Rating: 600V AC
  • Poles: 2
  • Mounting Type: I-Line plug-in
  • Interrupting Rating: 18kA @ 480V AC
  • Frame Type: BDA
  • Trip Unit: Thermal Magnetic with long time and instantaneous functions
  • Terminal Connection: Aluminum mechanical lug off end, I-Line on end
  • Wire Gauge Range: 14 AWG to 2/0 AWG Aluminum/Copper
  • Certifications: UL, IEC, CSA, CCC, NOM, EAC
  • Dimensions (WxDxH): 2.13 x 3.5 x 5.39 inches
  • Suitable for Reverse Fed Applications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA260151
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 15
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : I-Line
  • Functions : Long Time and Instantaneous
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 078590109393
  • GTIN : 03606481151988
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.17
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NMX J-266, EN/IEC 60947-5-1, UL 489, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-2, NEMA AB1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
