B360H - Siemens 60A 240V 3-Pole Bolt-On Molded Case Circuit Breaker BLH Series

B360H

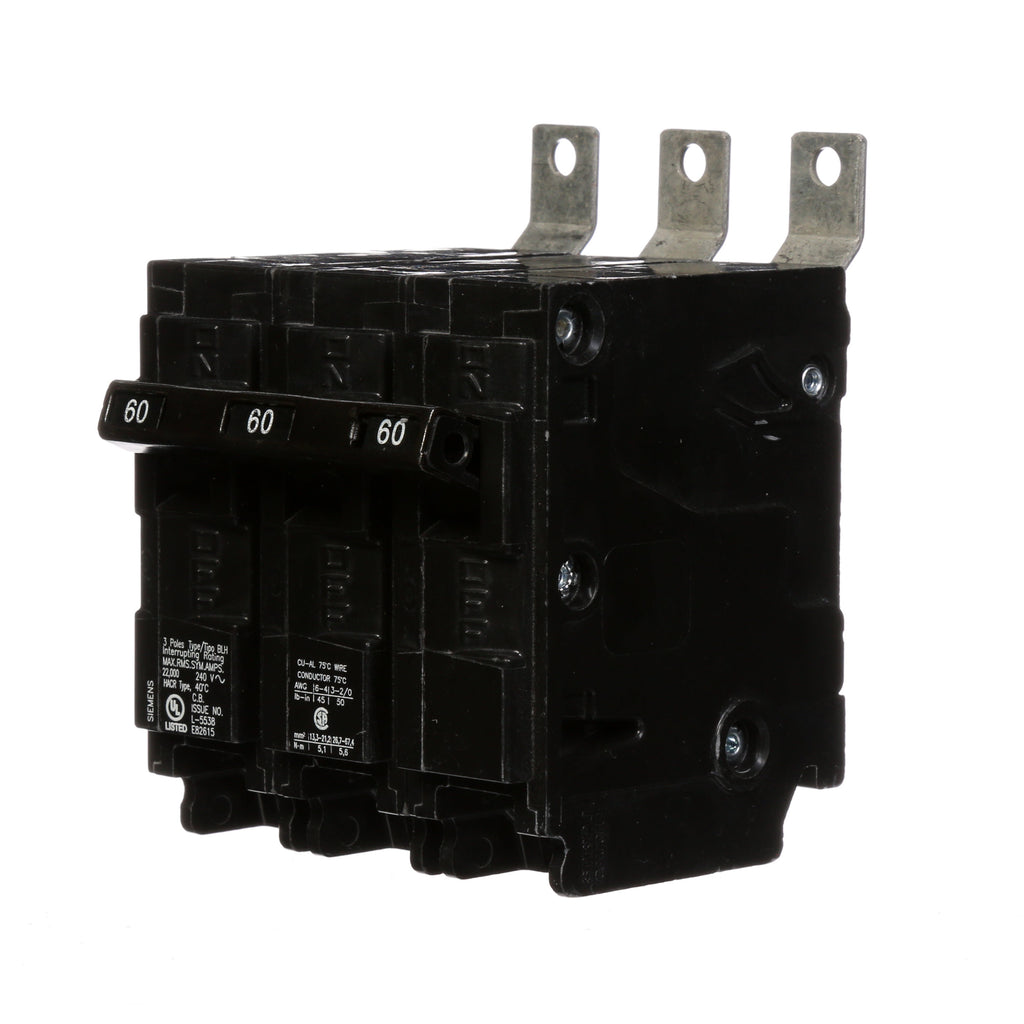

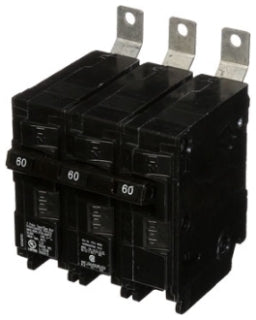

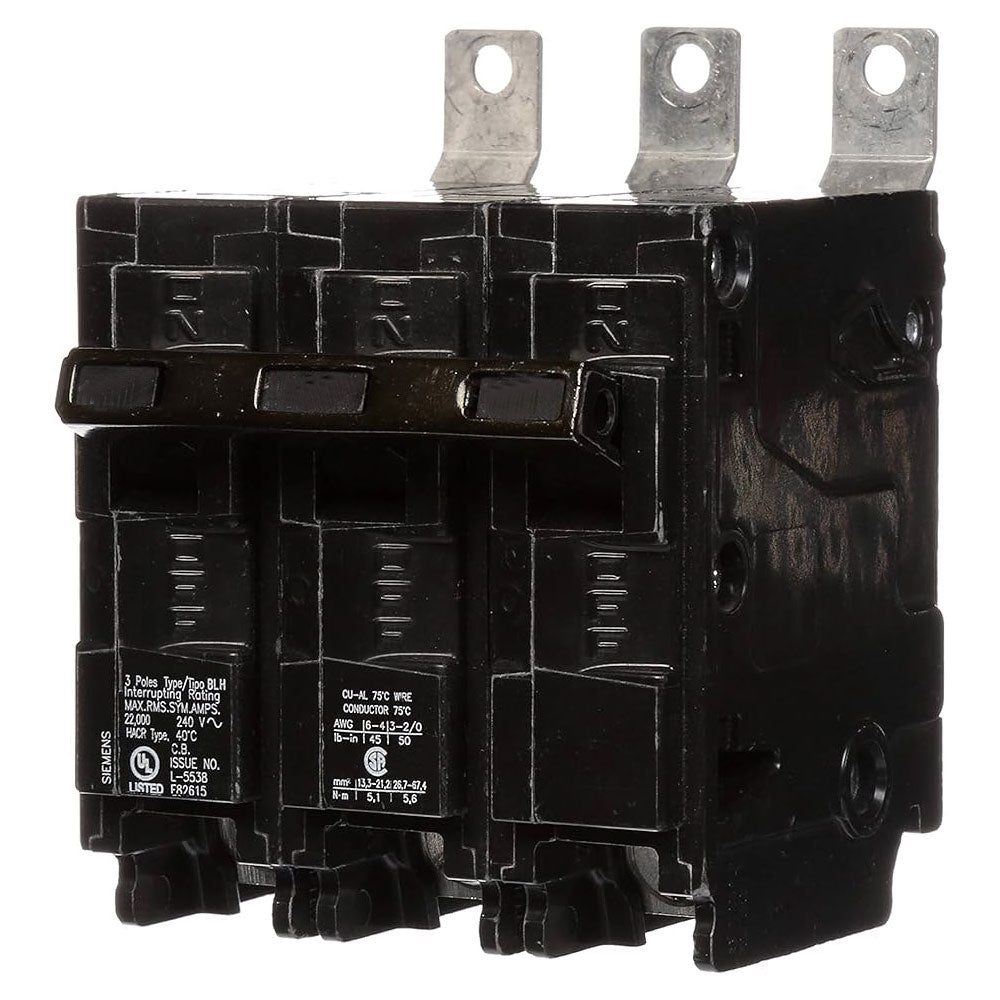

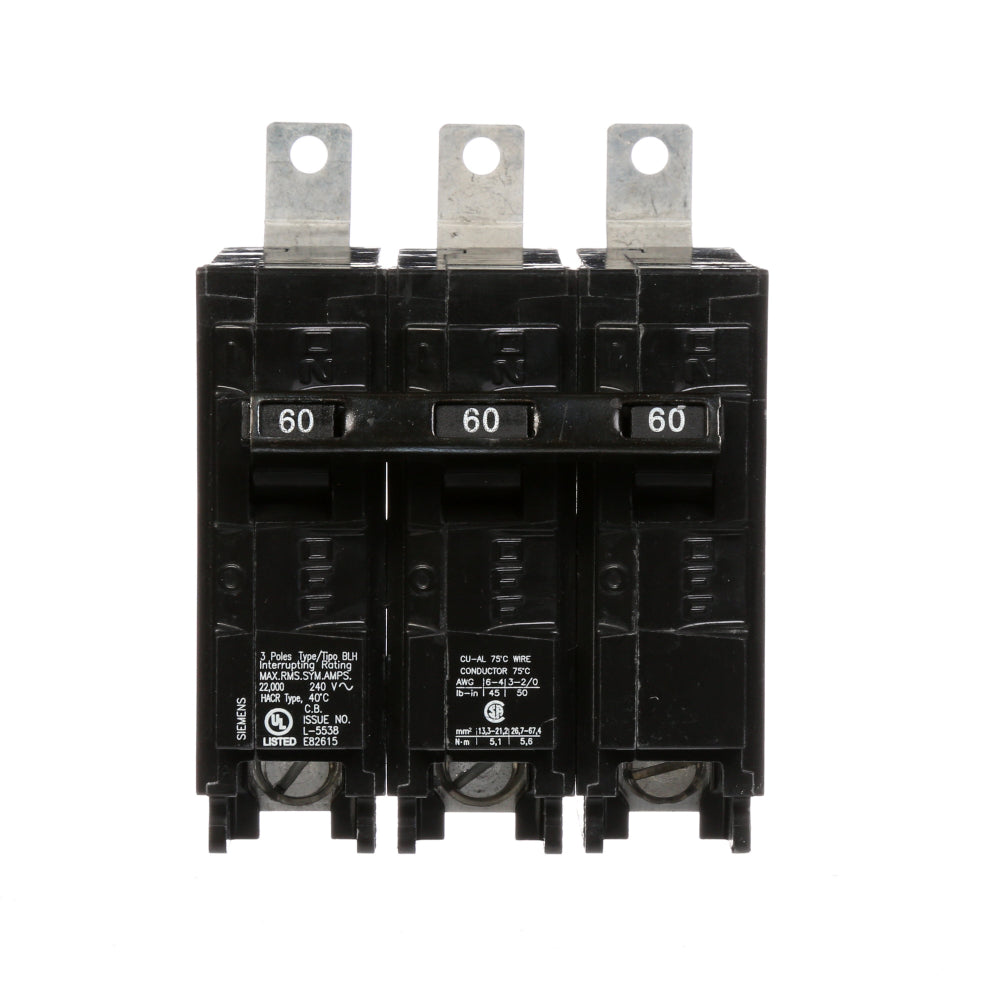

B360H is a Siemens 3-pole molded case circuit breaker with a 60 amp rating and 240 VAC voltage designed for bolt-on mounting.This Siemens B360H circuit breaker features a thermal magnetic trip unit, a 22 kA interrupting rating, and is part of the BLH series. It is UL listed and CSA certified, HACR rated, and suitable for general purpose low voltage applications. The breaker measures 3.75 inches in height, 3 inches in width, and 2.38 inches in depth.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 22 kA
• Series/Frame: BLH
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified
• HACR Rated: Yes
• Dimensions (HxWxD): 3.75 x 3 x 2.38 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B360H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264038
• GTIN : 00783643264038
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
