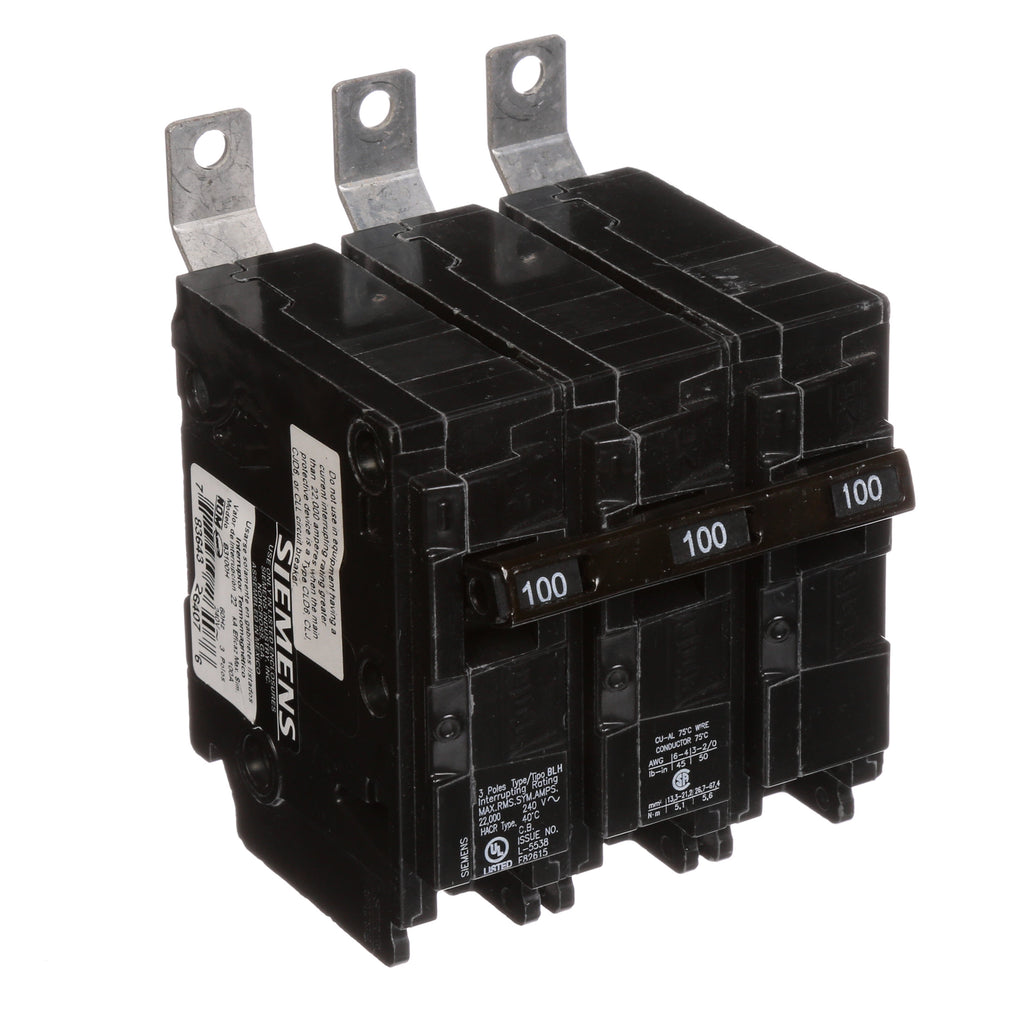

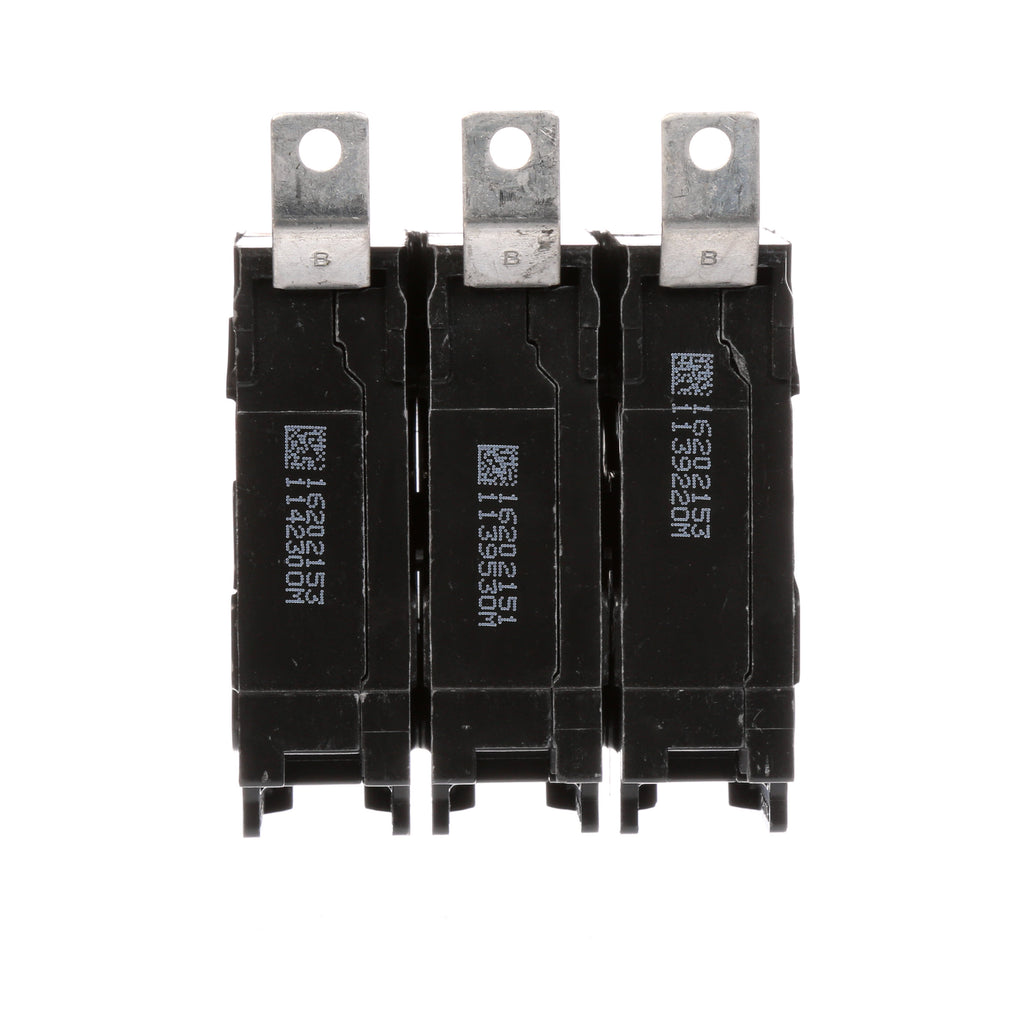

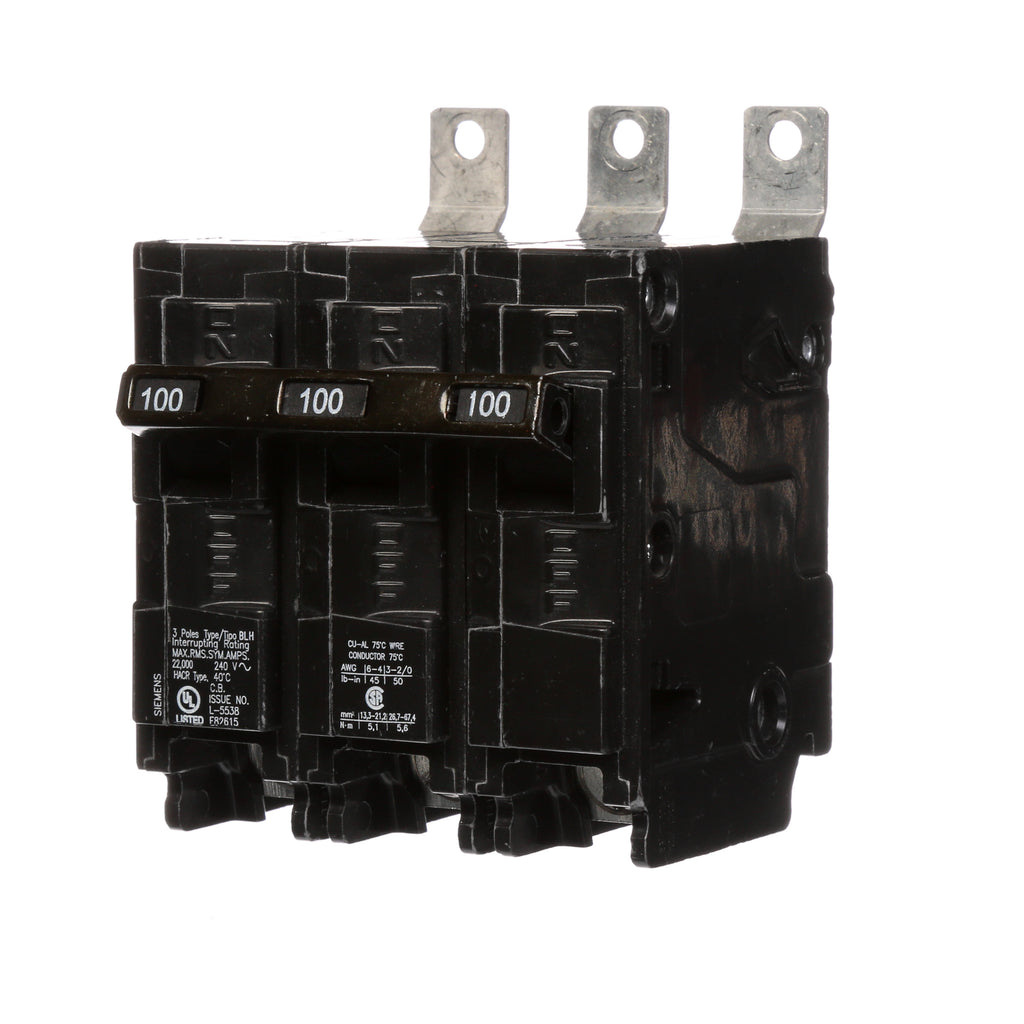

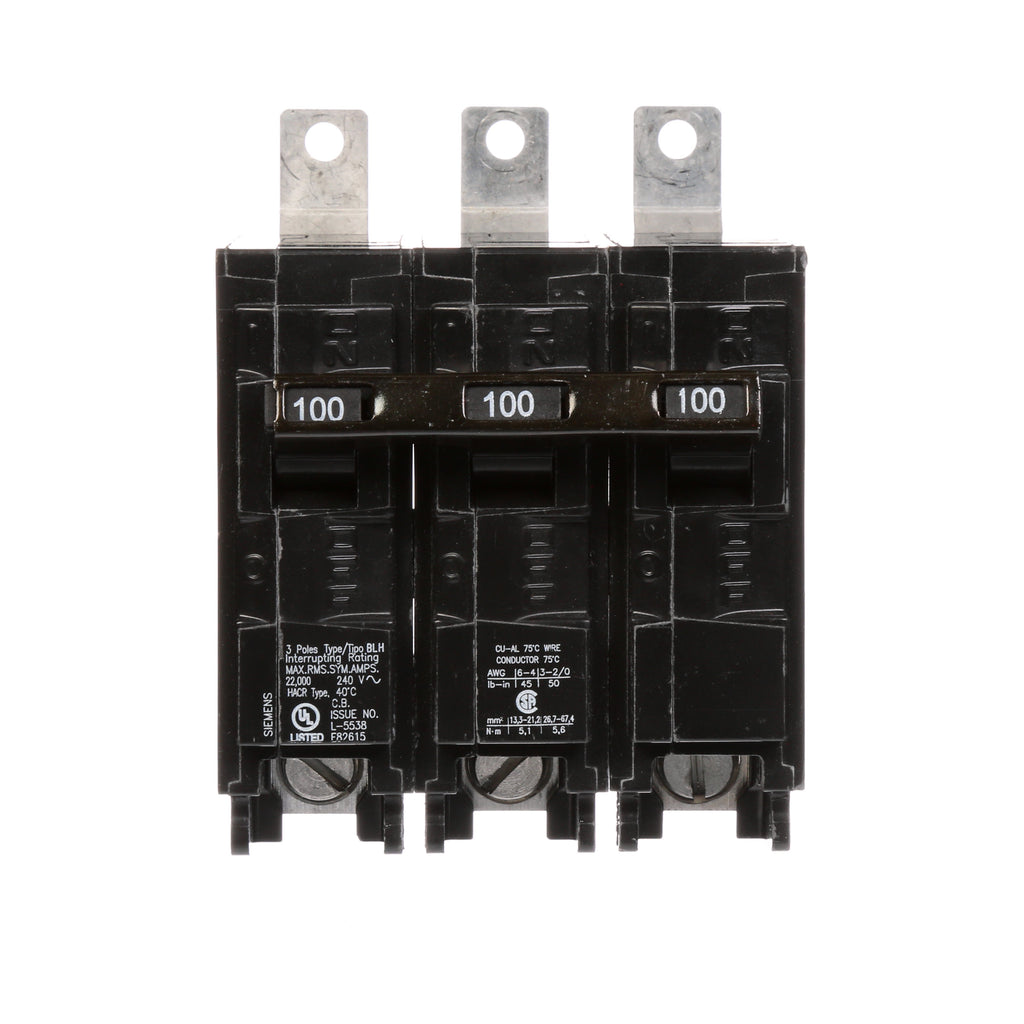

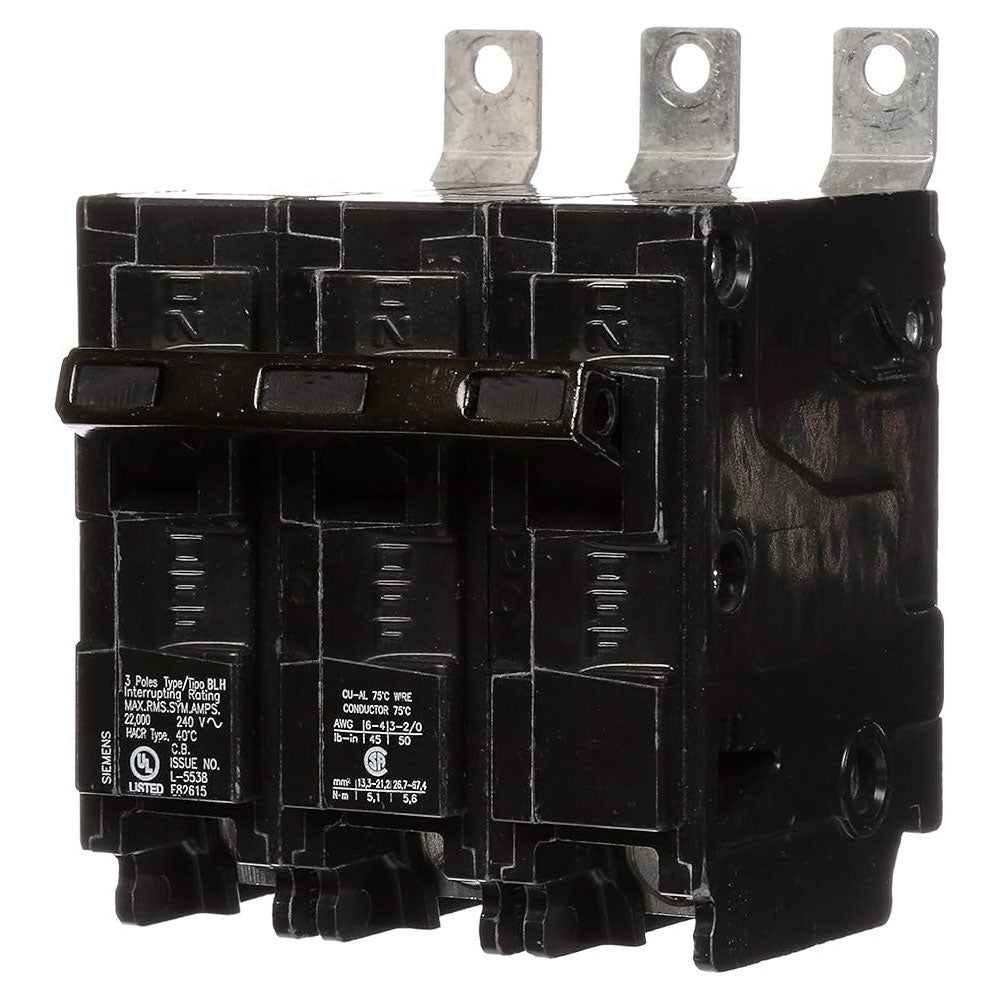

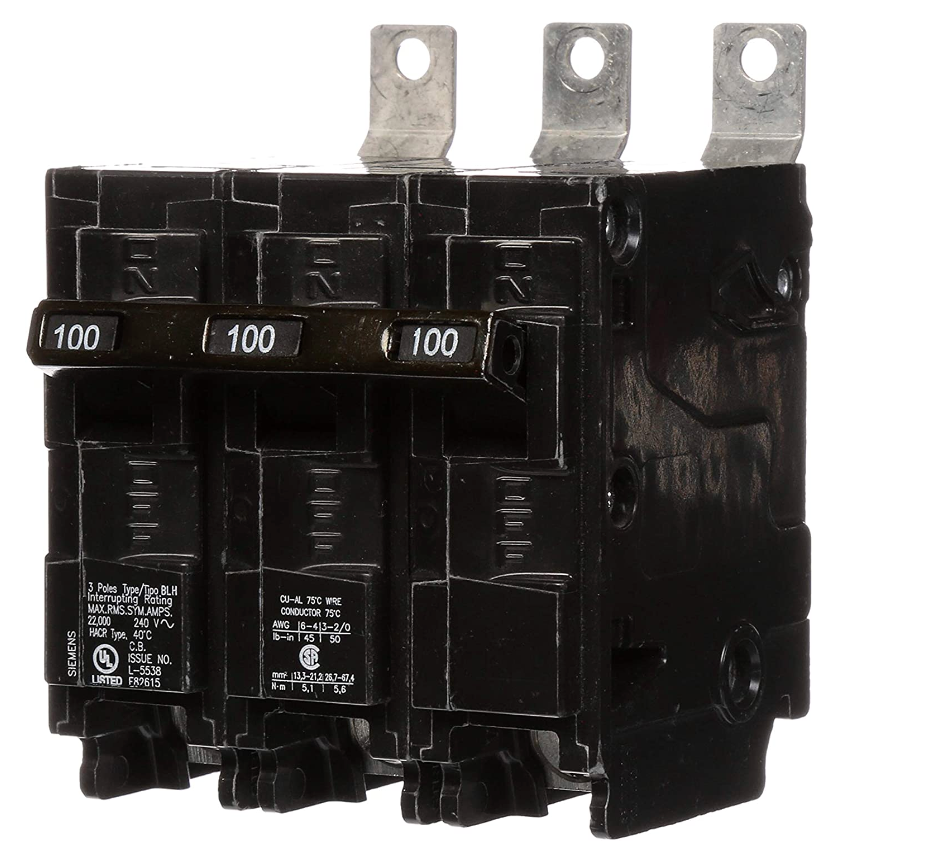

B3100H - Siemens 100 Amp 240 Volt 3 Pole Bolt-On Molded Case Circuit Breaker, 22kA Interrupt Rating

B3100H

B3100H is a Siemens 3 pole molded case circuit breaker with a 100 amp rating and 240 VAC voltage designed for bolt-on mounting.This circuit breaker features a thermal magnetic trip unit, a 22 kA interrupt rating, and is part of the Siemens BLH series. It is UL Listed, CSA Certified, HACR Rated, and NOM Certified, ensuring compliance with key safety standards. The breaker is suitable for 3-phase applications and provides reliable protection in industrial and commercial electrical systems.

Key Specifications
• Amperage: 100A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Series/Frame: BLH
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, HACR Rated, NOM Certified
• Phase: 3
• UPC: 783643264076
• GTIN: 783643264076

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B3100H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264076
• GTIN : 00783643264076
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
