B315H00S01 - Siemens 15A 3 Pole 240V Bolt-On Molded Case Circuit Breaker, 22kA Interrupt Rating

B315H00S01

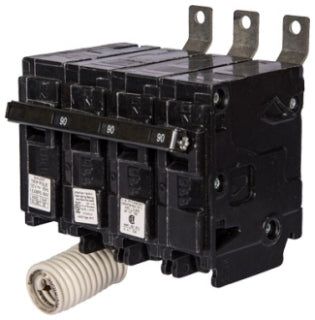

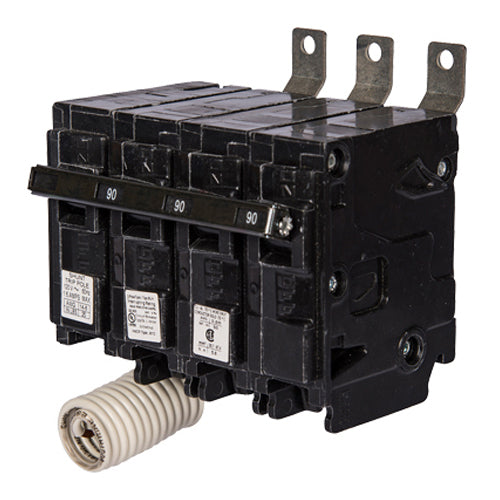

B315H00S01 is a Siemens 15 Amp, 3 Pole, 240 Volt bolt-on molded case circuit breaker designed for reliable circuit protection.This Siemens B315H00S01 breaker features a thermal magnetic trip unit, a 22kA interrupt rating at 240V AC, and is designed for panelboard mounting with busbar line-side and lug load-side terminations. It belongs to the Siemens B-frame series and is suitable for use in low voltage power distribution applications.

• Amperage: 15A
• Voltage Rating: 120/240V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA at 240V AC
• Trip Unit: Thermal Magnetic
• Frame/Series: B-Frame
• Line Side Termination: Busbar
• Load Side Termination: Lug (included)
• Actuator Type: Toggle
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B315H00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268906
• GTIN : 00783643268906
• Country of Origin : Mexico
• Dimensions : 10.63 x 8.661 x 3.937 inch
• Weight : 2.998
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
