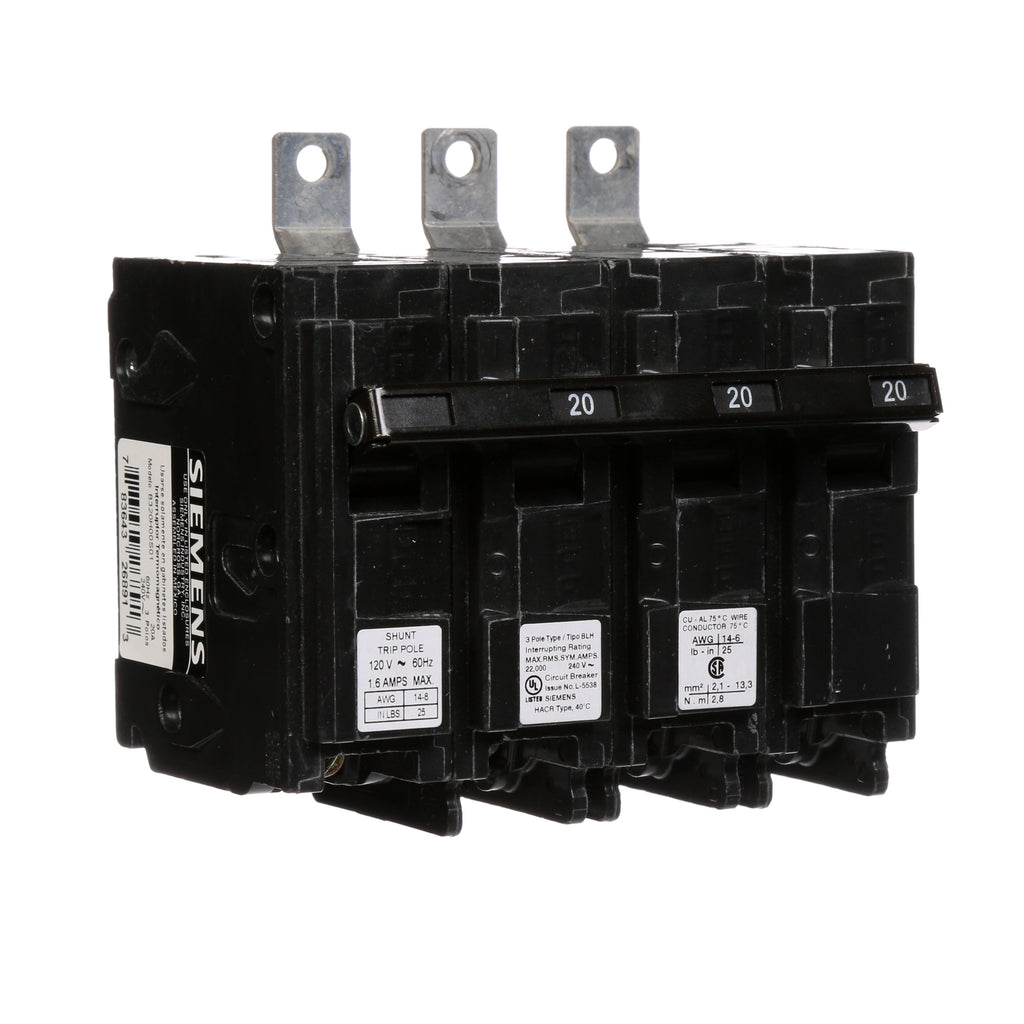

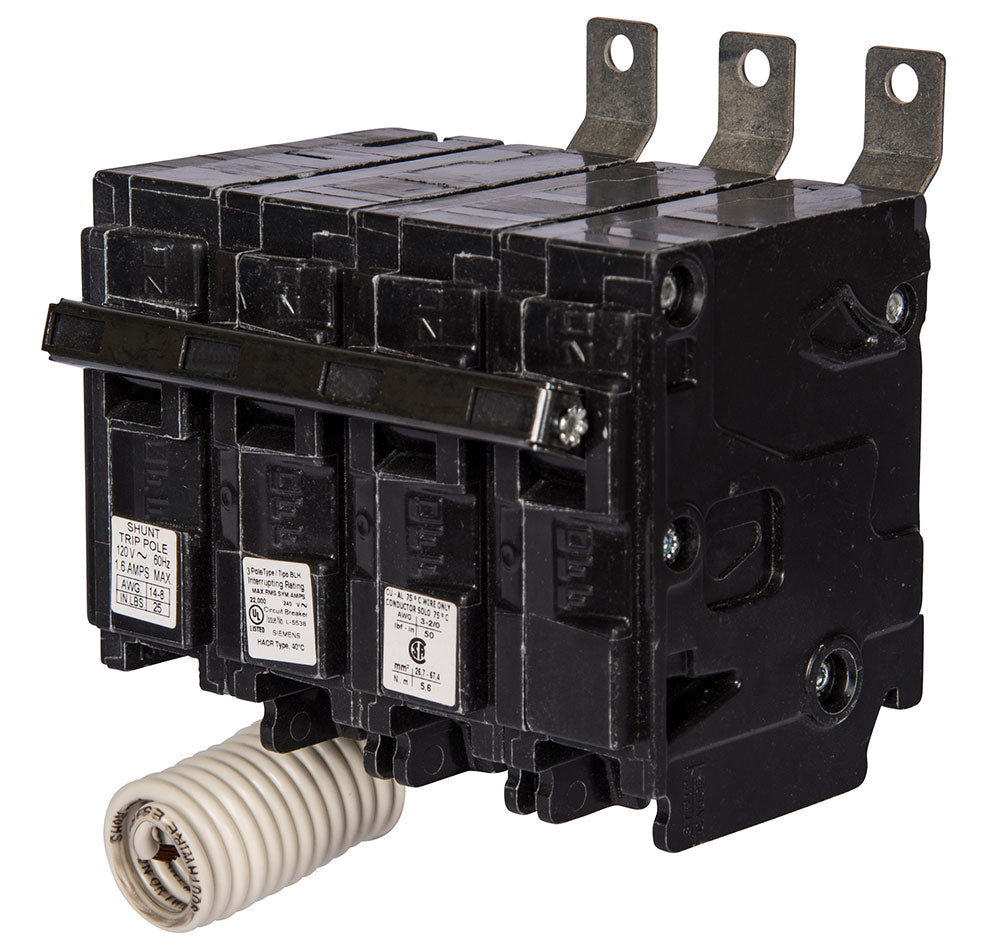

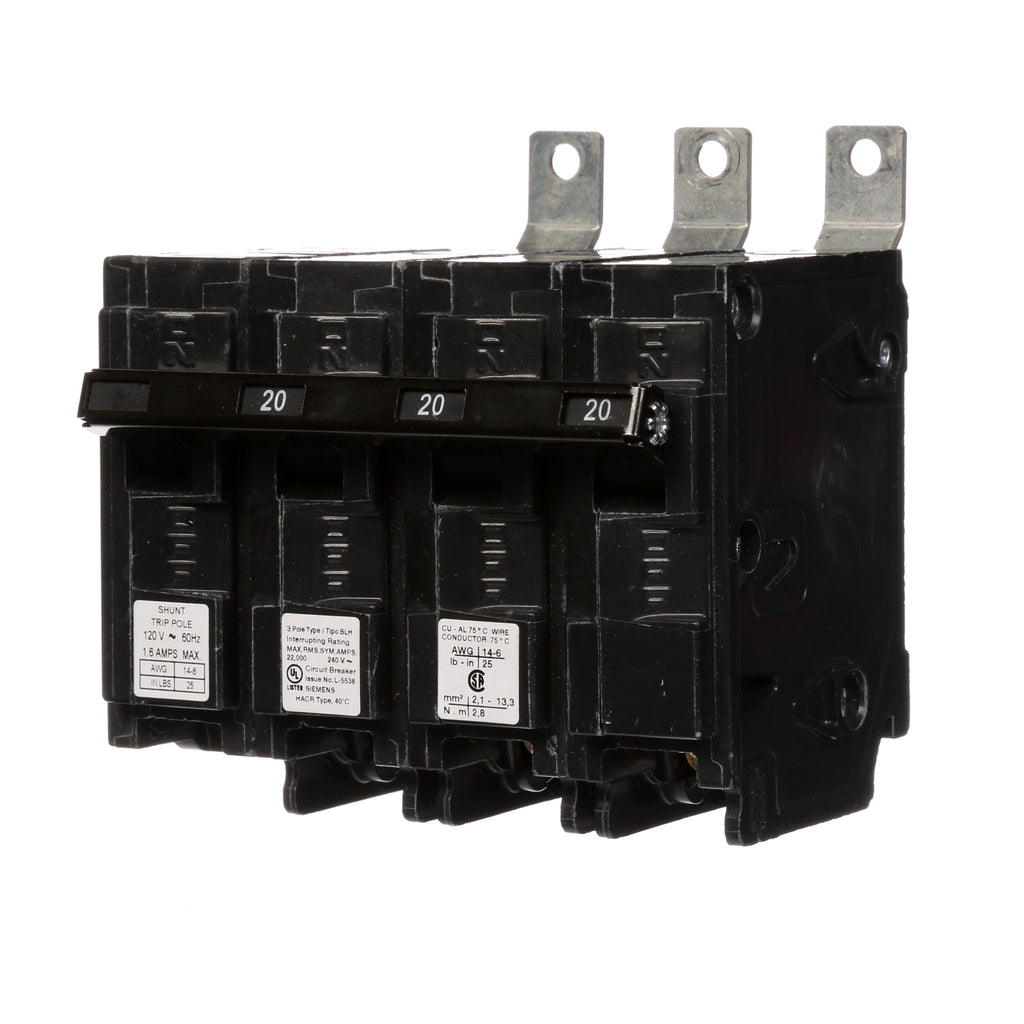

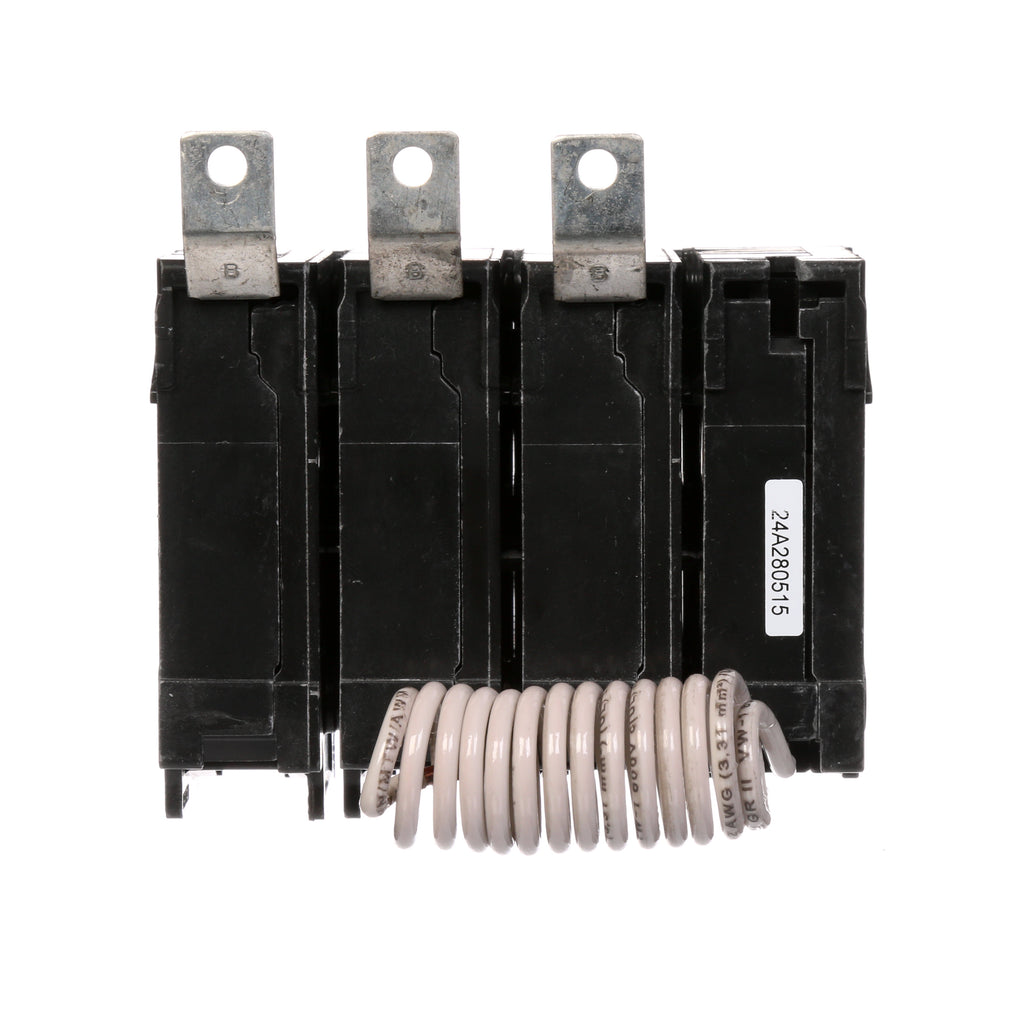

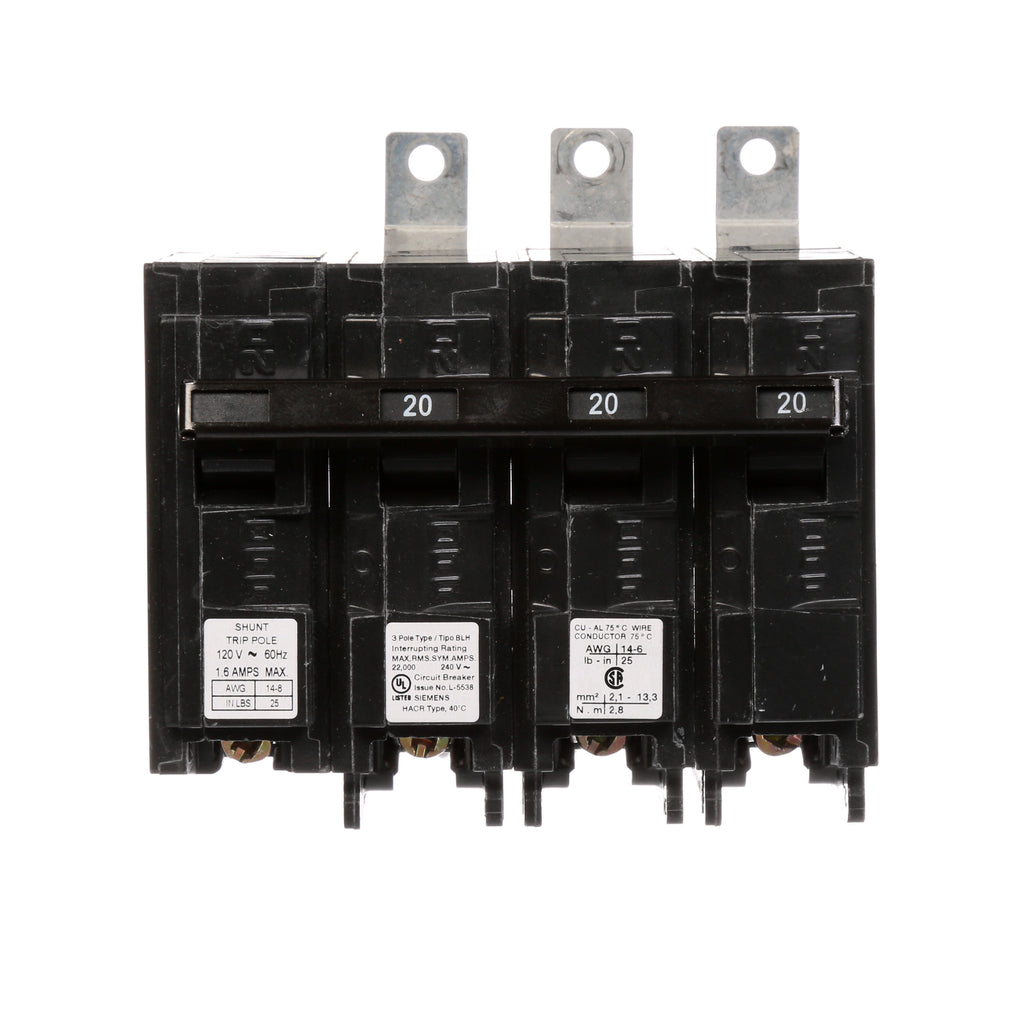

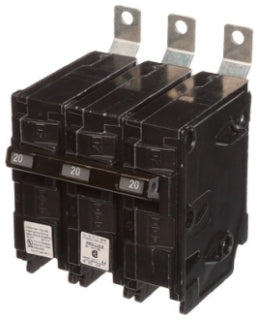

B320H00S01 - Siemens 20A 240V 3-Pole Type BLH Molded Case Circuit Breaker Shunt/Thermal Magnetic Trip

B320H00S01

B320H00S01 is a Siemens Type BLH low voltage molded case circuit breaker designed for reliable electrical distribution protection. B320H00S01 features a 20 ampere rating, 120/240 VAC voltage, and 3 poles with a shunt/thermal magnetic trip unit. It supports panelboard mounting and has a 22 kA interrupt rating, suitable for various industrial and commercial applications. Certified to UL 489 and HACR standards, this breaker ensures safety and compliance.

Key Specifications
• Amperage: 20 A
• Voltage: 120/240 VAC
• Poles: 3
• Mounting Type: Panelboard
• Interrupt Rating: 22 kA
• Series/Frame: Type BLH
• Trip Unit: Shunt/Thermal Magnetic
• Certifications: UL 489, HACR Rated
• Wire Range: 14 to 10 AWG
• Application: Electrical Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B320H00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268913
• GTIN : 00783643268913
• Country of Origin : Mexico
• Dimensions : 2.563 x 4.00 x 3.122 inch
• Weight : 1.257
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
