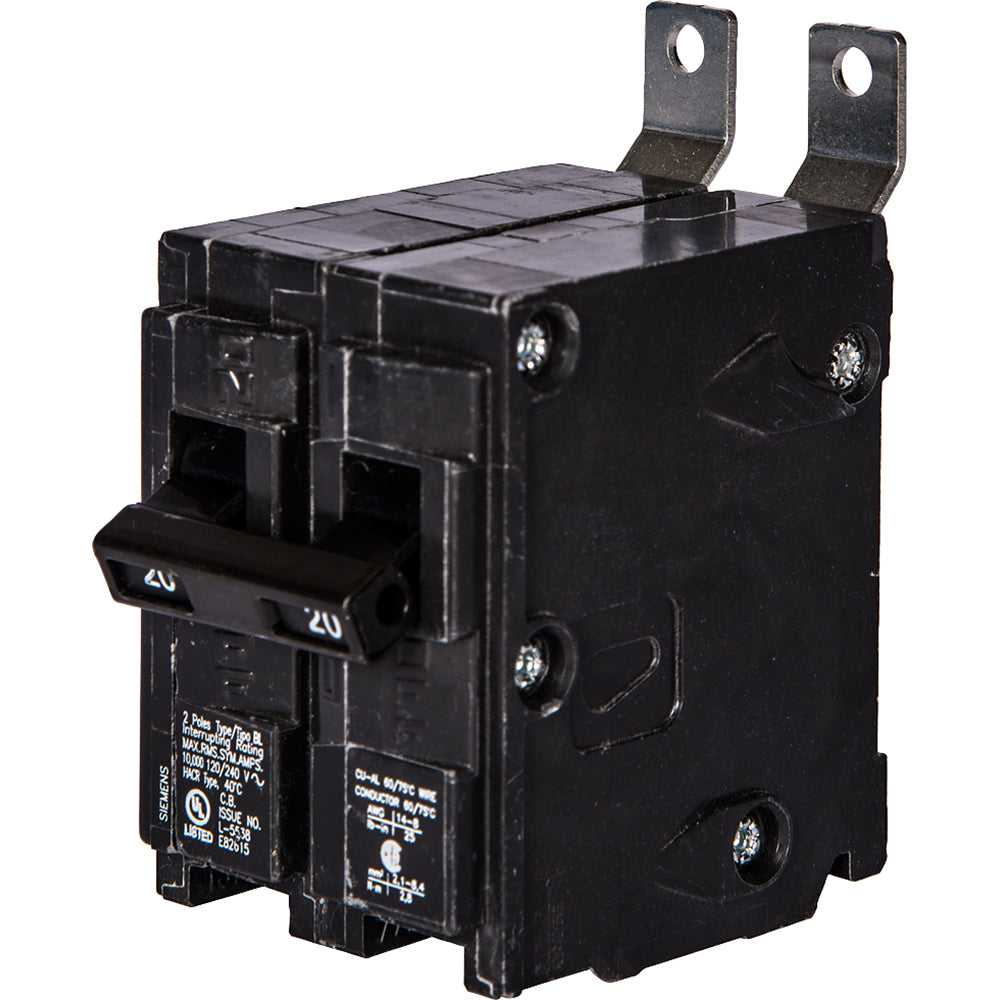

B220AFCH - Siemens Bolt-On 240V 20A 2 pole circuit breaker 22kA@120V - Essential Electric Supply
Hover to zoom
B220AFCH - Siemens Bolt-On 240V 20A 2 pole circuit breaker 22kA@120V - Essential Electric Supply

Reference images. Contact us for photos of the available unit.


Siemens

B220AFCH

Siemens 20A 2 Pole 120/240VAC Arc Fault Circuit Breaker 22kA Interrupt Bolt-On

Current: 20Poles: 2Voltage: 240VConnection: Bolt-On
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$249.87 $2,519.00
Save $2,269.13
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Siemens
Sub-Category
Molded Case
Series
BL Series
Frame
BAFH
Rated current
20
Voltage
240V
Poles
2
Phases
1
Interrupting rating
22kA@120V
Trip functions
Long Time and Instantaneous Trip
Protection
Thermal Magnetic
Connection
Bolt-On
Panel / equipment
Siemens P1 Panelboards
Breaker type
AFCI
Standards
CSA Certified, HACR Rated, NOM Certified, UL Listed
Country of origin
Philippines
Show all specifications (6 more)
Temp Rating
-13°F to 158°F (-25°C to 70°C)
UPC
040892150711
GTIN
00040892150711
Dimensions
12.598 x 3.15 x 3.15 inch
Weight
0.728
Certification
CSA Certified, HACR Rated, NOM Certified, UL Listed
Product description & additional details

B220AFCH


B220AFCH - Siemens 2-pole 20A AFCI molded case circuit breaker for panelboard mounting in electrical distribution systems.This Siemens B220AFCH is a Type BAFH plug-in circuit breaker with CAFCL special features, rated for 120/240V AC operation and 22kA interrupt rating. It provides arc fault protection in a compact design with composite enclosure material.
  • Poles: 2
  • Amperage: 20A
  • Voltage: 120/240V AC
  • Interrupt Rating: 22kA
  • Mounting: Plug-in
  • Type: BAFH AFCI
  • Special Feature: CAFCL
  • Standard: UL 489
  • Application: Electrical Distribution
  • Width: 2 in
  • Height: 3.5 in
  • Depth: 3 in
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: B220AFCH
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : BL Series
  • Type : BAFH
  • Voltage : 240
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 22kA@120V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Temp Rating : -13°F to 158°F (-25°C to 70°C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 040892150711
  • GTIN : 00040892150711
  • Country of Origin : Philippines
  • Dimensions : 12.598 x 3.15 x 3.15 inch
  • Weight : 0.728
  • Panel Type : Siemens P1 Panelboards
  • Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed

Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
