Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B115HID

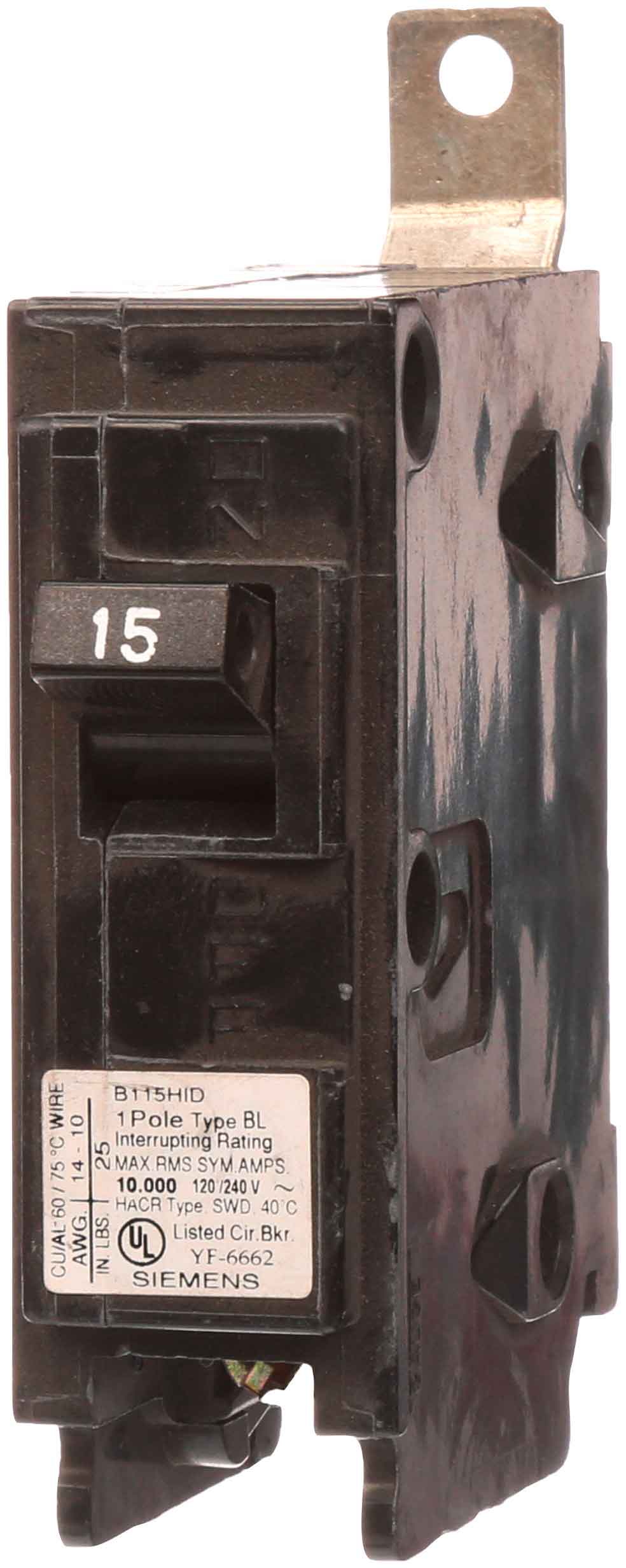

B115HID is a Siemens 15 Amp, 120 Volt, 1-Pole molded case circuit breaker from the BL Series with bolt-on mounting.This Siemens B115HID circuit breaker features a fixed thermal magnetic trip unit designed for reliable protection in commercial applications. It has a 10 kA interrupt rating at 120 volts AC, suitable for panel board mounting with load lug-in/lug-out terminals. The breaker supports wire sizes 14-10 AWG copper and 12-10 AWG aluminum, and is UL Listed, CSA Certified, NOM Certified, and HACR Rated.
- Key Specifications
- Amperage: 15 A
- Voltage: 120 V AC
- Number of Poles: 1
- Series/Frame: BL Series
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kA
- Trip Unit: Fixed Thermal Magnetic
- Terminal Type: Load Lug-In/Lug-Out
- Wire Size: 14-10 AWG Copper, 12-10 AWG Aluminum
- Certifications: UL Listed, CSA Certified, NOM Certified, HACR Rated
- Part Number: B115HID
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 783643274709
- GTIN : 00783643274709
- Country of Origin : Mexico
- Dimensions : 2.756 x 2.756 x 0.787 inch
- Weight : 0.309
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
