Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B11500S01

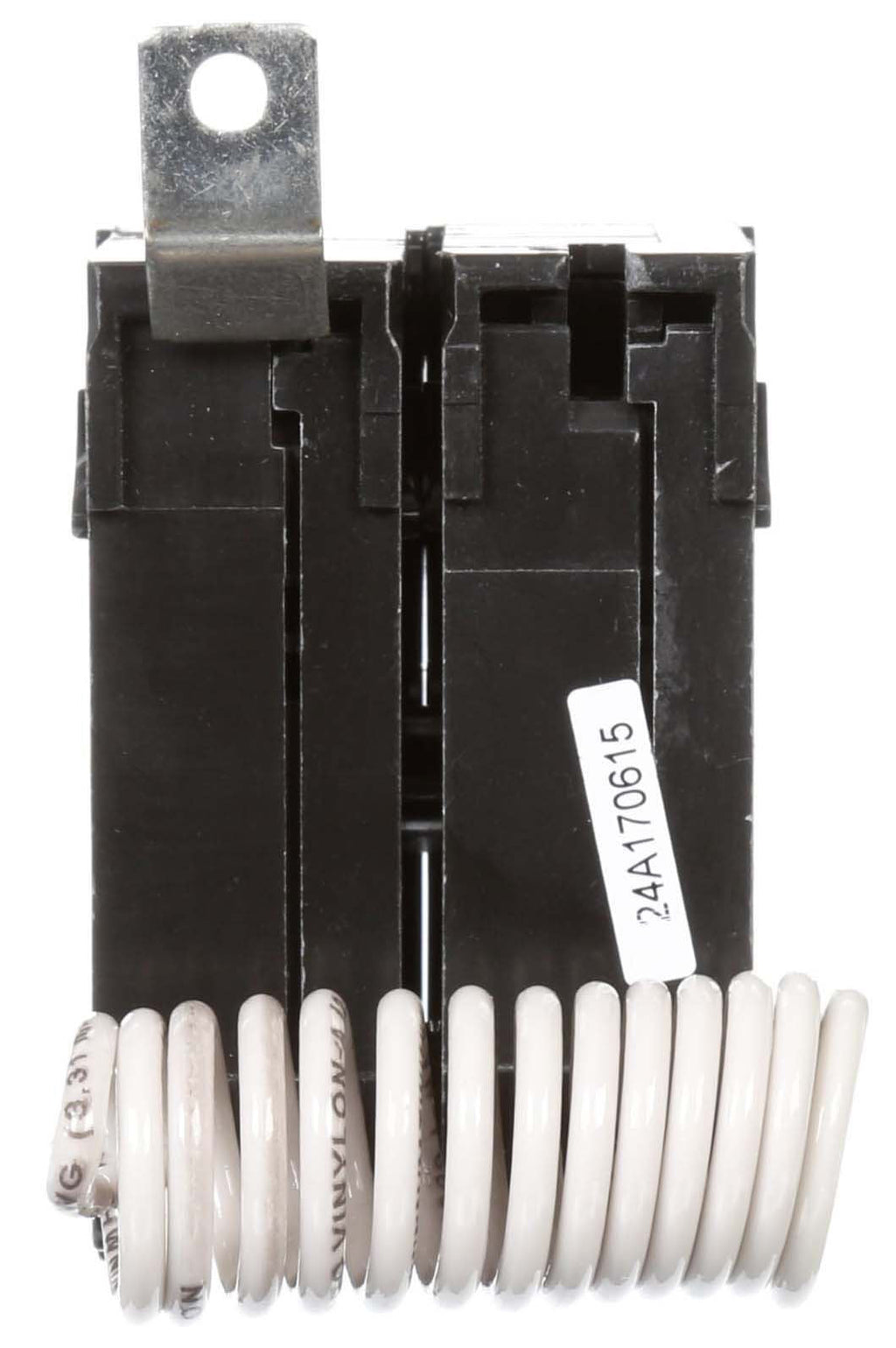

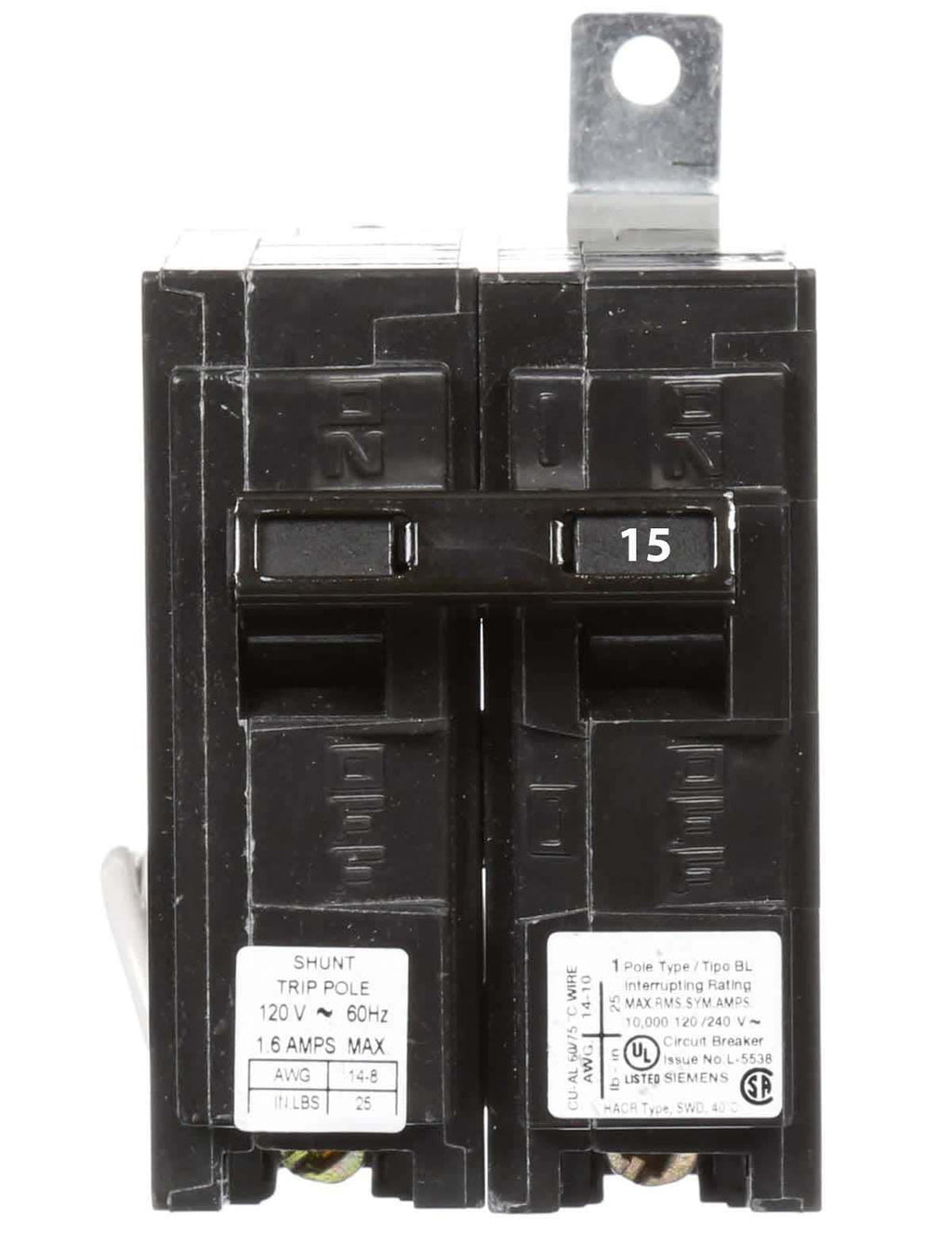

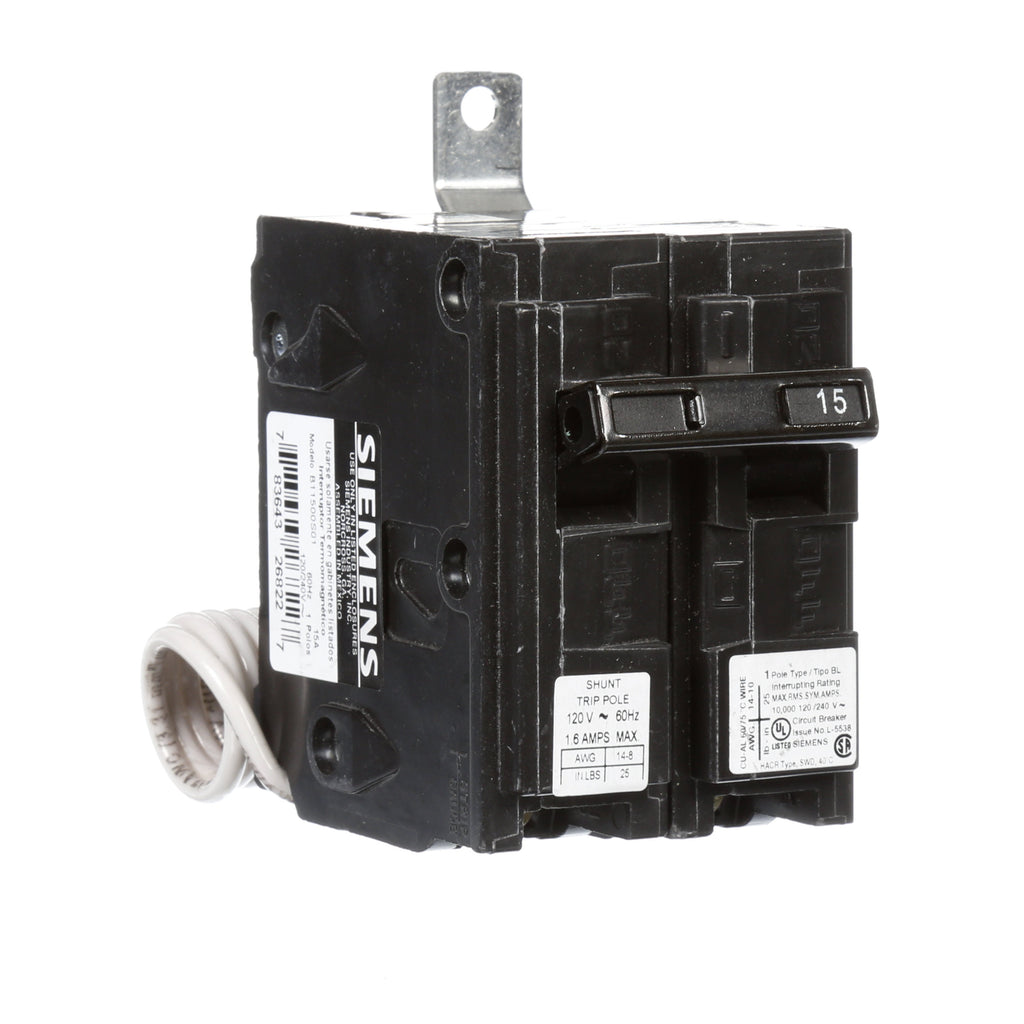

B11500S01 is a Siemens 15 Amp, 1 Pole, 120/240 Volt bolt-on molded case circuit breaker from the BL series.This circuit breaker features a thermal magnetic trip unit providing reliable overload and short circuit protection. It has a 10kA interrupt rating at 240VAC and is designed for panel mounting with bolt-on installation. The breaker frame type is ED, and it includes busbar line side and lug load side terminations.
- Key Specifications
- Amperage: 15 Amps
- Voltage Rating: 120/240 VAC
- Number of Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 240VAC
- Series/Frame: BL / ED Frame
- Trip Unit: Thermal Magnetic
- Line Side Termination: Busbar
- Load Side Termination: Lug (Included)
- Protection: Overload and Short Circuit
Specifications
- Part Number: B11500S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643268227
- GTIN : 00783643268227
- Country of Origin : Mexico
- Dimensions : 2.571 x 2.00 x 2.89 inch
- Weight : 0.617
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
