B120HH - Siemens 20 Amp 120/240V 1 Pole Bolt-On Circuit Breaker, 65kA Interrupt Rating, BL Series

B120HH

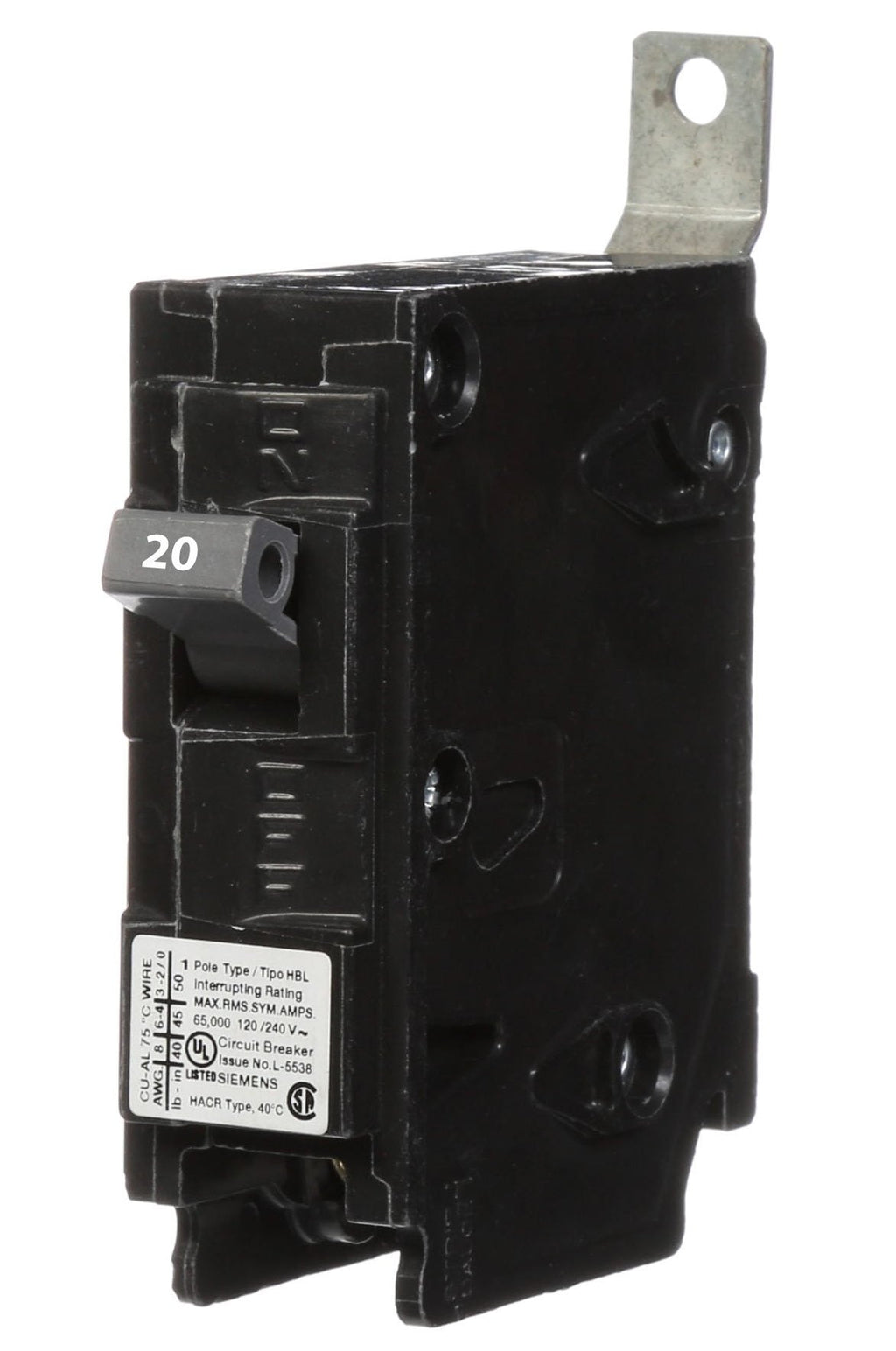

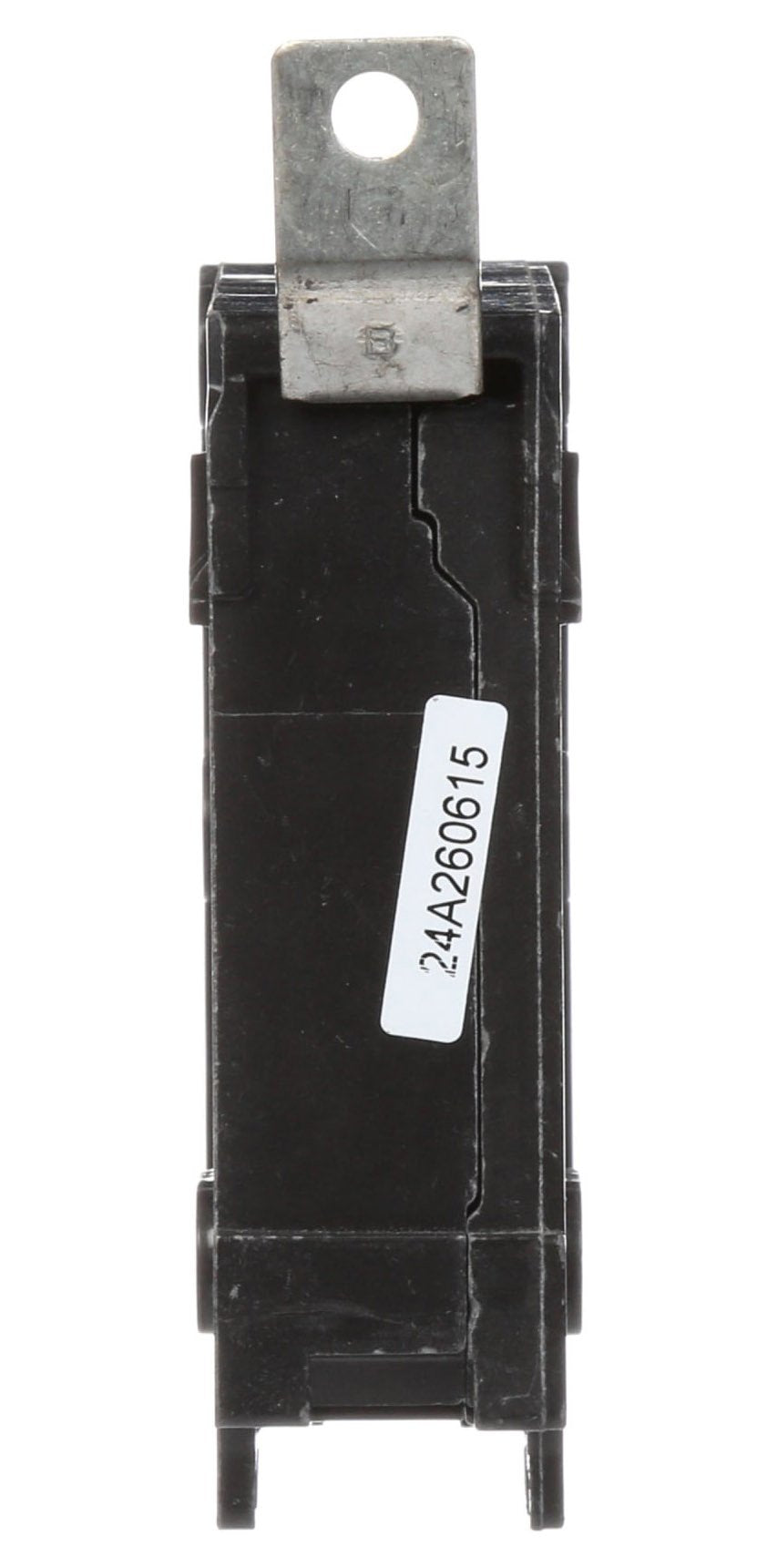

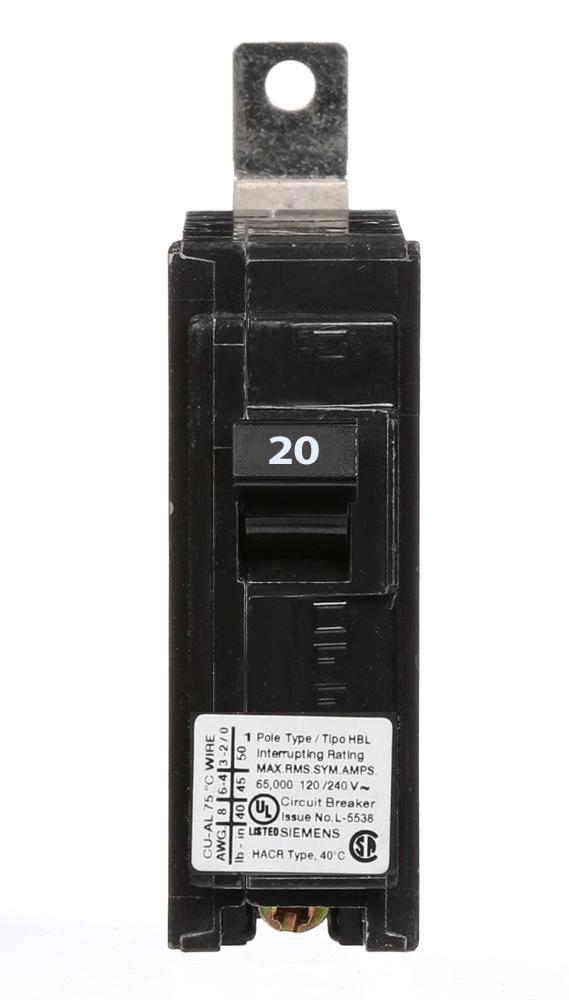

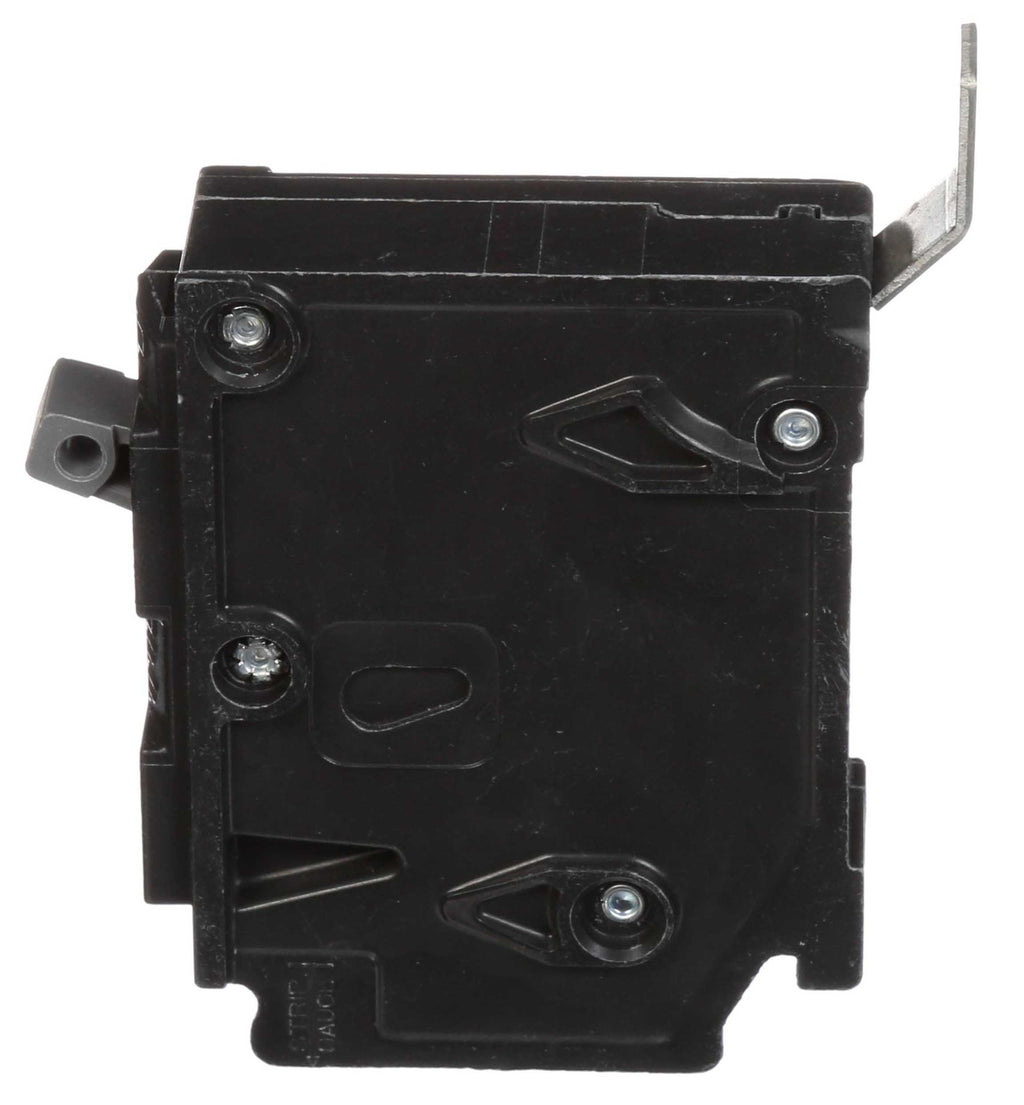

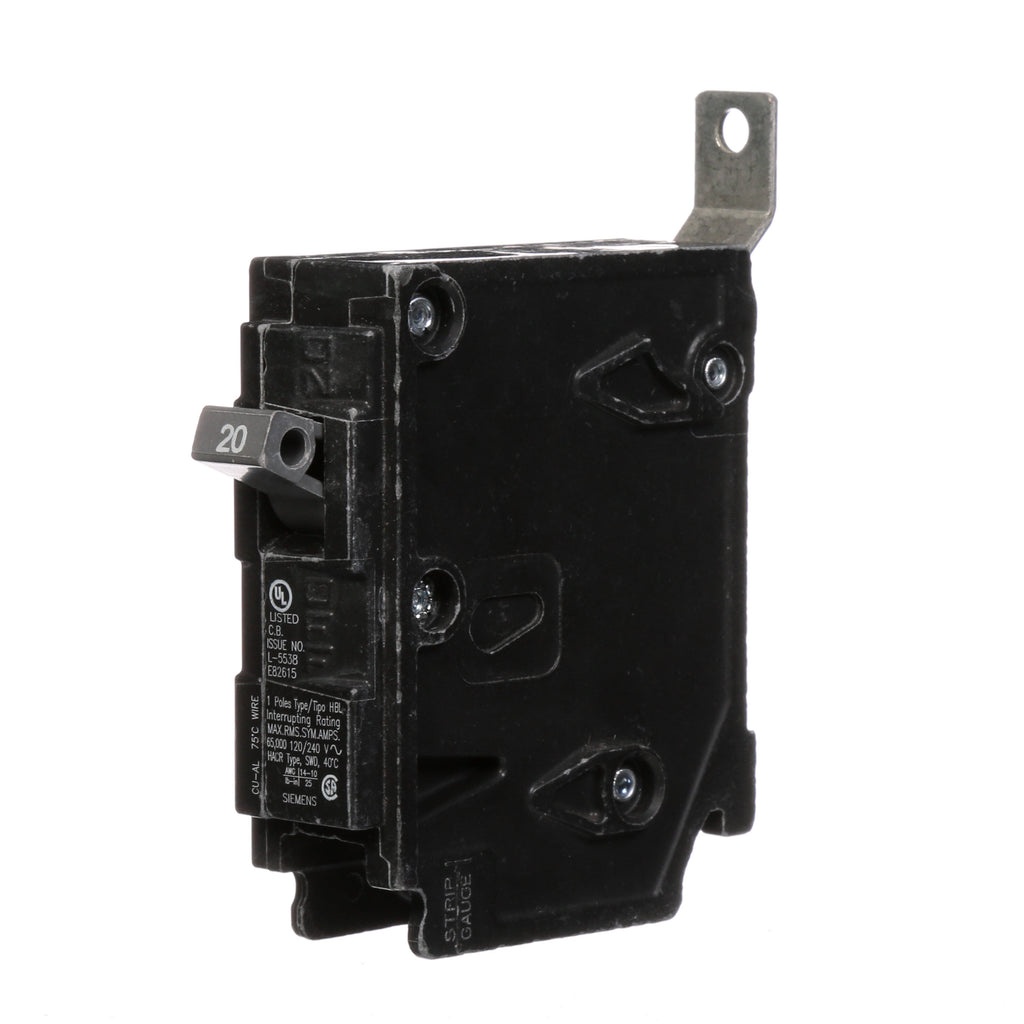

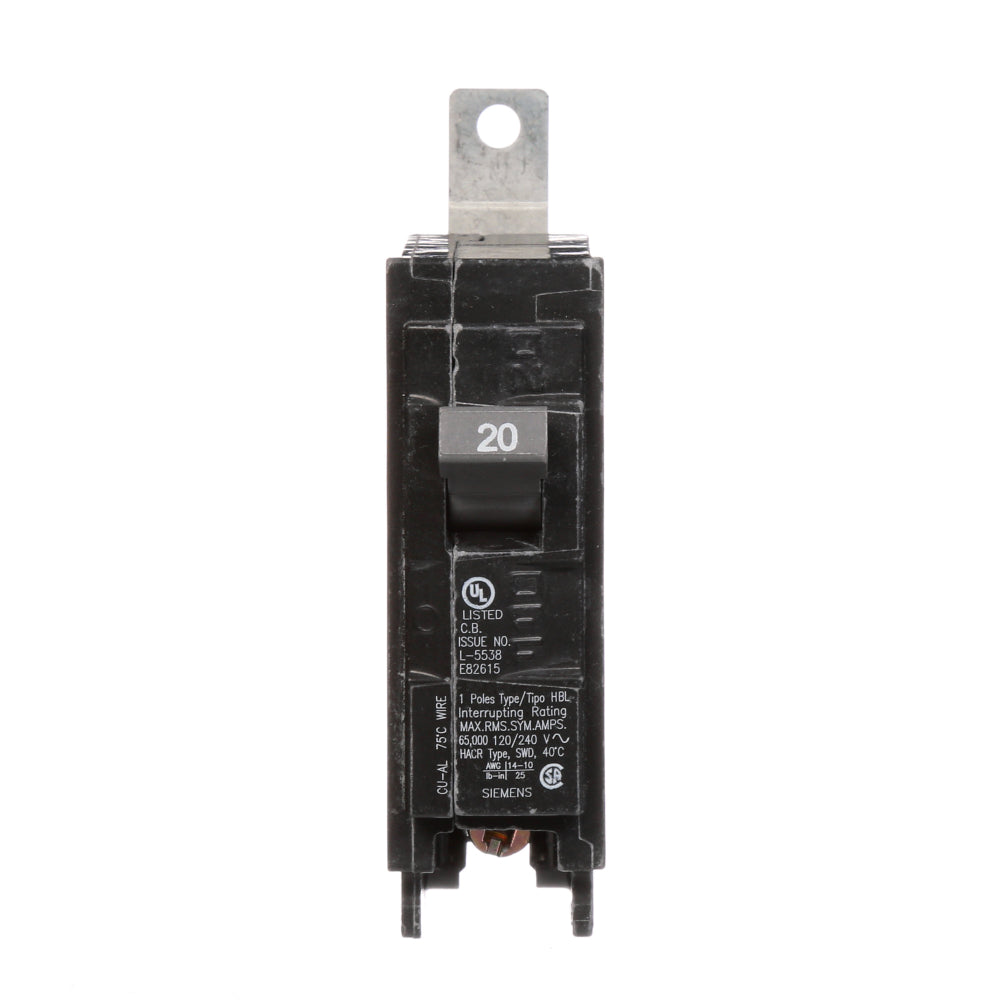

B120HH is a 1-pole thermal magnetic molded case circuit breaker from Siemens designed for electrical distribution and panelboard mounting applications. This bolt-on circuit breaker provides reliable protection with long-time and instantaneous trip functions, making it suitable for standard circuit protection in residential and commercial electrical systems.Key Specifications

• Amperage: 20A
• Voltage Rating: 120/240VAC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 65kAIC at 120/240VAC
• Series: BL
• Trip Type: Thermal Magnetic
• Wire Size: 12 AWG (Al); 14 AWG (Cu) minimum, 10 AWG maximum
• Dimensions: 4 in (L) x 3 in (W) x 1 in (H)
• Certification: UL 489
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B120HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264090
• GTIN : 00783643264090
• Country of Origin : Mexico
• Dimensions : 2.563 x 1.00 x 3.122 inch
• Weight : 0.309
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Wire Size : 12-10 AWG (Aluminum) 14-10 AWG (Copper)
