B120HH00S01 - Siemens 1-Pole 20A 120/240V Shunt Trip Bolt-On Circuit Breaker HBL 65kA

B120HH00S01

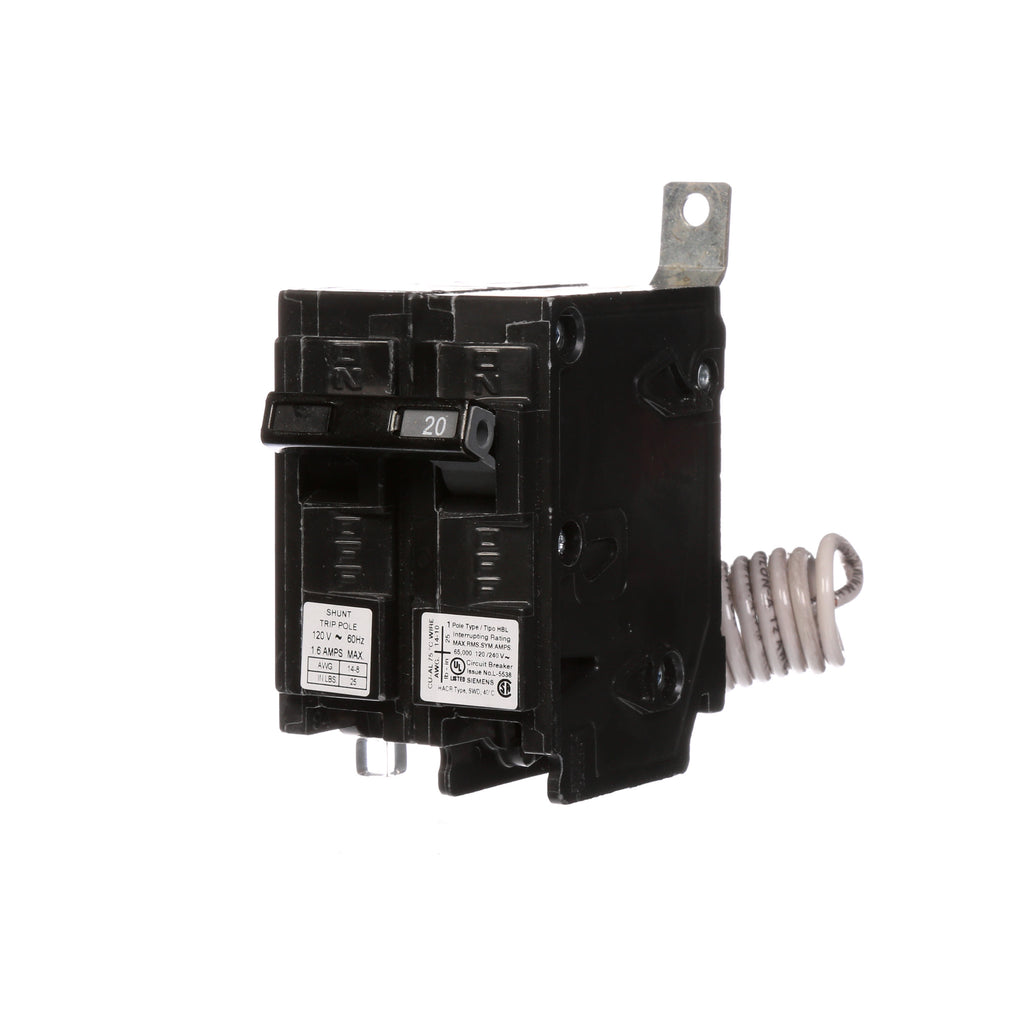

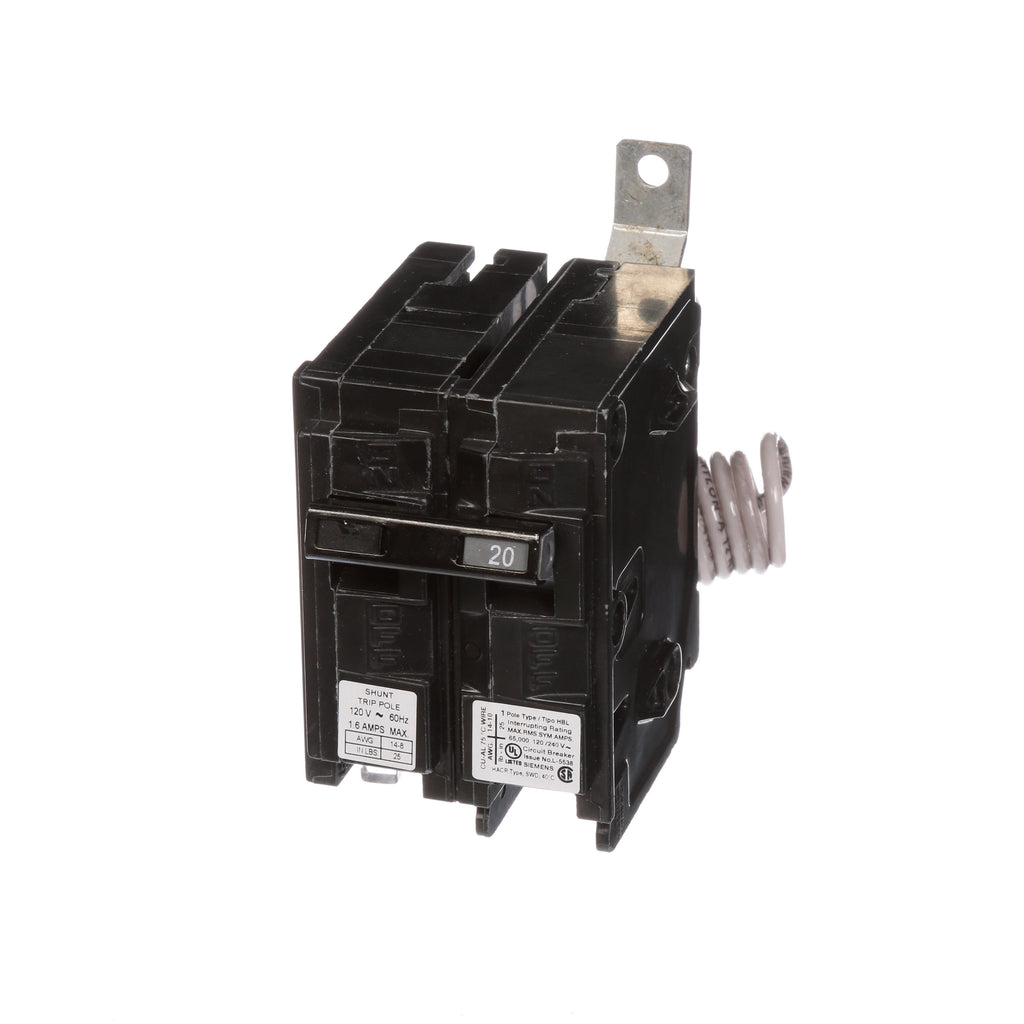

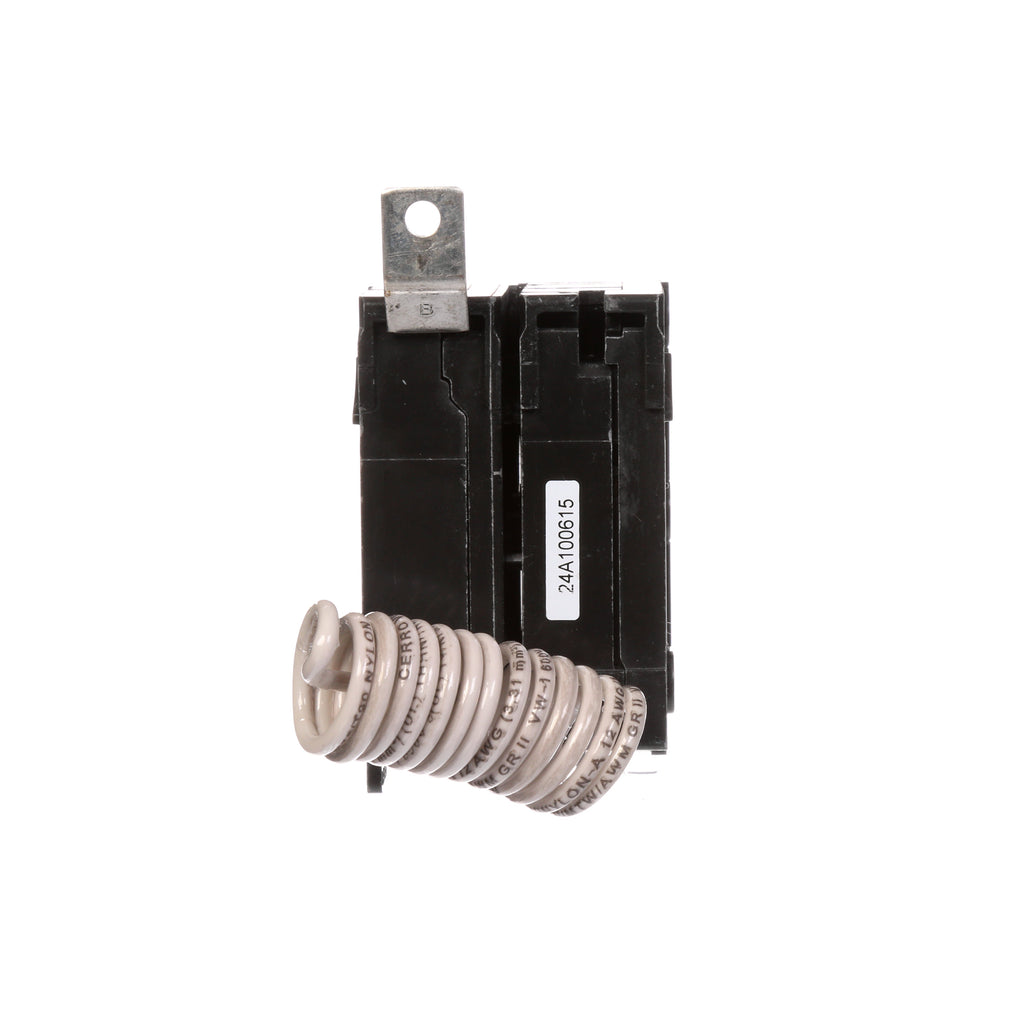

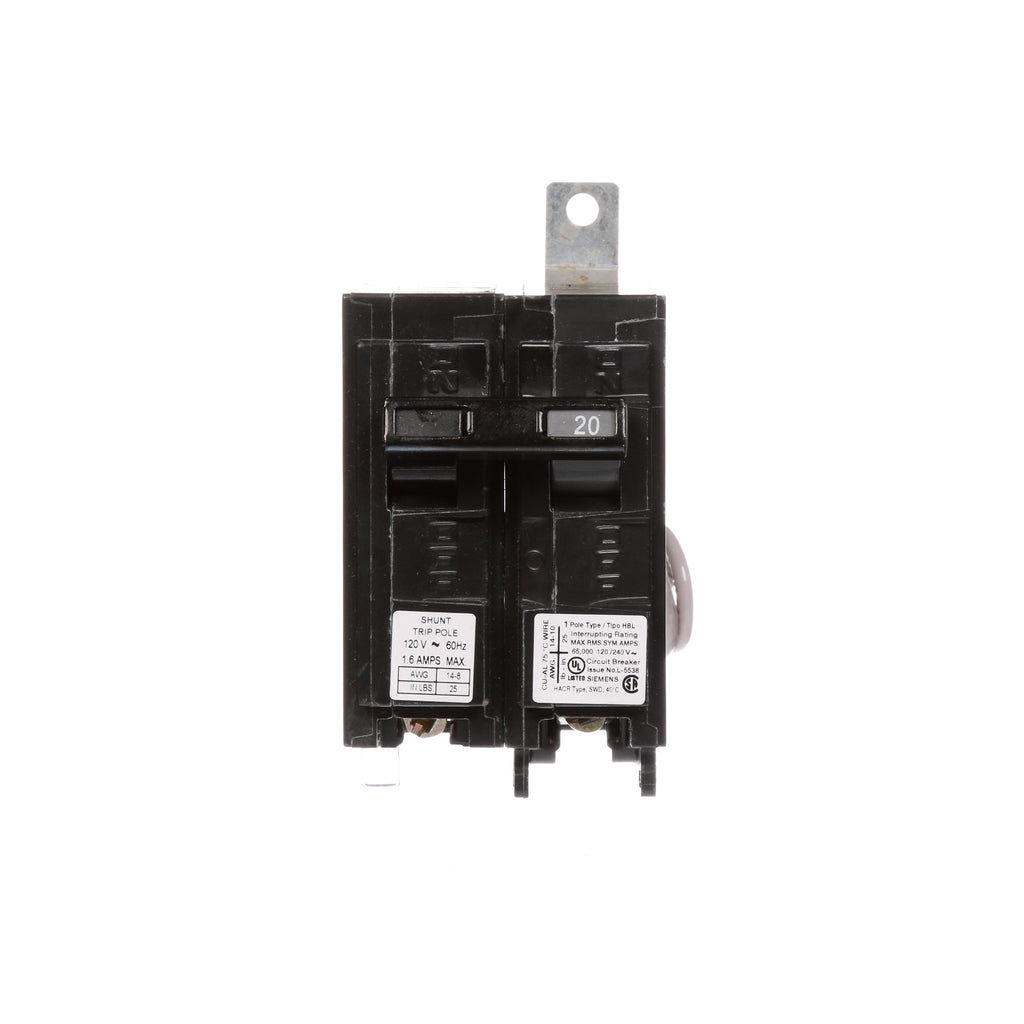

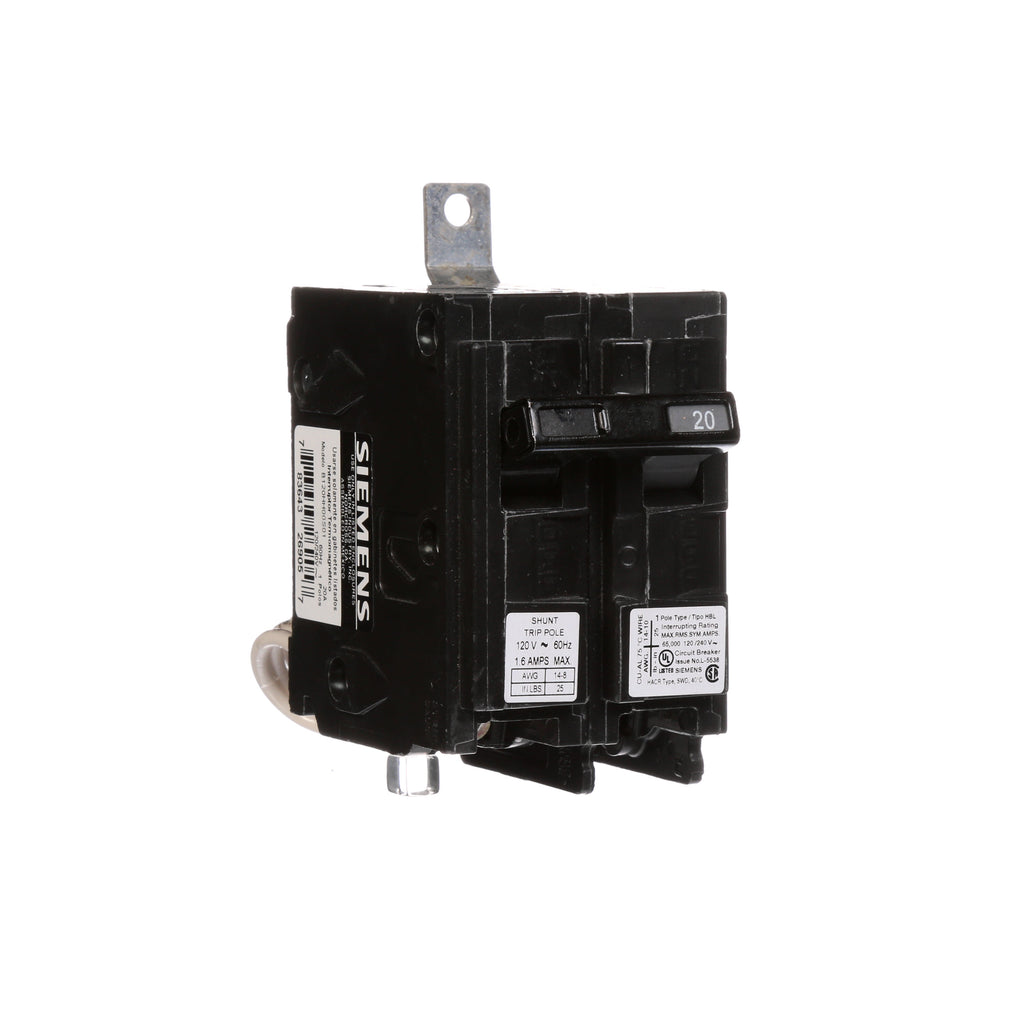

B120HH00S01 is a Siemens Type HBL molded case circuit breaker designed for single-pole protection with shunt trip capability.

This bolt-on circuit breaker features thermal magnetic trip technology and is rated for 120 VAC operation at 20 amperes. The breaker delivers a 65 kA interrupt rating, making it suitable for standard residential and light commercial applications. The shunt trip mechanism enables remote tripping functionality, commonly used in emergency shutdown systems and fire alarm circuits.

• Manufacturer: Siemens
• Part Number: B120HH00S01
• Type: HBL Molded Case Circuit Breaker
• Poles: 1
• Amperage: 20 A
• Voltage: 120 VAC
• Interrupt Rating: 65 kA
• Trip Unit: Thermal Magnetic with Shunt Trip
• Connection: Bolt-On
• Frequency: 60 Hz
• Phase: 1 Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B120HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 078364326905
• GTIN : 00783643269057
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.617
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
