Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B125HH

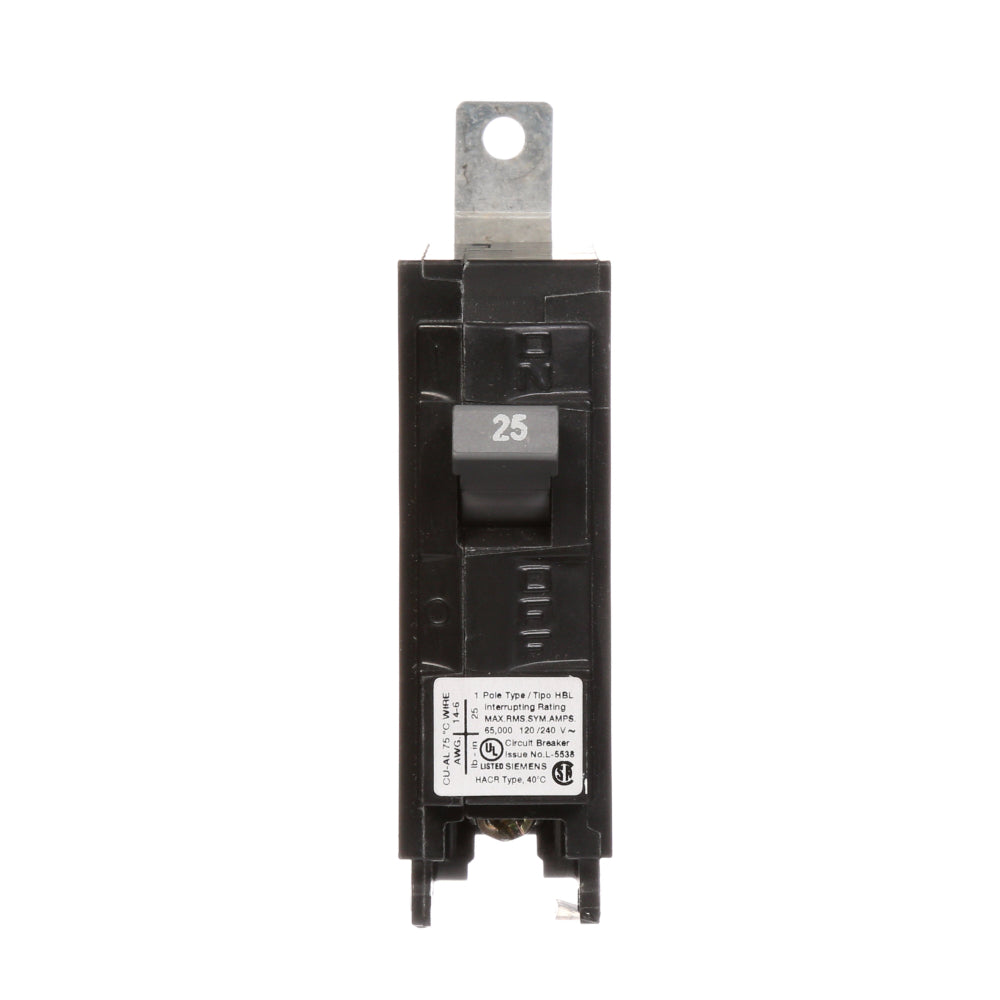

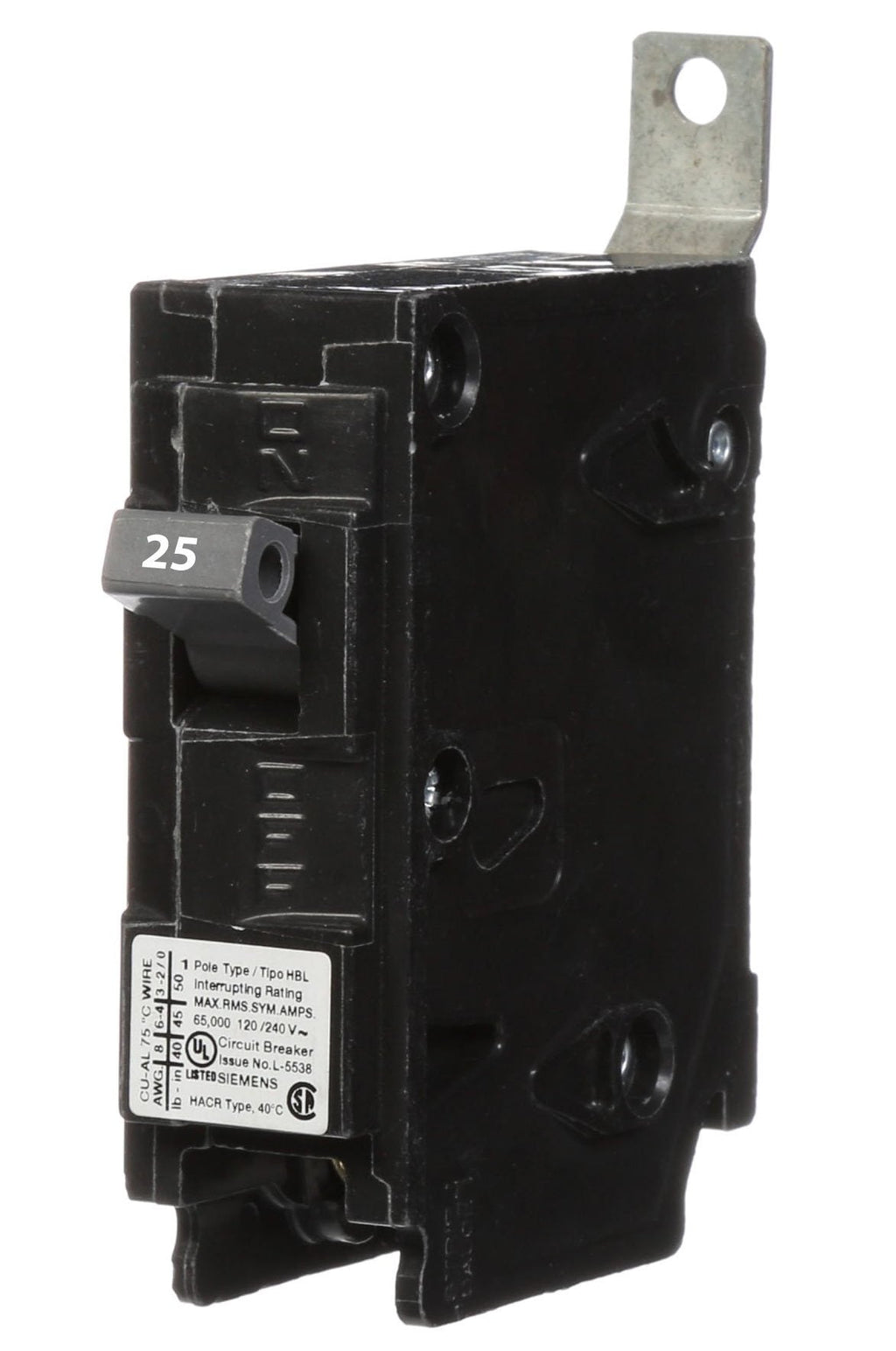

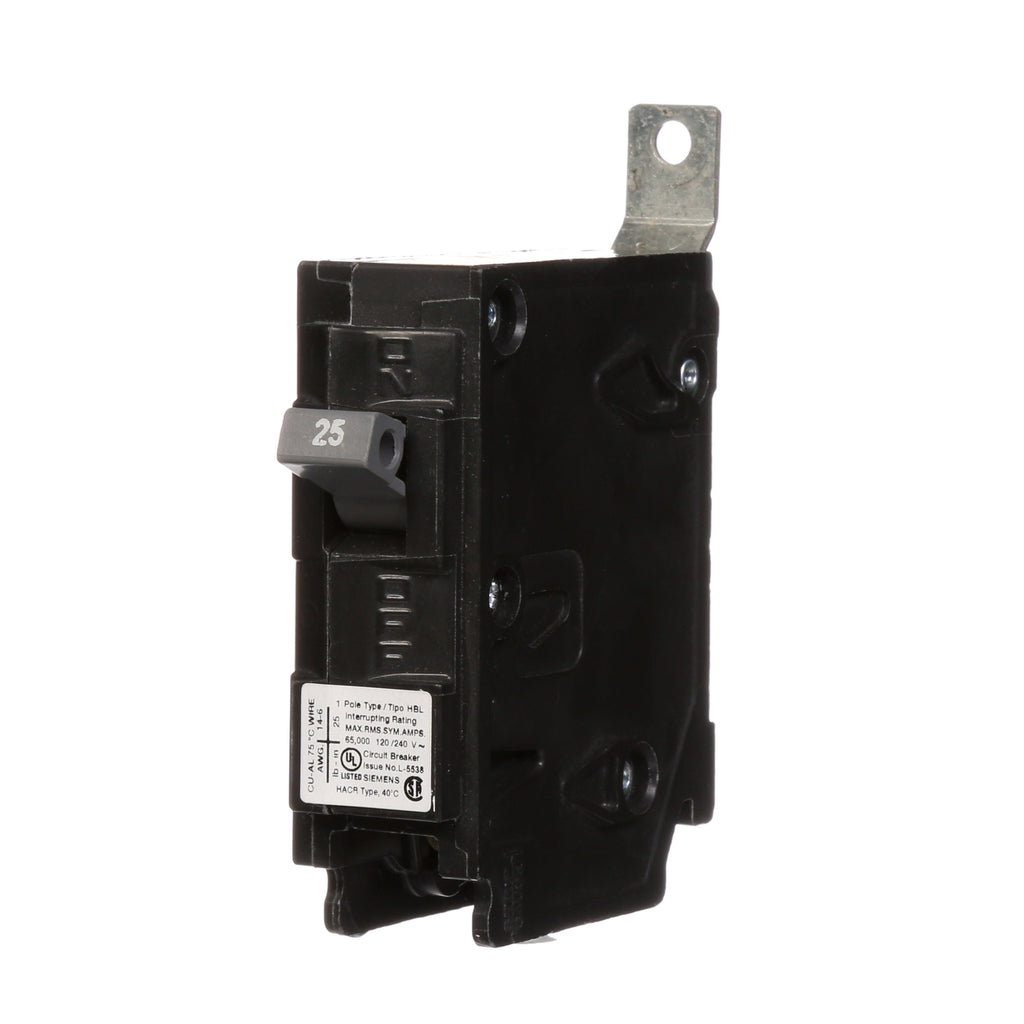

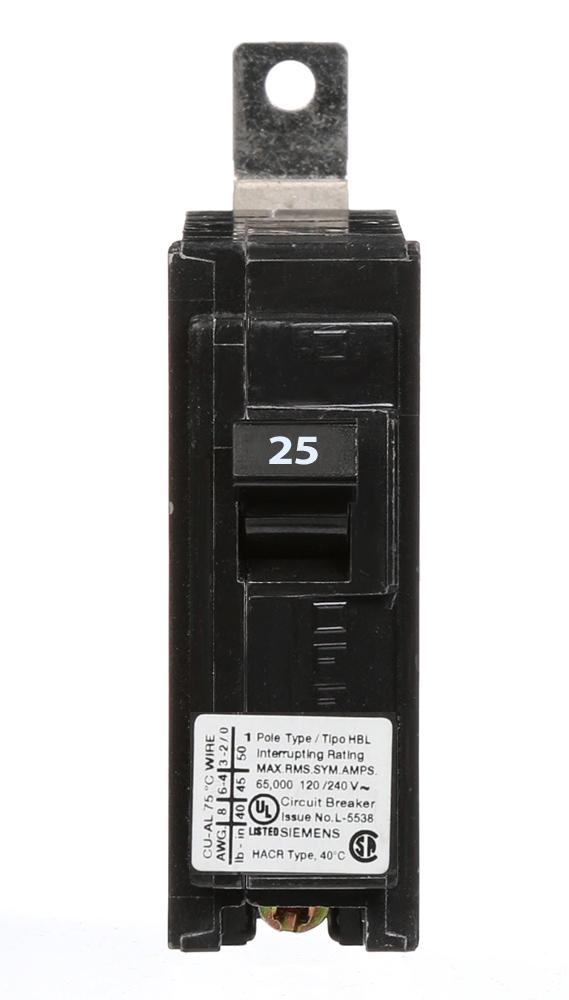

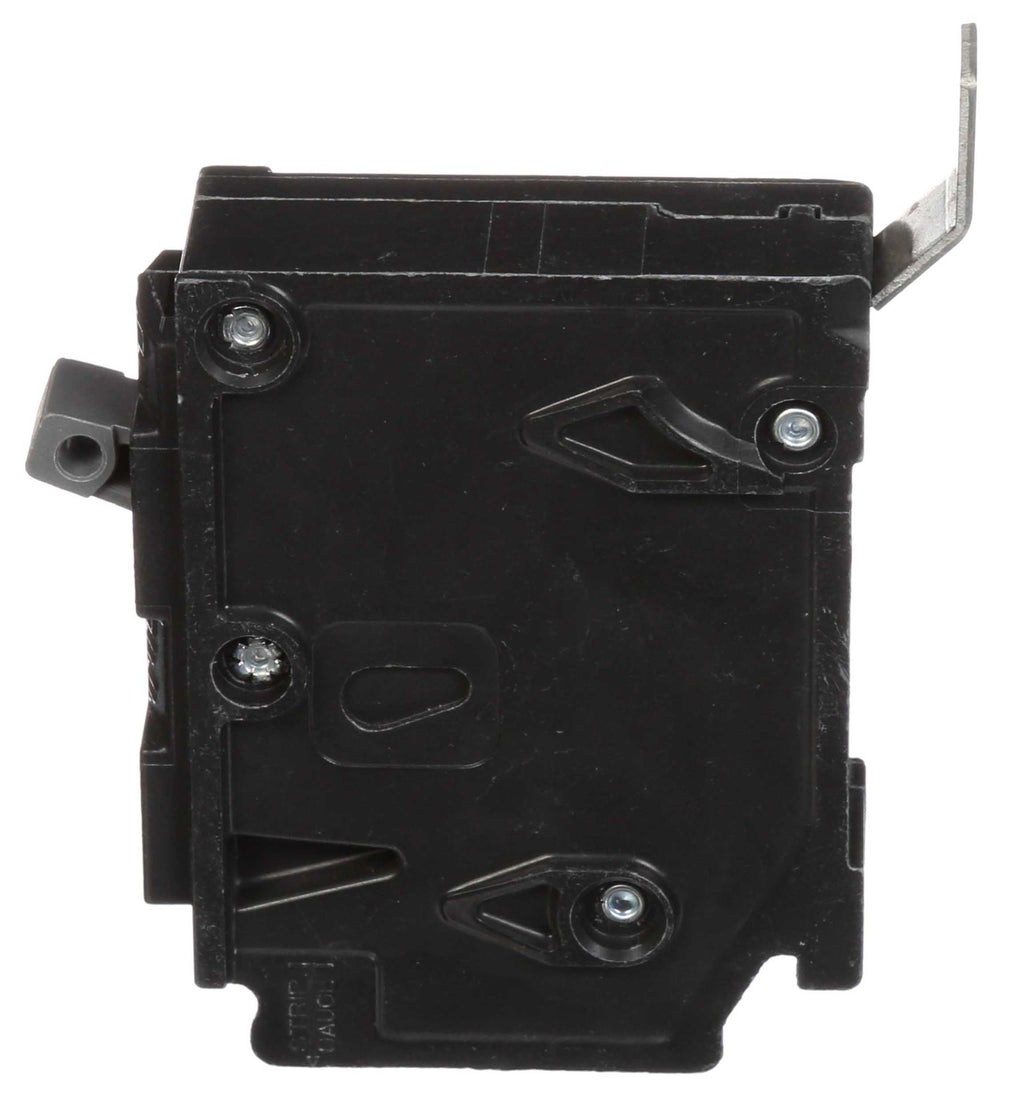

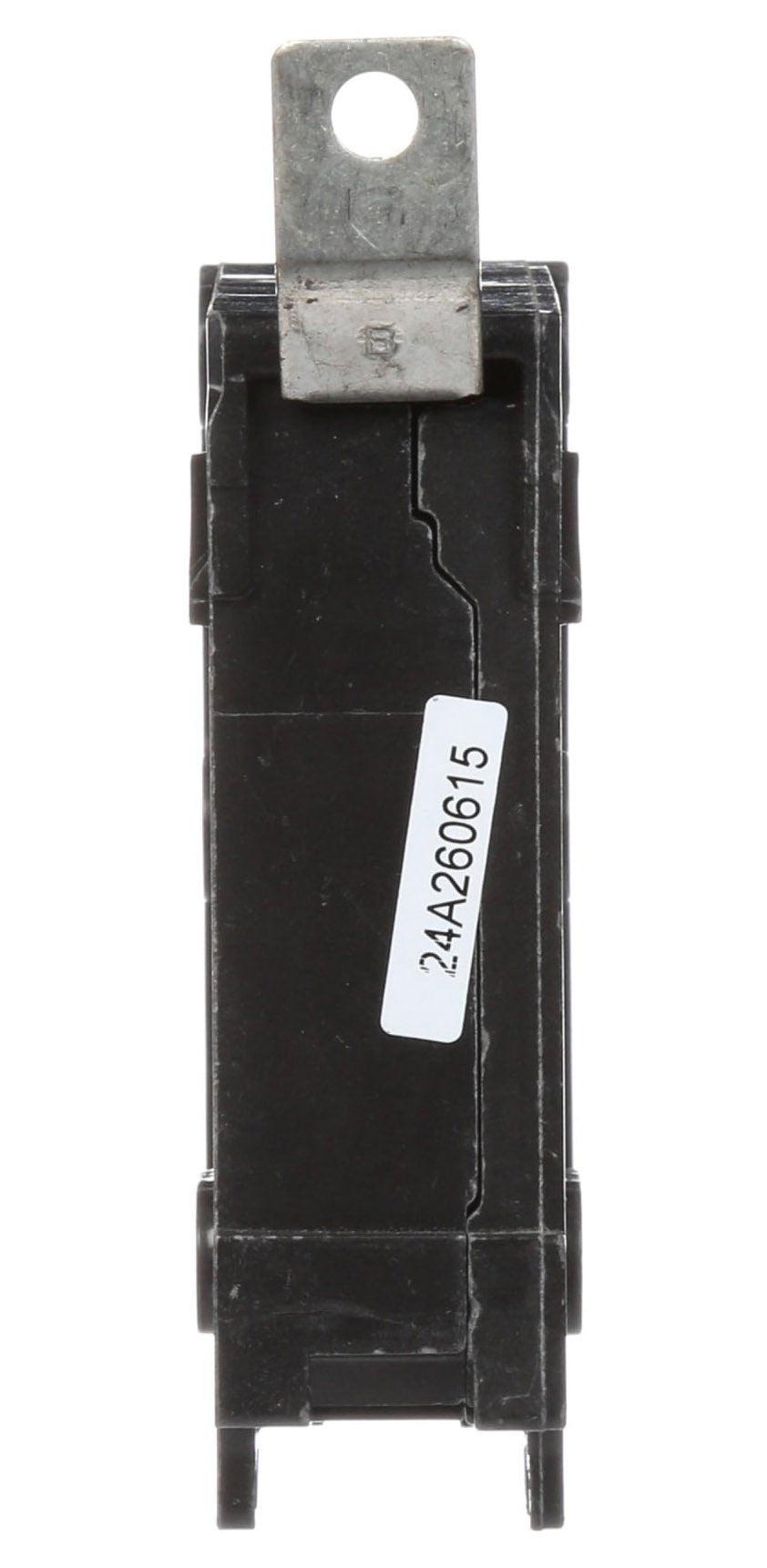

B125HH - Siemens 25 Amp 1-Pole 120V molded case circuit breaker with bolt-on mounting.This Siemens B125HH is a molded case circuit breaker rated for 25A, 1 pole, and 120V, featuring bolt-on mounting and HBL type construction for reliable overcurrent protection in panelboard applications.
- Part Number: B125HH
- Manufacturer: Siemens
- Amperage: 25A
- Poles: 1
- Voltage Rating: 120V
- Mounting Type: Bolt-On
- Type: HBL
- Product Status: Active
- Net Weight: 0.331 lb
Specifications
- Part Number: B125HH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : HBL
- Voltage : 120
- Amperage : 25
- Phase : 1
- Poles : 1
- AIC rating : 65kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BL
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643089099
- GTIN : 00783643089099
- Country of Origin : Mexico
- Dimensions : 2.563 x 1.00 x 3.122 inch
- Weight : 0.309
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
