Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5222-5EC31-0AA0

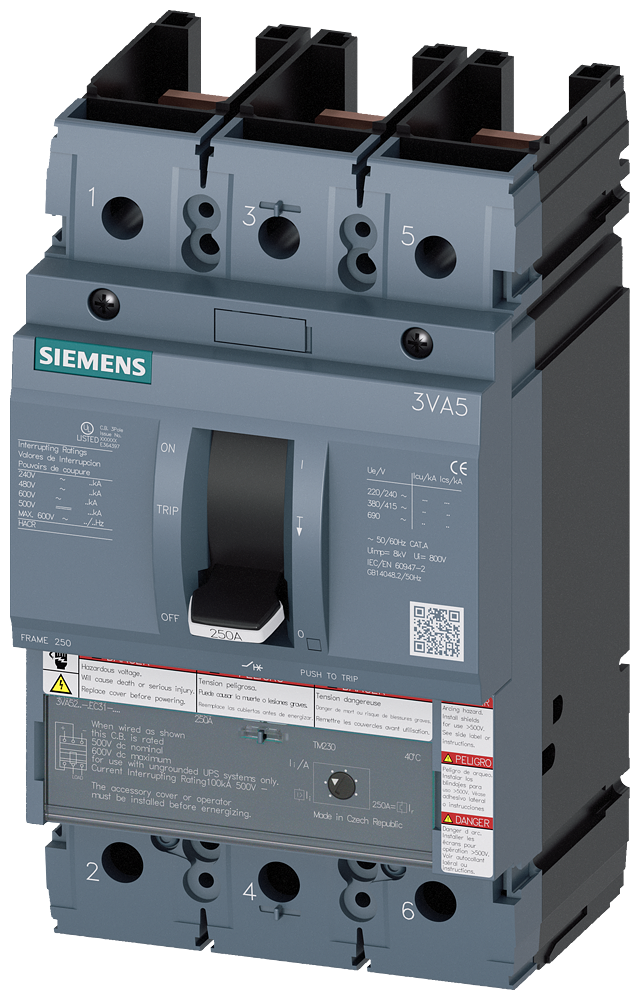

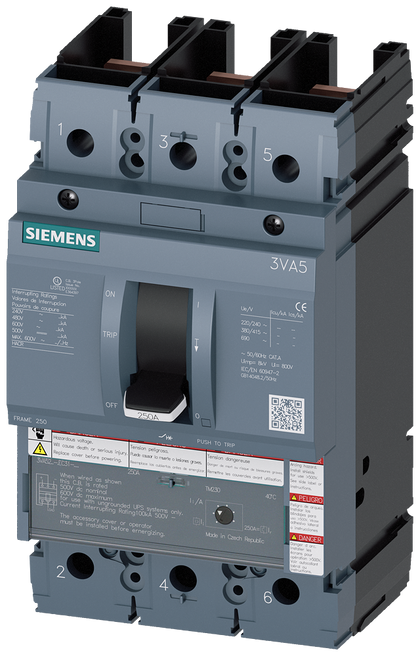

3VA5222-5EC31-0AA0 is a Siemens 3-pole molded case circuit breaker designed for reliable protection in electrical distribution systems.This circuit breaker features a 225 ampere rating, 600 volt capacity, and a thermal-magnetic trip unit for overload and short-circuit protection. It belongs to the Siemens 3VA5 UL Frame 250 series with a medium (Class M) breaking capacity of 35 kA at 480 V. The breaker is suitable for three-phase applications and includes line protection with feed-thru connection.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 600 V
- Poles: 3
- Frame: 3VA5 UL Frame 250
- Trip Unit: Thermal Magnetic (TM230)
- Interrupt Rating: 35 kA @ 480 V (Class M)
- Mounting Type: Molded Case
- Phase: 3
- Connection: Feed-Thru
- Certifications: UL Listed
Specifications
- Part Number: 3VA5222-5EC31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 80476630828
- GTIN : 00804766308284
- Weight : 2 lb
- Standards : UL Listed
- Certification : UL Listed
