Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Siemens
- Sub-Category
- Auxiliary
- Series
- Sentron Series
- Frame
- 3VA
- Standards
- UL Listed
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- Compatible Frames
- 3VA
- Weight
- 5
- Certification
- UL Listed
Product description & additional details
3VA9978-0AA22

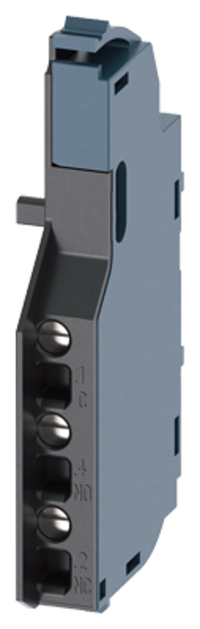

3VA9978-0AA22 is a leading auxiliary switch accessory designed for Siemens 3VA molded case circuit breakers, featuring a changeover contact configuration rated for 3 A at 300 V AC. This compact auxiliary switch is engineered for industrial and commercial power distribution applications, providing reliable switching control in conjunction with 3VA circuit breaker frames. The unit measures 1 slot (7 mm) in width and is designed for screw-type terminal connections with a stripped conductor length of 15 mm per IEC standards.
- Rated Current: 3 A
- Operating Voltage AC: 300 V
- Operating Voltage DC: 250 V
- Contact Type: Changeover (CO)
- Mechanical Design: 1 slot, 7 mm width
- Surge Voltage Resistance: 4 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Lead Time: 20 ms
- Tightening Torque: 0.4 to 0.5 N·m
- Conductor Cross Section: AWG 20 to 16
- Compact Size: 3.94 in L x 0.31 in W x 6.89 in H
Specifications
- Part Number: 3VA9978-0AA22
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Sentron Series
- Type : 3VA
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- Compatible Frames : 3VA
Product Data
- Weight : 5
- Standards : UL Listed
- Certification : UL Listed
