Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA5110-1MH31-0AA0

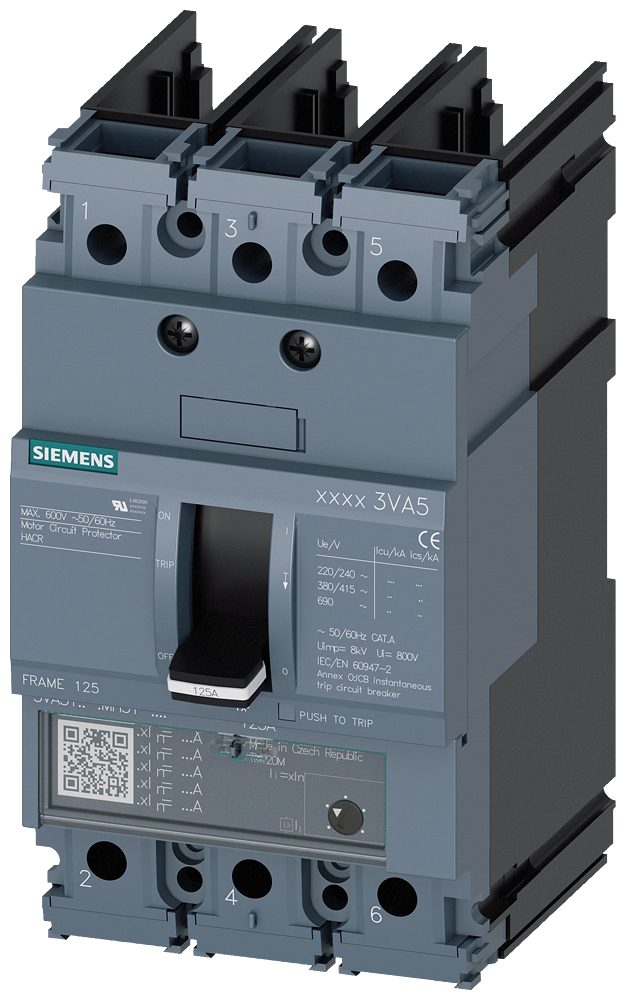

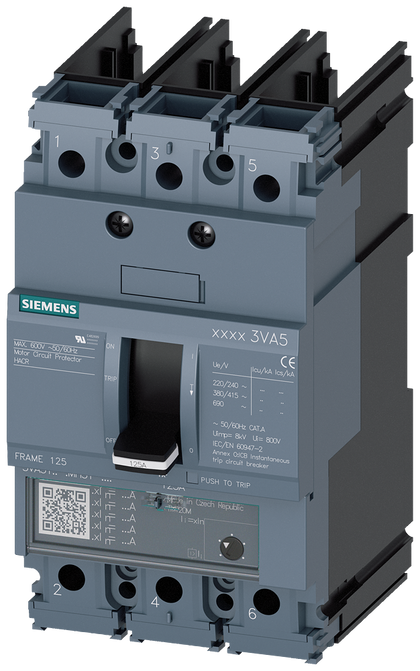

3VA5110-1MH31-0AA0 is a Siemens 3-pole molded case circuit breaker rated at 100A and 600V.This magnetic circuit breaker from the 3VA5 series provides motor circuit protection with instantaneous trip function and feed-thru connections. It features 3 poles, 3-phase operation, and is suitable for residential, commercial, and industrial applications.
- Manufacturer: Siemens
- Series: 3VA5
- Amperage: 100A
- Voltage: 600V AC
- Poles: 3
- Phase: 3
- Connection Type: Feed-Thru
- Protection: Magnetic
- Functions: I - Instantaneous
- Approvals: UL, IEC
Specifications
- Part Number: 3VA5110-1MH31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : I
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Magnetic Only
- Trip Type : TM120M
Product Data
- UPC : 804766301247
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.108
- Standards : UL Listed
- Certification : UL Listed
