Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

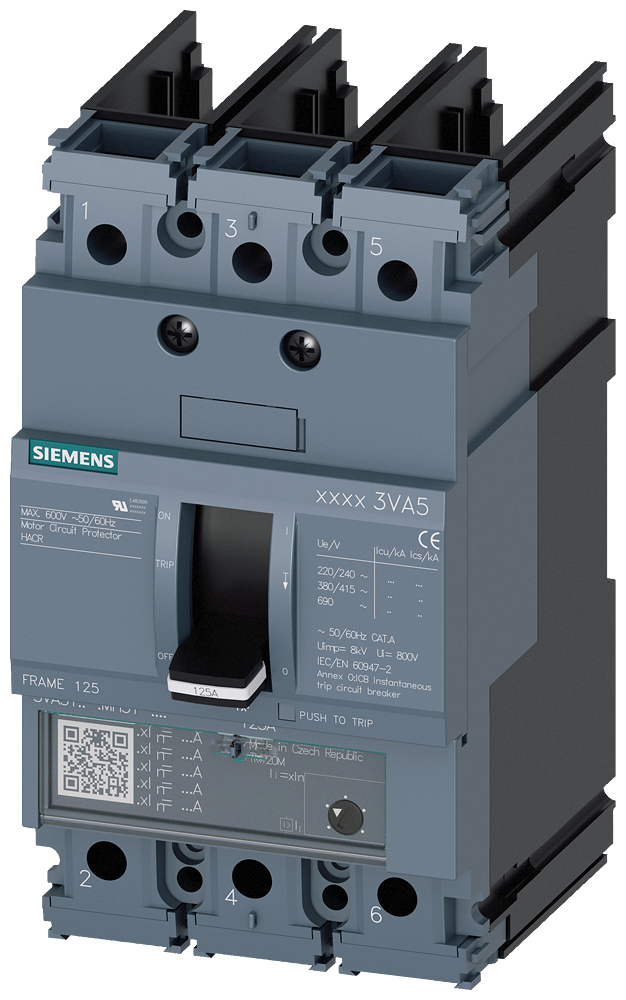

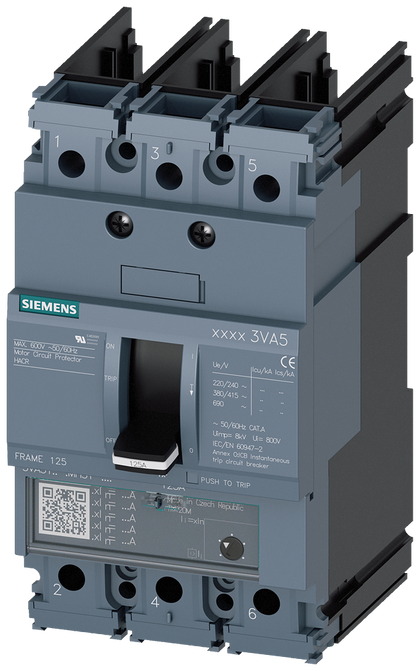

3VA5110-1MU31-0AA0
3VA5110-1MU31-0AA0 is a Siemens 3 pole molded case circuit breaker rated for 100 amps and 600 volts with a 65kA interrupting rating at 480V.This circuit breaker features a magnetic trip unit with instantaneous protection functions and a feed-thru connection type. It belongs to the Siemens 3VA5 series with UL and IEC certifications, designed for reliable short-circuit protection in three-phase electrical systems.
- Manufacturer: Siemens
- Series: 3VA5
- Amperage: 100A
- Voltage Rating: 600V
- Poles: 3
- Interrupting Rating: 65kA @ 480V
- Connection Type: Feed-Thru
- Trip Unit: Magnetic Instantaneous
- Certifications: UL, IEC
- Phase: 3
Specifications
- Part Number: 3VA5110-1MU31-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 690V AC
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : I
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Magnetic Only
- Trip Type : TM120M
Product Data
- UPC : 804766301353
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.622 x 4.567 inch
- Weight : 2.101
- Standards : UL Listed
- Certification : UL Listed
