Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4130-5ED24-0AA0

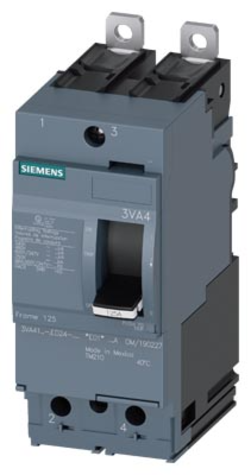

3VA4130-5ED24-0AA0 is a Siemens 2-pole circuit breaker rated for 30 amps and 480 volts with a 35kA interrupt rating.This Siemens 3VA4 series circuit breaker features a UL Frame 125 design with class M breaking capacity. It includes a TM210 trip unit with FTFM (Fixed Thermal Fixed Magnetic) protection, suitable for line protection applications. The breaker is rated for 600Y/347V and 480V systems, providing reliable overload and short circuit protection with a 35kA interrupting capacity at 480 volts.
- Amperage: 30A
- Voltage: 480V / 600Y/347V
- Poles: 2
- Interrupt Rating: 35kA @ 480V
- Series/Frame: 3VA4 UL Frame 125
- Trip Unit: TM210, FTFM
- Mounting Type: Bolt-On
- Certifications: UL Listed
- Breaking Capacity Class: M
- Line Protection
Specifications
- Part Number: 3VA4130-5ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766942808
- GTIN : 00804766942808
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133
- Standards : UL Listed
- Certification : UL Listed
