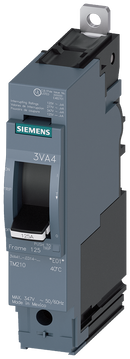

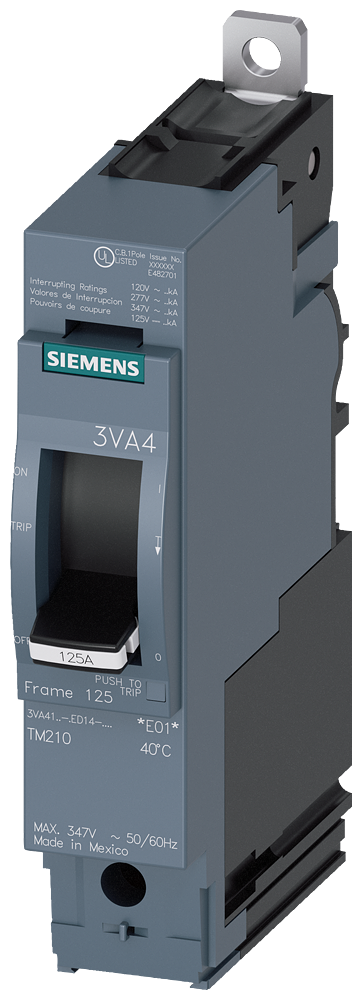

3VA4130-5ED14-0AA0 - Siemens 30A 277V 1-Pole Molded Case Circuit Breaker, 3VA41 Frame, 35kA Interrupt, TM210 Trip, Bolt-On, UL 489, HACR, HID

3VA4130-5ED14-0AA0

3VA4130-5ED14-0AA0 is a Siemens 3VA4 series molded case circuit breaker rated at 30A, 1-pole with thermal-magnetic trip.

This UL 489 listed breaker features TM210 trip unit with fixed thermal (Ir=30A) and fixed magnetic (Ii=10xIn) protection, line protection configuration (FTFM), bolt-on mounting, and class M breaking capacity. It supports operational voltage up to 480V AC with interrupting ratings of 35kA at 277V, 18kA at 347V, and suitable for reverse feed applications with load side lug terminals.

Key Specifications

• Amperage: 30A
• Poles: 1
• Voltage: 480V AC max operational
• Mounting Type: Bolt-On
• Series/Frame: 3VA4 UL Frame 125
• Trip Unit: TM210 (LI, fixed Ir=30A, fixed Ii=10xIn)
• Interrupt Rating: 35kA @ 277V, 18kA @ 347V
• Breaking Capacity Class: M
• Protection: Line protection (FTFM)
• Terminals: Load side lug
• Power Loss: 3W maximum per pole

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA4130-5ED14-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 480V AC
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 35kA@277V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766941900
• GTIN : 0804766941900
• Country of Origin : Mexico
• Dimensions : 6.614 x 5.315 x 1.339 inch
• Weight : 0.617
• Standards : UL Listed
• Certification : UL Listed
