Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4120-5ED34-0AA0

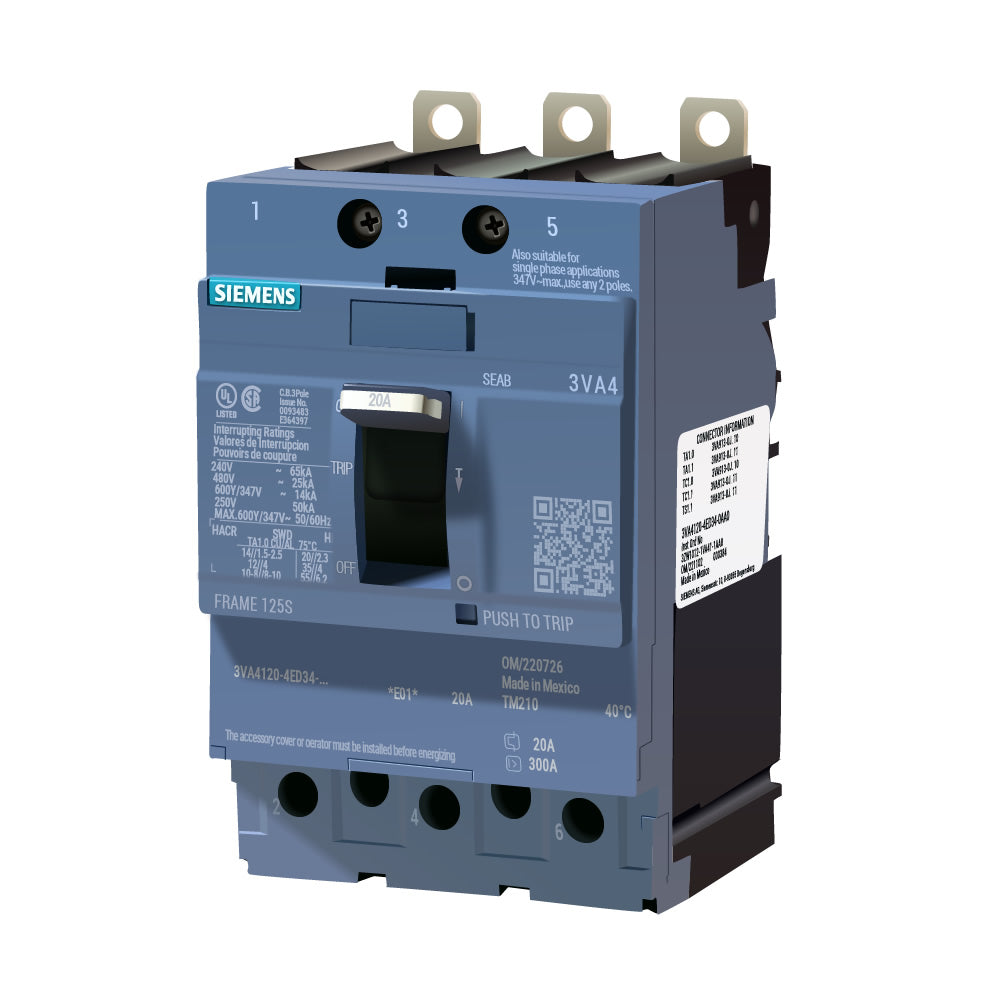

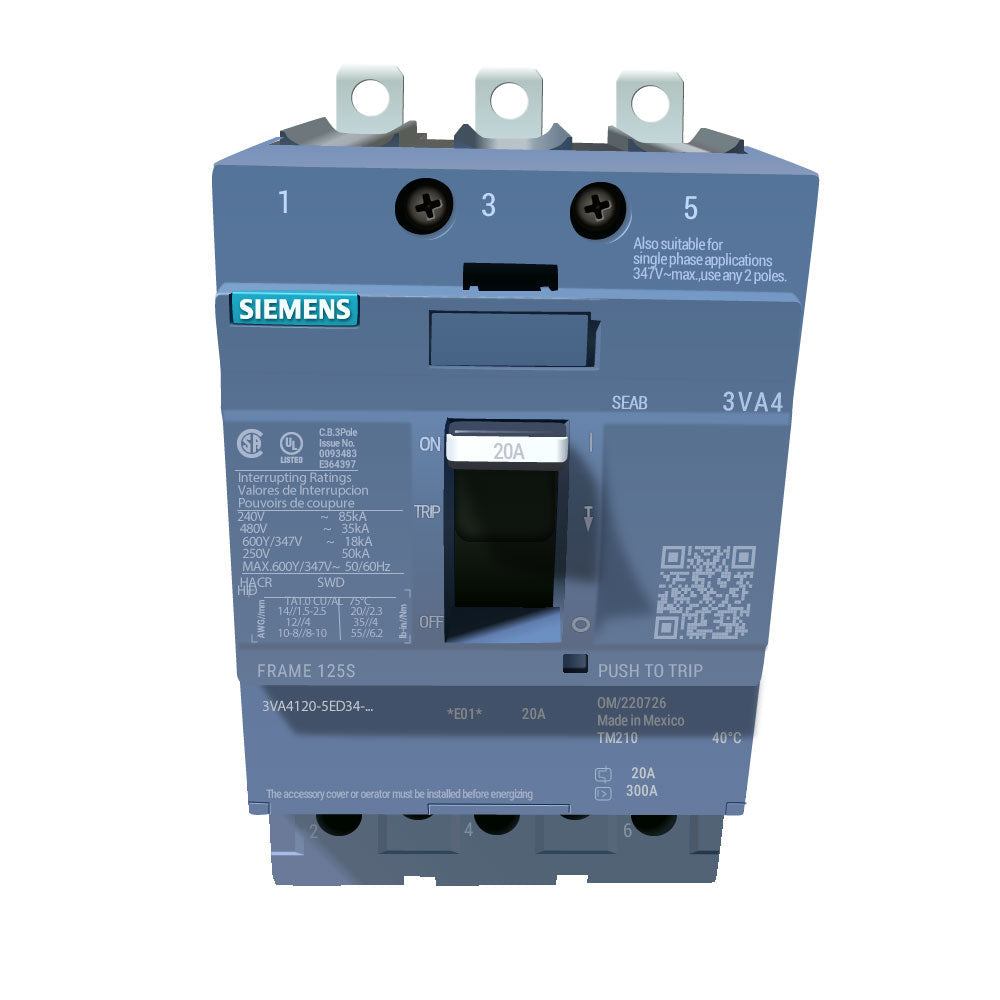

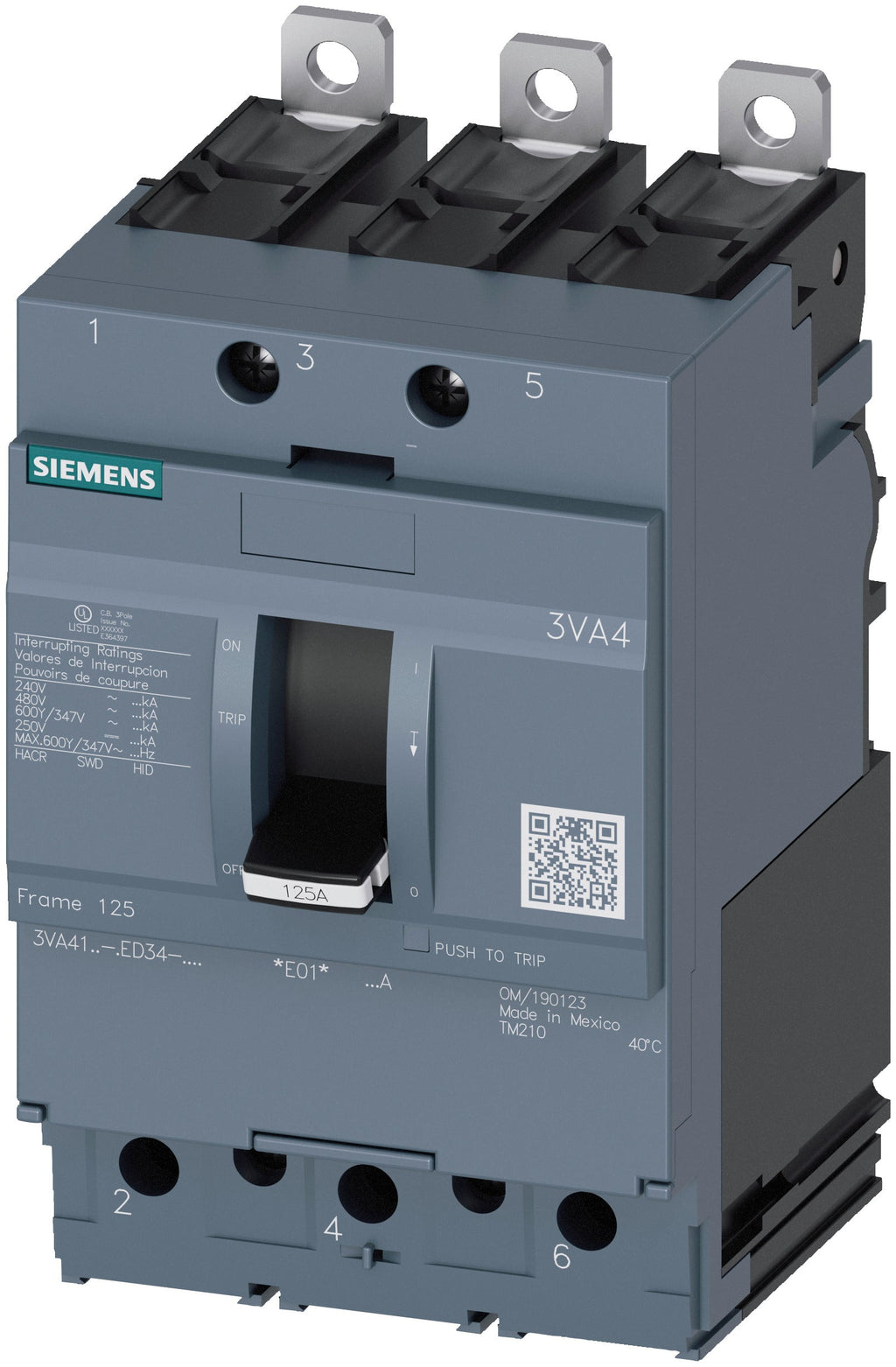

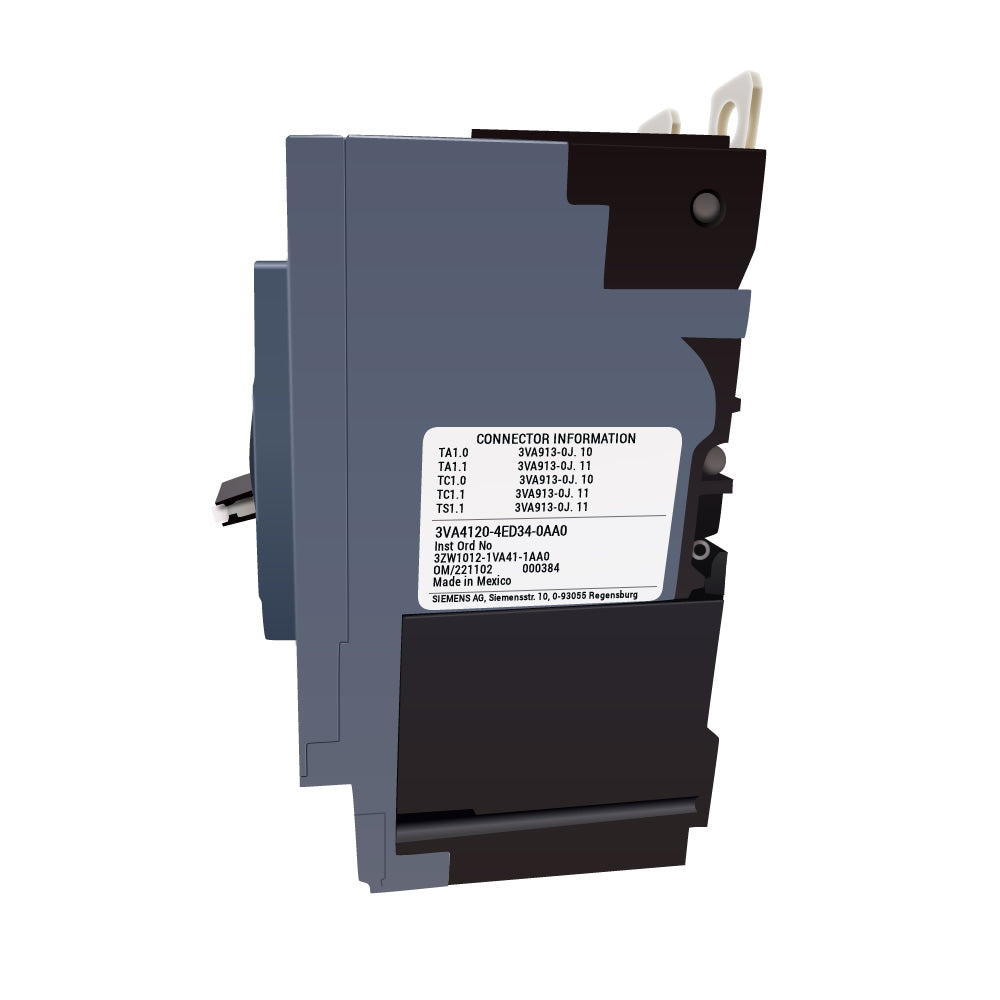

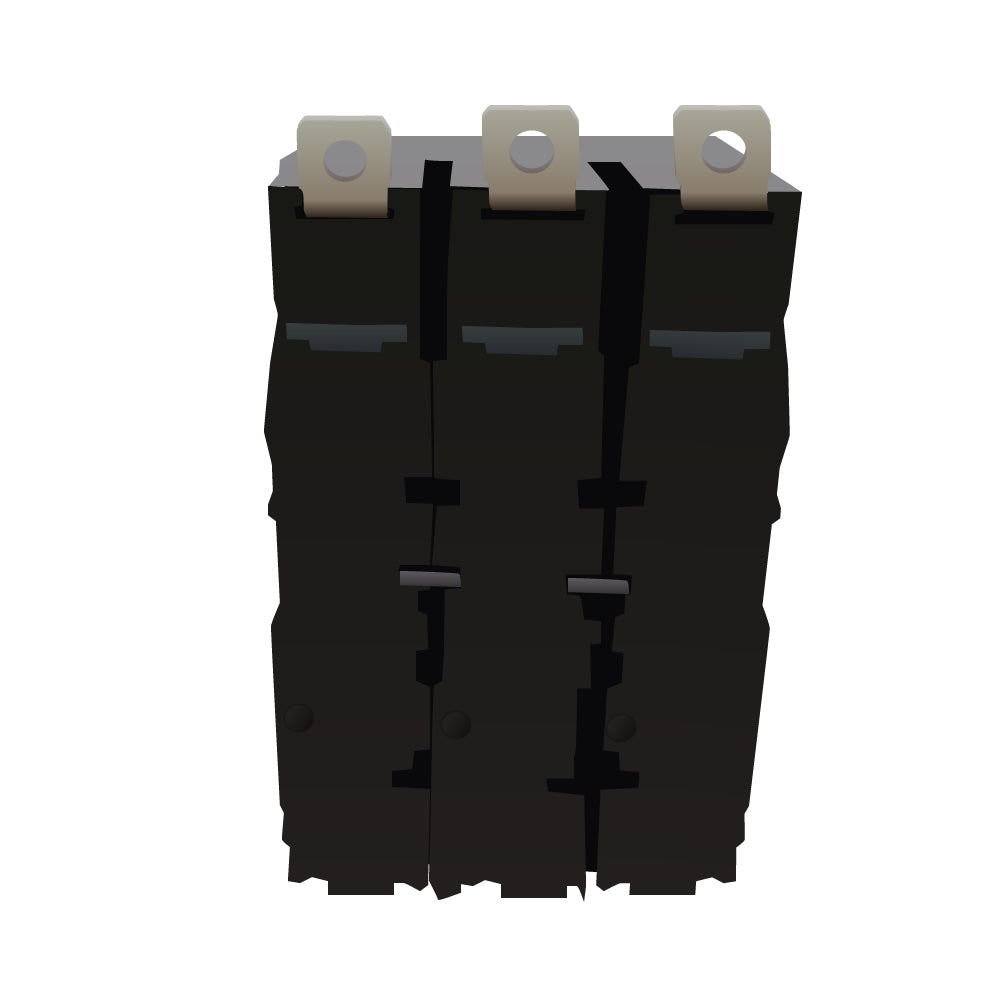

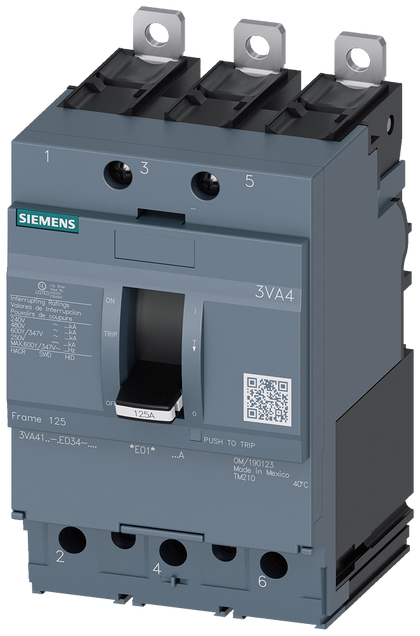

3VA4120-5ED34-0AA0 is a Siemens molded case circuit breaker designed for reliable line protection in commercial and industrial applications. This 3-pole breaker features a UL Frame 125, 20A trip rating, and a medium breaking capacity class M of 35 kA at 480V. It includes a thermal-magnetic trip unit (TM210) and is suitable for bolt-on mounting. The breaker is engineered for durability and safety in low-voltage power distribution systems. Key Specifications
- Part Number: 3VA4120-5ED34-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA4 UL Frame 125
- Amperage: 20A
- Poles: 3
- Voltage: 480V
- Interrupt Rating: 35 kA @ 480V
- Mounting Type: Bolt-On
- Trip Unit: TM210 (Thermal-Magnetic)
- Protection Type: Line Protection
- Breaking Capacity Class: M
- Certifications: UL Listed
Specifications
- Part Number: 3VA4120-5ED34-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943584
- GTIN : 00804766943584
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638 lb
- Standards : UL Listed
- Certification : UL Listed
