Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4120-5ED14-0AA0

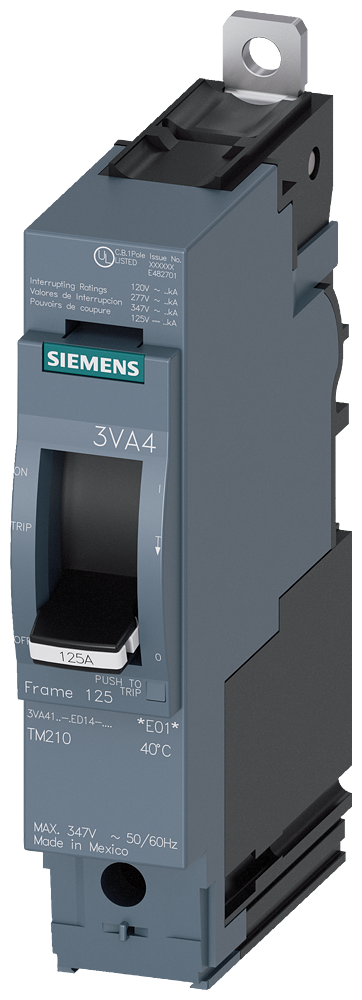

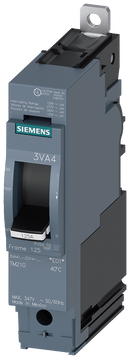

3VA4120-5ED14-0AA0 is a Siemens 1-pole thermal magnetic molded case circuit breaker rated for 20 amps and 600Y/347V voltage, designed for reliable line protection.This circuit breaker features the 3VA4 UL Frame 125 with a medium (Class M) breaking capacity of 35 kA at 277 V. It includes a TM210 thermal magnetic trip unit with fixed thermal and fixed magnetic (FTFM) protection, providing overload and short-circuit protection. The breaker is suitable for low voltage applications and is constructed with durable ABS/plastic materials.
- Key Specifications
- Amperage: 20 Amps
- Voltage Rating: 600Y/347V, 480V AC
- Poles: 1 Pole
- Frame/Series: 3VA4 UL Frame 125
- Trip Unit: TM210 Thermal Magnetic (FTFM)
- Interrupt Rating: 35 kA @ 277 V (Class M)
- Mounting Type: Molded Case
- Material: ABS/Plastic
- Certifications: UL Listed
- Part Number: 3VA4120-5ED14-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 35kA@277V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
- UPC : 804766941788
- GTIN : 00804766941788
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 1.339 inch
- Weight : 0.617
- Standards : UL Listed
- Certification : UL Listed
