Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3VA4120-5ED24-0AA0

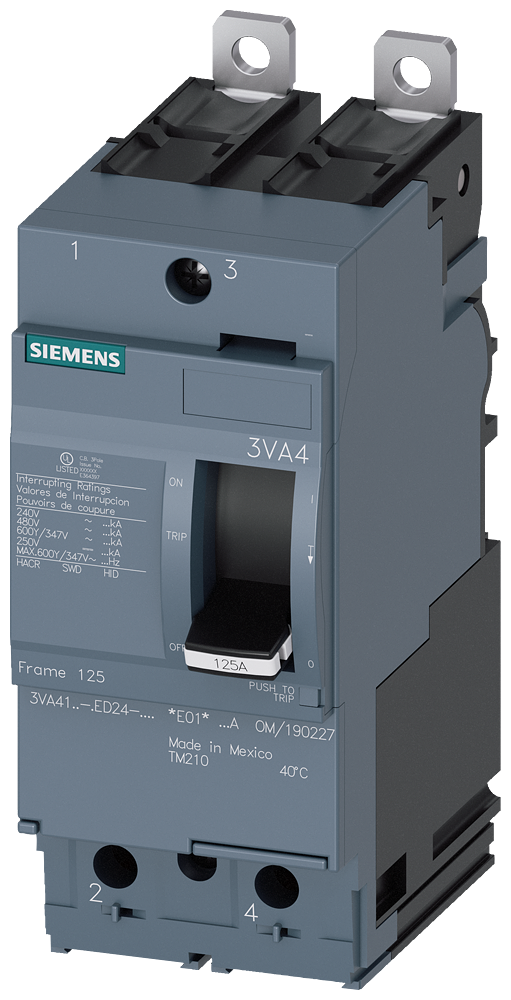

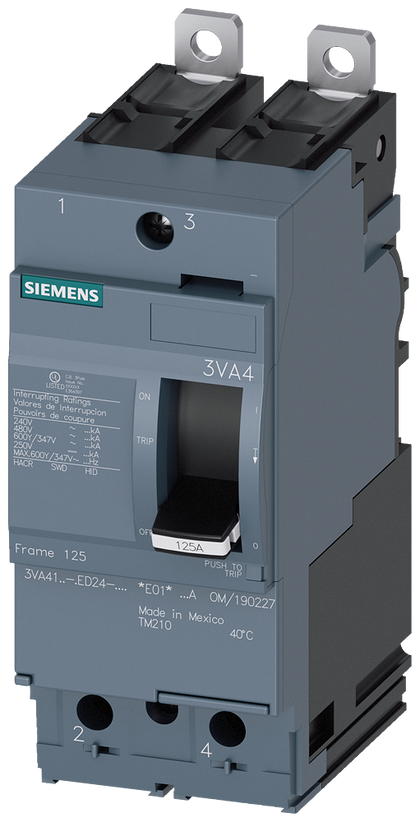

3VA4120-5ED24-0AA0 is a Siemens 3VA4 molded case circuit breaker with 2 poles, 20A rating, and 35kA interrupting capacity at 480V.This UL 489 listed circuit breaker features TM210 thermal-magnetic trip unit with fixed long-time and fixed short-time protection (FTFM), overload protection at 20A, and short-circuit protection at 15x In. It supports line protection, HID and SWD applications, with clamp connections for 14-8 AWG stranded conductors and rated operational voltage up to 415V AC.
- Poles: 2
- Amperage: 20A
- Frame Size: UL Frame 125
- Series: 3VA4 / 3VA41
- Trip Unit: TM210, FTFM, LI
- Interrupt Rating: 35kA @ 480V, 85kA @ 240V
- Overload Protection: Ir=20A
- Short-Circuit Protection: Ii=15x In
- Mounting: Bolt-On
- UL 489 Listed
- Connection: Clamp, 1x (14-8 AWG) stranded
Specifications
- Part Number: 3VA4120-5ED24-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 480V AC
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766942686
- GTIN : 00804766942686
- Country of Origin : Mexico
- Dimensions : 6.614 x 5.315 x 2.283 inch
- Weight : 1.133 lb
- Standards : UL Listed
- Certification : UL Listed
