Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

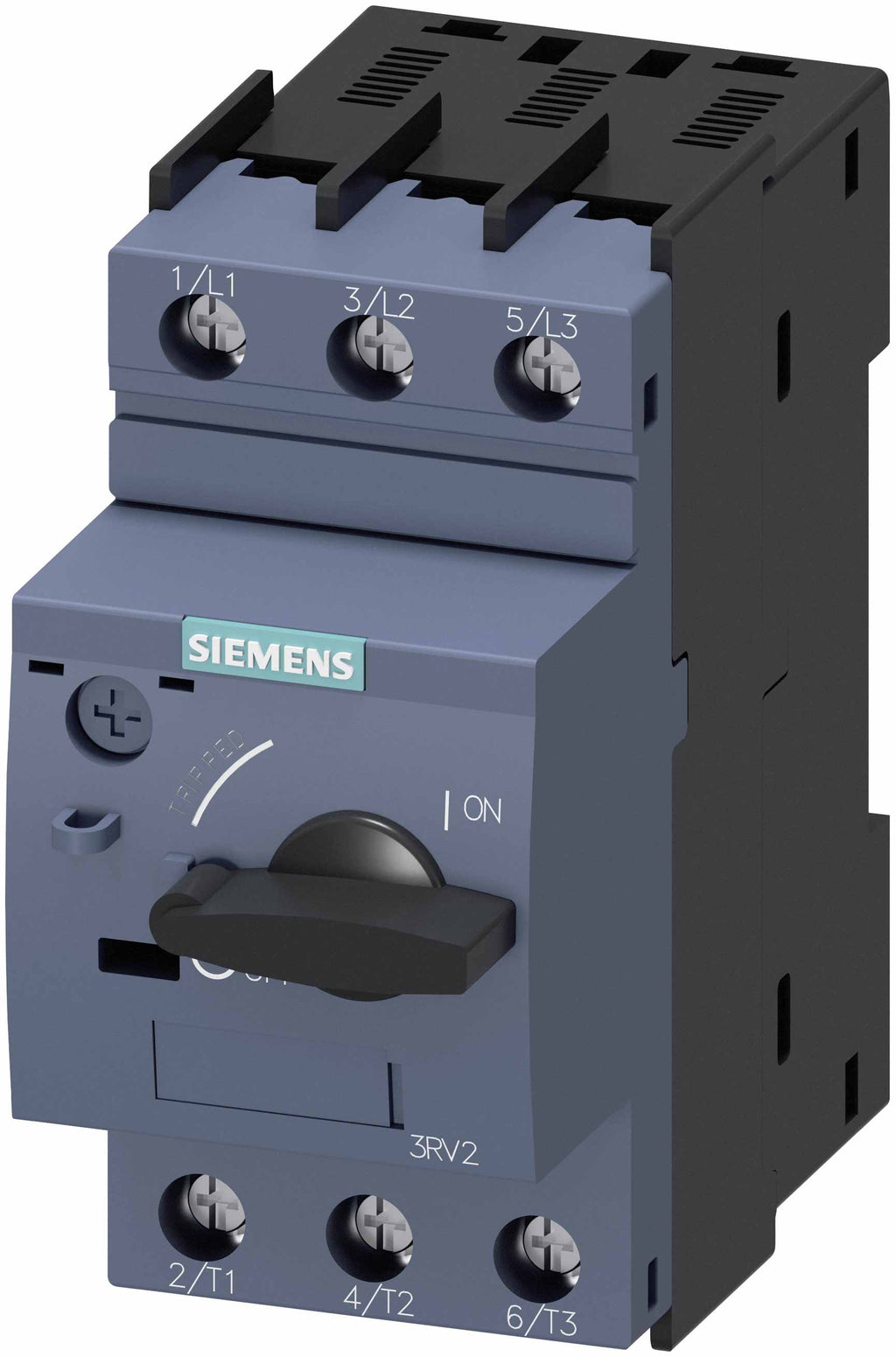

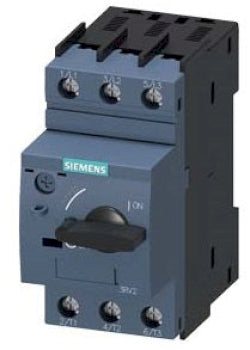

3RV2011-4AA10
3RV2011-4AA10 is a Siemens motor protection circuit breaker designed for reliable motor control and protection with adjustable current settings from 11 to 16 amps.This Siemens Sirius 3RV2011 series breaker features a Class 10 overload trip characteristic, 3 poles, and a 208A short circuit release rating. It supports motor power up to 7.5 kW and operates at voltages from 220 to 690 VAC. The breaker mounts easily on a standard 35mm DIN rail and uses screw terminals for secure electrical connections. It provides combined overload, short circuit, and phase loss protection in a compact S00 frame size, making it suitable for motor starter applications requiring UL approval and Type E protection.
- Key Specifications
- Amperage range: 11 to 16 A adjustable
- Voltage rating: 220 to 690 VAC
- Poles: 3
- Interrupt rating: 208 A
- Trip class: 10 (Class 10 overload protection)
- Mounting type: DIN rail (35 mm)
- Terminal type: Screw terminals
- Frame size: S00
- Max motor power: 7.5 kW
- Certifications: UL approved, Type E protection
- Part Number: 3RV2011-4AA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Amperage : 16
- Phase : 3
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
- UPC : 786685273617
- GTIN : 00786685273617
- Weight : 0.7832
