2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2011-1GA10

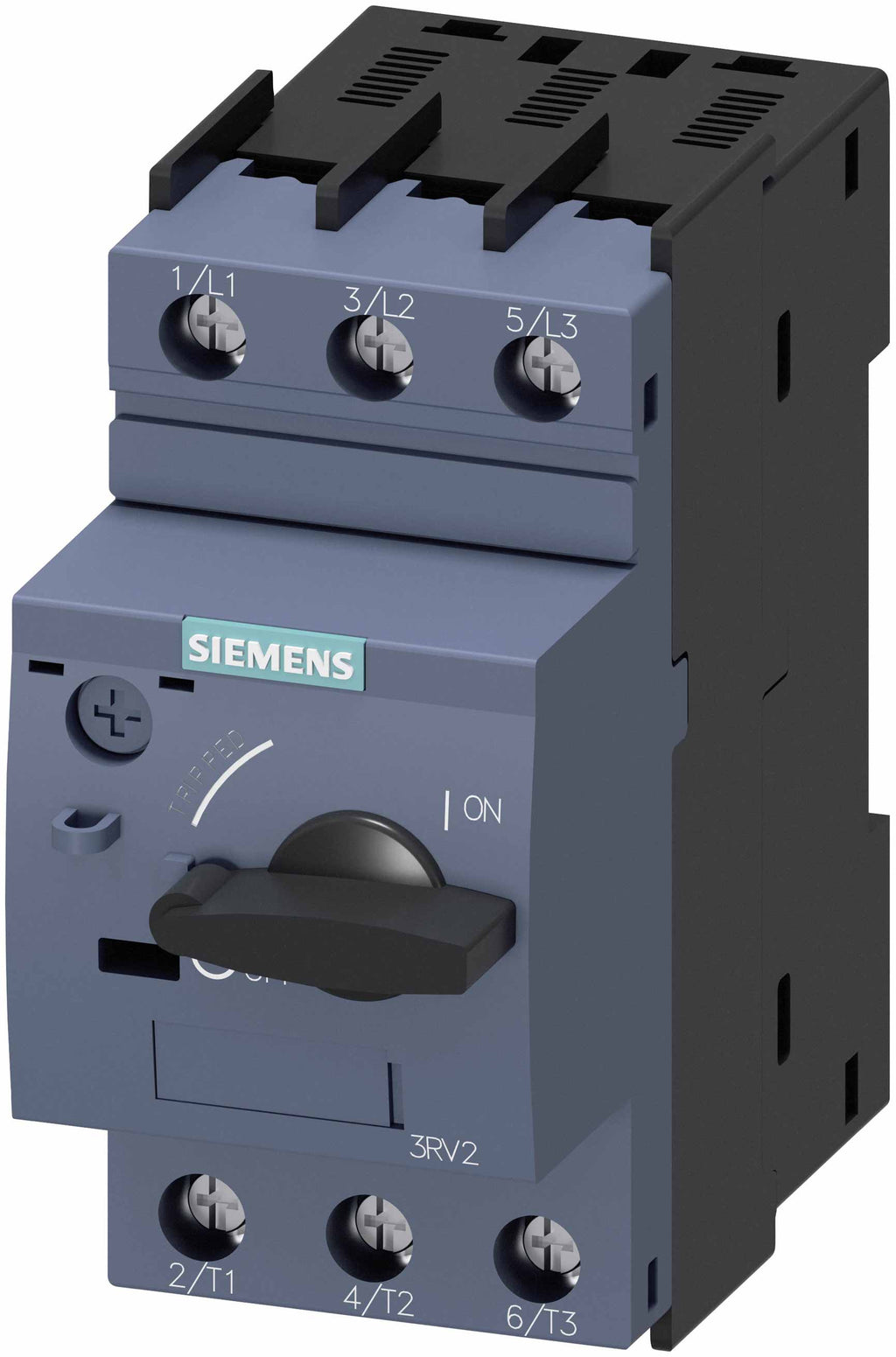

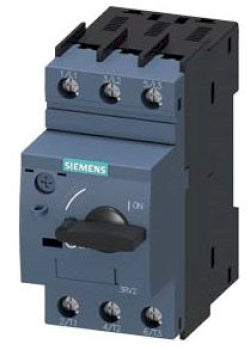

3RV2011-1GA10 is a Siemens SIRIUS motor protection circuit breaker designed for reliable protection of motor circuits. This device features a Class 10 thermal-magnetic trip unit and is suitable for applications requiring precise overload and short-circuit protection. The 3RV2011-1GA10 offers a setting range of 4.5 to 6.3 A for thermal overload protection and a magnetic trip at 82 A. It is built with a robust S00 frame and features screw terminals for secure wiring. The breaker is designed for three-phase motor protection and provides phase failure detection for enhanced safety.
- Manufacturer: Siemens
- Series: SIRIUS
- Frame Size: S00
- Poles: 3
- Rated Operational Current: 6.3 A
- Thermal Overload Setting Range: 4.5 - 6.3 A
- Magnetic Trip: 82 A
- Insulation Voltage: 690 V AC
- Surge Voltage Resistance: 6 kV
- Short-Circuit Breaking Capacity (Icu): 100 kA at 240 V, 400 V, 500 V AC; 6 kA at 690 V AC
- Operating Frequency: 50 - 60 Hz
- Mounting Type: Screw Terminal
- Phase Failure Detection: Yes
- Ground Fault Detection: No
- Operating Short-Circuit Breaking Capacity (Ics): 100 kA at 240 V, 400 V, 500 V AC; 6 kA at 690 V AC
- Shock Resistance: 25g / 11 ms
Specifications
- Part Number: 3RV2011-1GA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 6.3
- Phase : 3
- Poles : 3
- Protection : Thermal Magnetic
Product Data
- UPC : 662643924022
- GTIN : 00662643924022
- Weight : 0.71
