Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

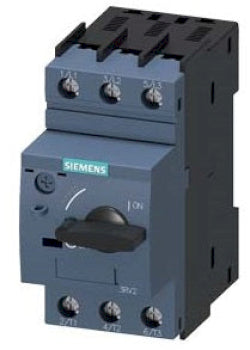

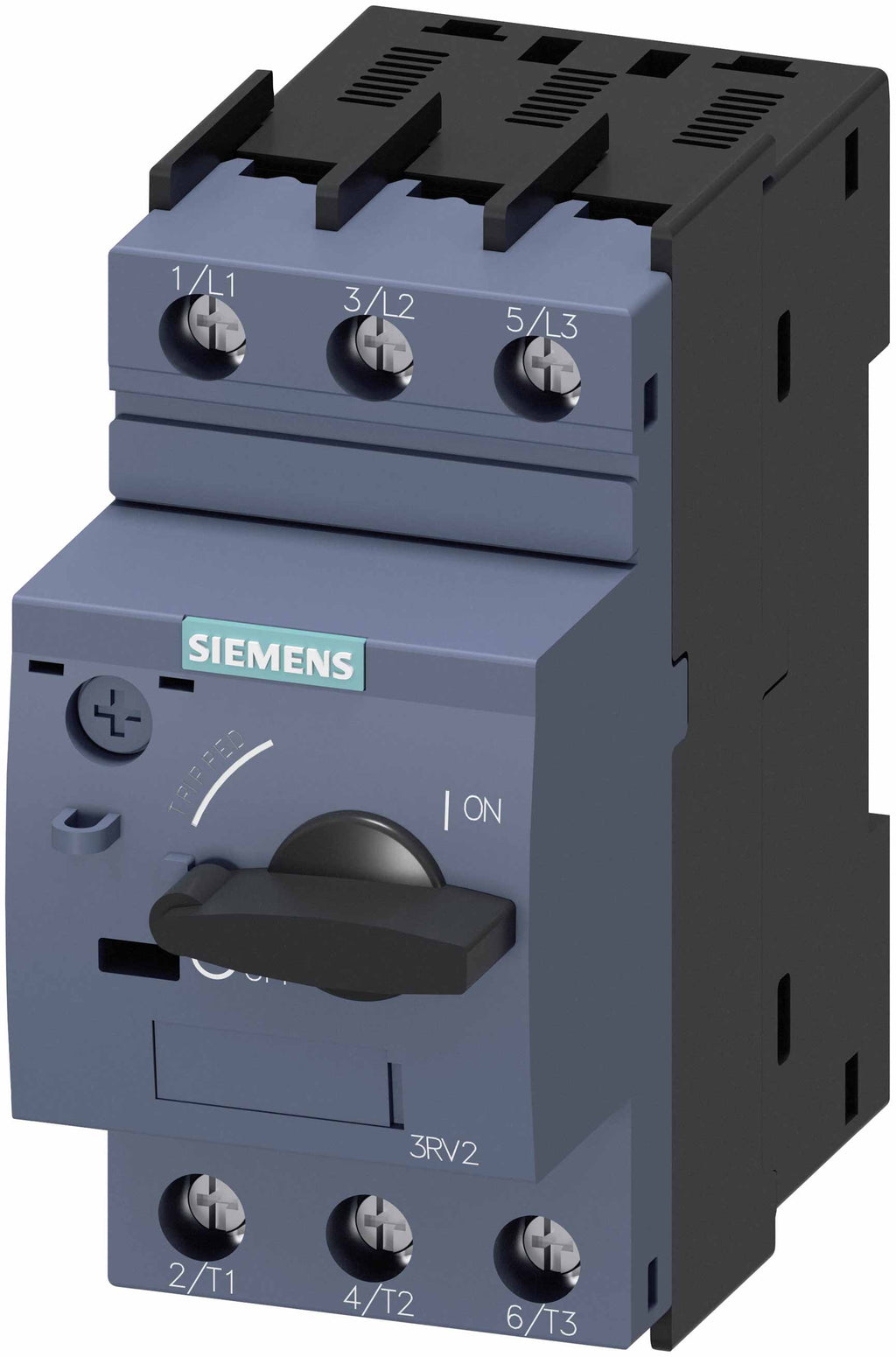

3RV2011-1FA10
3RV2011-1FA10 is a Siemens SIRIUS Type 3RV2 motor protection circuit breaker designed for reliable thermal and magnetic trip protection in industrial motor control applications. This compact S00 frame device provides Class 10 overload protection with adjustable thermal release settings and instantaneous magnetic trip elements for short circuit protection. The unit features a rotary ON/OFF handle for manual motor control and disconnect functionality, making it suitable for use as a self-protected combination motor controller when paired with appropriate contactors. With screw terminal connections and DIN rail mounting, the 3RV2011-1FA10 integrates seamlessly into standard control cabinets and reduces energy losses through optimized bimetal trip unit design.
- Voltage Rating: 690 VAC
- Amperage Range: 3.5 to 5 A (thermal overload release)
- Instantaneous Trip: 65 A (magnetic release)
- Number of Poles: 3
- Frame Size: S00
- Trip Type: Thermal Magnetic (Class 10)
- Interrupt Rating: 4 kA at 690 VAC
- Mounting: DIN Rail
- Connection Type: Screw Terminal
- Operating Frequency: 50/60 Hz
- Enclosure Rating: IP20
- Motor Power: 1.5 kW maximum
Specifications
- Part Number: 3RV2011-1FA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 690
- Amperage : 5
- Phase : 3
- Poles : 3
- Protection : Thermal Magnetic
Product Data
- UPC : 66264392397
- GTIN : 00662643923971
- Weight : 0.78
