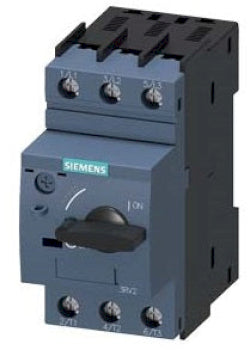

3RV2011-1JA10 - Siemens 10A 690V 1-Pole Motor Protection Circuit Breaker Size S00 Class 10 Thermal Trip

3RV2011-1JA10

3RV2011-1JA10 is a Siemens size S00 motor protection circuit breaker with a 7-10A adjustable thermal release and 130A instantaneous release for reliable motor protection.This circuit breaker features a 1-pole design with screw terminals, suitable for motor protection applications up to 690V AC. It has a Class 10 trip unit with thermal overload release and an instantaneous short-circuit release rated at 130A. The breaker supports a maximum short-circuit breaking capacity of 100kA at 240V and 6kA at 690V. It is UL, CSA, CE, and CCC certified, designed for manual motor control and system protection.

Key Specifications
• Amperage: 7-10A adjustable thermal release
• Instantaneous release: 130A
• Voltage rating: 690V AC
• Poles: 1
• Mounting type: DIN Rail
• Interrupt rating: 100kA at 240V, 6kA at 690V
• Trip class: Class 10 thermal overload
• Connection type: Screw terminals
• Series/Frame: Size S00
• Certifications: UL, CSA, CE, CCC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RV2011-1JA10
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sirius
• Type : 3RV2
• Voltage : 690VAC
• Amperage : 7-10
• Phase : 3
• Poles : 3
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
• Compatible Frames : 3RV

Product Data

• UPC : 66264392412
• GTIN : 00662643924121
• Weight : 0.77
• Standards : RoHS
• Certification : UL, GOST, CE, IEC, UL
