Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2011-0CA10

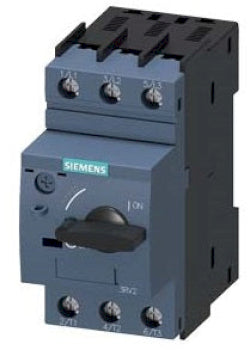

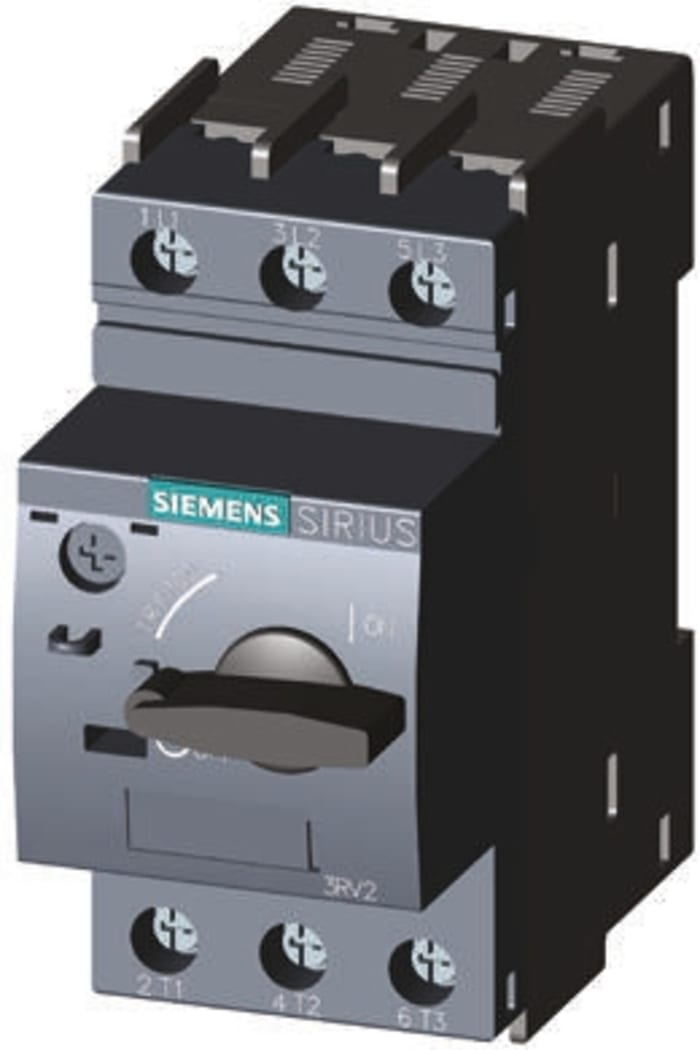

3RV2011-0CA10 is a Siemens motor circuit breaker designed for reliable motor protection in industrial applications. This device features a compact S00 frame size and provides Class 10 overload trip characteristics for fast response to overcurrent conditions. The 3RV2011-0CA10 offers three-pole protection with a current rating adjustable from 0.18 to 0.25 amps, making it suitable for small motor loads. It includes magnetic trip elements for short circuit protection and features screw-type terminals for secure wiring connections. The unit is designed for DIN rail mounting, allowing for easy installation and removal in control panels. It is also phase loss sensitive and supports optional auxiliary contacts for signaling or motor disconnection.
- Part Number: 3RV2011-0CA10
- Manufacturer: Siemens
- Series/Frame: S00
- Number of Poles: 3
- Current Rating: 0.18 to 0.25 A
- Voltage Rating AC: 690 VAC
- Mounting Type: DIN Rail
- Terminal Type: Screw
- Overload Trip Class: Class 10
- Short Circuit Trip: 3.3 A
- Phase Loss Sensitive: Yes
- Operating Temperature: -20 to 60 °C
- Operating Cycles: 100,000
Specifications
- Part Number: 3RV2011-0CA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 662643908398
- GTIN : 00662643908398
- Weight : 0.616
