Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2011-0EA10

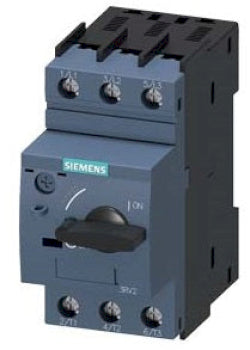

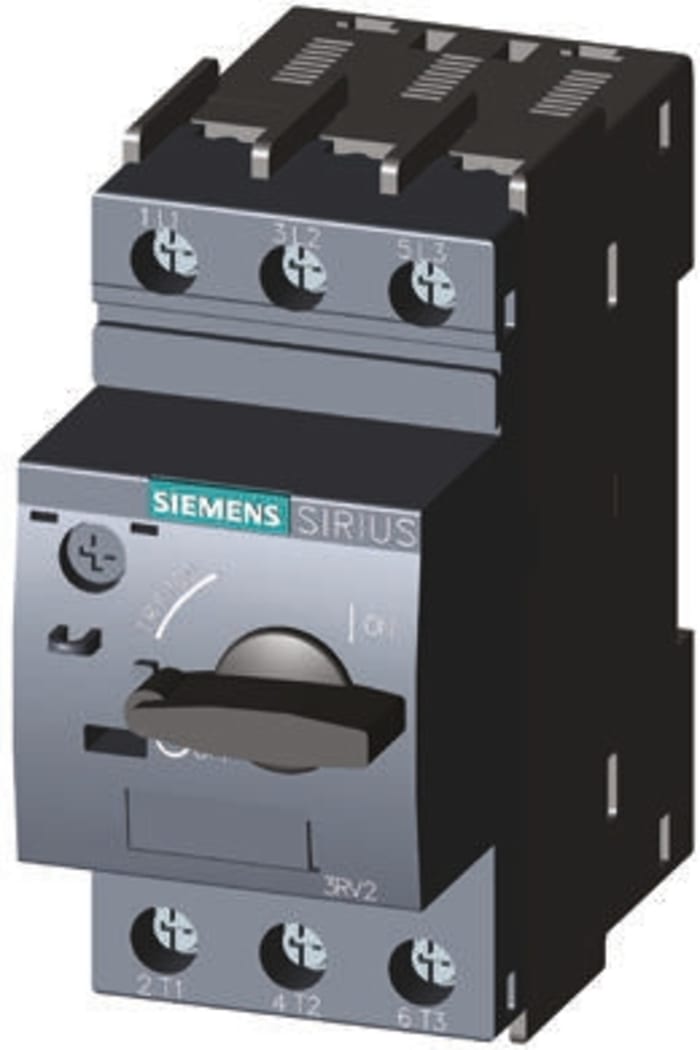

3RV2011-0EA10 is a Siemens SIRIUS S00 frame motor protection circuit breaker designed for reliable overload and short-circuit protection in motor applications. This device features a Class 10 thermal trip unit and a setting range of 0.28 to 0.4 amps for precise motor protection. The 3RV2011-0EA10 offers a robust design with a 690V AC insulation voltage and a high short-circuit breaking capacity up to 100 kA at 240V to 690V. It is equipped with a rotary dial for easy adjustment of motor FLA and includes built-in heater elements for overload protection and magnetic trip elements for short-circuit protection. The unit is suitable for standard mounting and features screw terminals for secure connections.
- Manufacturer: Siemens
- Series/Frame: SIRIUS S00
- Number of Poles: 3
- Rated Operational Current: 0.4 A
- Adjustable Overload Range: 0.28 - 0.4 A
- Insulation Voltage: 690 V AC
- Maximum Short-Circuit Breaking Capacity (Icu): 100 kA at 240V, 400V, 500V, 690V AC
- Operating Frequency: 50 - 60 Hz
- Mounting Type: Standard DIN rail
- Terminal Type: Screw terminal
- Trip Class: Class 10
- Trip Unit Type: Thermal
Specifications
- Part Number: 3RV2011-0EA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 66264392148
- GTIN : 00662643921489
- Weight : 0.616
