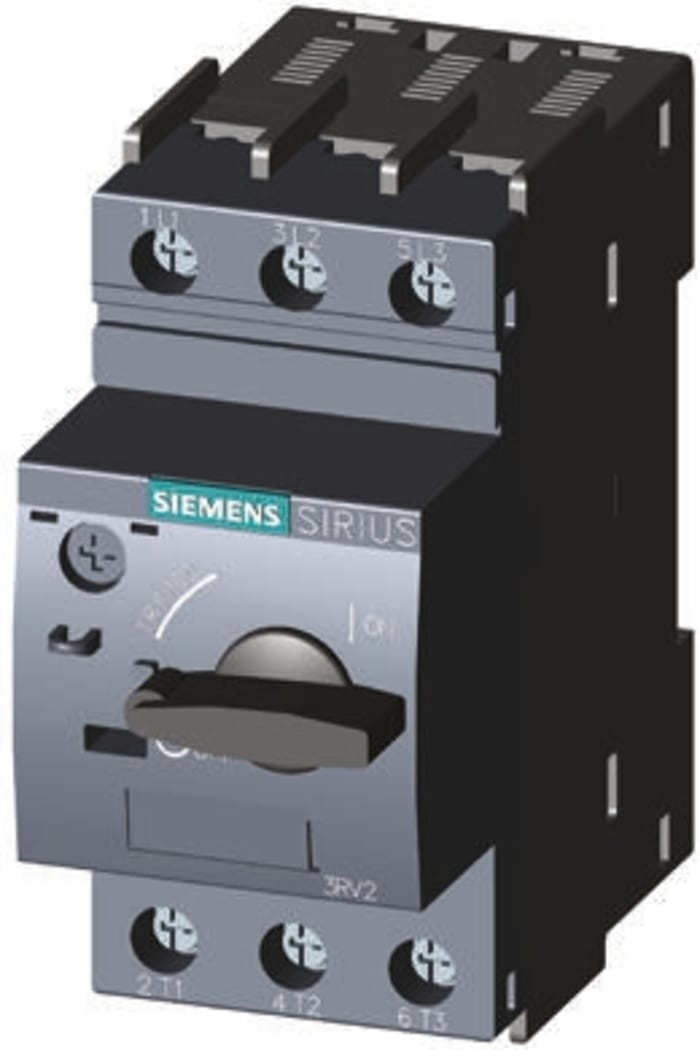

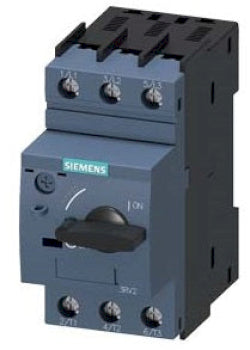

3RV2011-0DA10 - Siemens SIRIUS Type 3RV2 Motor Protection Circuit Breaker 690VAC 0.22-0.32A 100kA 3-Pole

3RV2011-0DA10

3RV2011-0DA10 is a Siemens SIRIUS Type 3RV2 motor protection circuit breaker designed for reliable motor overload and short-circuit protection in industrial applications. This Class 10 thermal-magnetic circuit breaker features an adjustable thermal release with a setting range of 0.22 to 0.32 amperes and a fixed magnetic N-release rated at 4.2 amperes for instantaneous short-circuit protection. The unit is rated for 690 VAC operation with a 100 kA interrupt capacity and is configured with 3 poles for three-phase motor protection. It mounts on DIN rail and includes screw-type terminals for secure electrical connections. The S00 frame size provides compact installation in control panels and motor starter enclosures. With 100,000 operating cycles and an operating temperature range of -20 to +60 degrees Celsius, this motor protector delivers dependable performance in demanding industrial environments. The rotary dial adjustment allows field technicians to set motor full-load amperage (FLA) without requiring additional tools or accessories.

• Type: 3RV2 Motor Protection Circuit Breaker
• Manufacturer: Siemens SIRIUS
• Part Number: 3RV2011-0DA10
• Voltage Rating: 690 VAC
• Amperage Range: 0.22 to 0.32 A (A-release)
• Magnetic Release: 4.2 A (N-release)
• Interrupt Rating: 100 kA
• Number of Poles: 3
• Frame Size: S00
• Trip Unit: Thermal-Magnetic
• Mounting: DIN Rail
• Terminal Type: Screw
• Operating Cycles: 100,000

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RV2011-0DA10
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sirius

Product Data

• UPC : 66264392143
• GTIN : 00662643921434
• Weight : 0.616
