Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

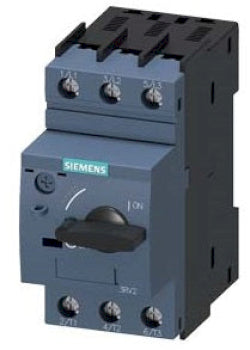

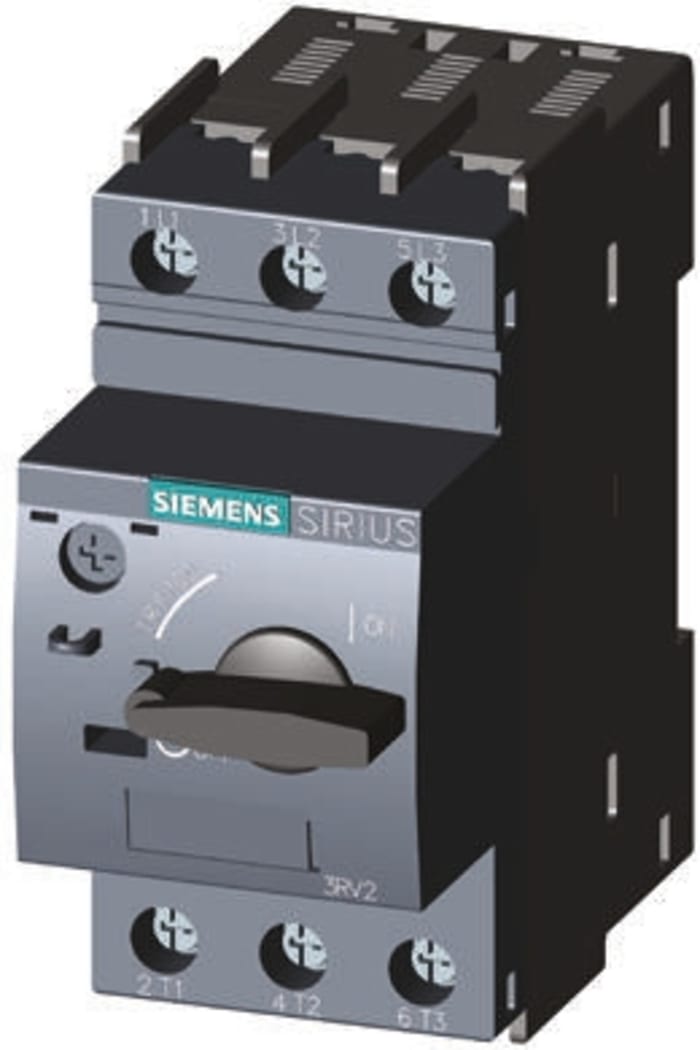

3RV2011-1HA10
3RV2011-1HA10 is a Siemens motor protector circuit breaker designed for motor protection with an adjustable current range of 5.5 to 8 amps and a rotary ON/OFF handle.
This Siemens Sirius 3RV2011-1HA10 circuit breaker features Class 10 overload trip characteristics, magnetic short circuit protection, and screw terminal connections. It mounts easily on a standard 35mm DIN rail and is rated for up to 690 volts AC. The device provides combined motor overload, short circuit protection, and disconnect functionality in a compact S00 frame size. It is UL approved and suitable for use downstream of fuses or circuit breakers, offering reliable motor control and protection.
- Adjustable current range: 5.5 to 8 A
- Voltage rating: 690 VAC
- Number of poles: 3
- Trip class: 10
- Frame size: S00
- Mounting type: DIN rail (35 mm)
- Connection type: Screw terminals
- Magnetic short circuit trip
- Rotary ON/OFF handle
- UL approved
- Standard switching capacity
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RV2011-1HA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 66264392407
- GTIN : 00662643924077
- Weight : 0.77
