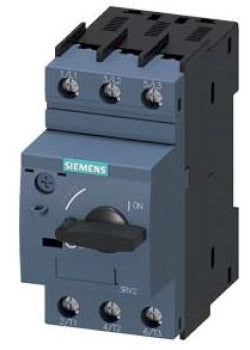

3RV2011-1AA10 - Siemens SIRIUS Circuit Breaker S00 Motor Protection 1.1-1.6A Class 10

3RV2011-1AA10

3RV2011-1AA10 is a Siemens SIRIUS circuit breaker designed for motor protection with adjustable thermal overload and magnetic short-circuit protection in a compact S00 frame size. This motor protector features a rotary ON/OFF handle, class 10 overload trip characteristics, and is suitable for use as a Type E self-protected combination motor controller when paired with appropriate contactors. 3RV2011-1AA10 combines overload protection, short-circuit protection, disconnect capability, and motor control in a single device, eliminating the need for multiple components. The unit mounts directly on standard 35mm DIN rail for straightforward installation and removal. Built-in heater elements provide thermal overload protection while magnetic trip elements safeguard against short circuits. Phase loss sensitivity is included to detect single-phase conditions. Optional 3RV2901 auxiliary contact blocks are available for motor disconnection signaling or pilot device integration.

• Amperage Range: 1.1 to 1.6 A adjustable
• Overload Protection: Class 10 (trips in 10 seconds or less)
• Frame Size: S00
• Mounting: 35mm DIN rail
• Terminal Type: Screw
• Rated Voltage: 20 to 690 V AC
• Short-Circuit Breaking Capacity: 100 kA at 400 V, 500 V, and 690 V AC
• Operating Frequency: 50 to 60 Hz
• Thermal Overload Release: 1.1 to 1.6 A
• Magnetic Release: 21 A
• Phase Loss Sensitive: Yes
• Certifications: UL approved for Type E protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RV2011-1AA10
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sirius

Product Data

• UPC : 662643921786
• GTIN : 00662643921786
• Weight : 0.748
