Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
3RV2011-0KA25

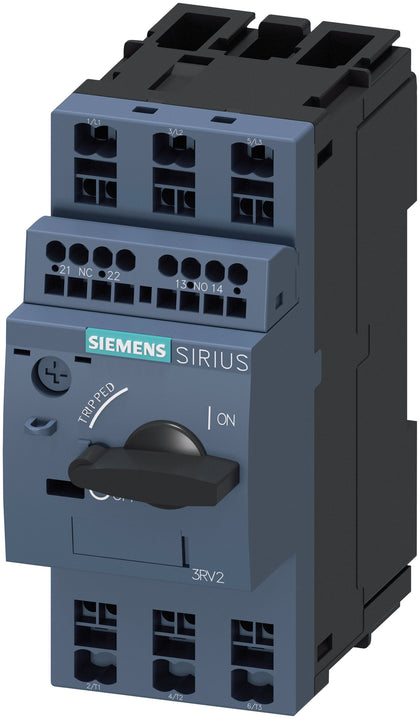

3RV2011-0KA25 is a Siemens 3-pole motor protection circuit breaker designed for reliable motor control and protection.This circuit breaker features a size S00 frame with a current rating of 0.9 to 1.25 amps and a trip release class 10 A. It supports a rated operating voltage of 690 V AC and includes a magnetic trip unit with a 16 A trip setting. The device has a spring-type terminal connection and is suitable for DIN rail mounting. It offers a high interrupt rating of 100 kA and an IP20 enclosure rating. The breaker is designed for three-phase motor protection with auxiliary contacts rated 1NO-1NC and operates within a temperature range of -20 to 60 degrees Celsius.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3RV2011-0KA25
- Poles: 3
- Amperage Range: 0.9 to 1.25 A
- Voltage Rating: 690 V AC
- Frame Size: S00
- Trip Type: Magnetic, Class 10
- Trip Setting: 16 A
- Interrupt Rating: 100 kA
- Mounting Type: DIN Rail
- Connection Type: Spring-Type Terminal
- Enclosure Rating: IP20
- Auxiliary Contacts: 1NO-1NC
- Operating Temperature: -20 to 60 °C
Specifications
- Part Number: 3RV2011-0KA25
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 066264392181
- GTIN : 00662643921816
- Weight : 1
