Description
3RV2011-0AA10

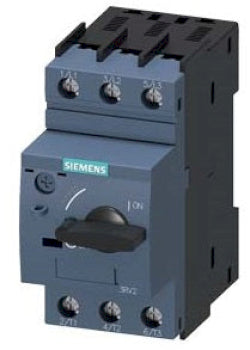

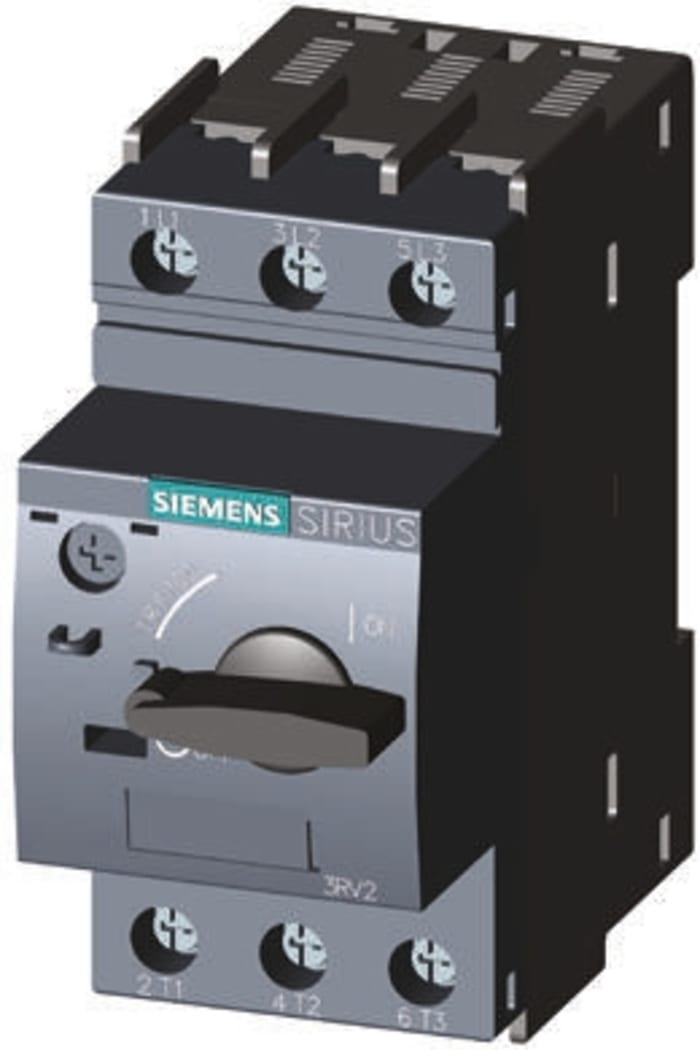

3RV2011-0AA10 is a Siemens motor protection circuit breaker designed for reliable overload and short circuit protection in motor control applications.
This Siemens Sirius 3RV2011-0AA10 circuit breaker features a 3-pole configuration with a thermal-magnetic trip unit adjustable from 0.11 to 0.16 amps and a class 10 overload trip characteristic. It supports a voltage rating of up to 690 VAC and is built on the S00 frame size. The device mounts easily on a standard 35mm DIN rail with screw terminals for secure wiring connections. It offers a high interrupt rating of 100 kA and an IP20 enclosure rating, suitable for industrial motor protection with phase loss sensitivity and rotary ON/OFF handle operation.
- Amperage Range: 0.11 to 0.16 A
- Voltage Rating: 690 VAC
- Number of Poles: 3
- Frame Size: S00
- Trip Unit: Thermal Magnetic, Class 10
- Interrupt Rating: 100 kA
- Mounting Type: DIN Rail
- Connection Type: Screw Terminals
- Enclosure Type: IP20
- Frequency Rating: 50/60 Hz
- Phase: 3-Phase
- Operating Temperature Range: -20 to 60 °C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RV2011-0AA10
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sirius
Product Data
- UPC : 66264391963
- GTIN : 00662643919639
- Weight : 0.594
