Description

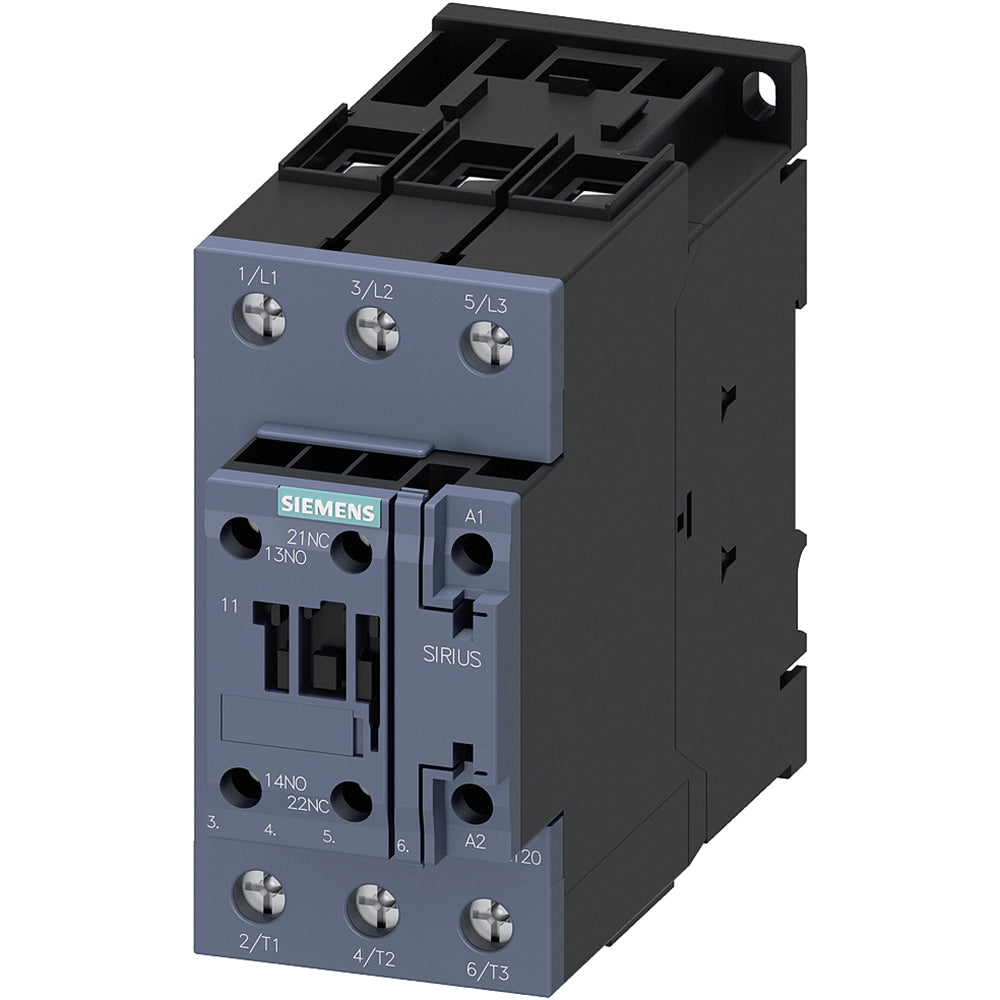

3RT20361AP60
3RT20361AP60 is a Siemens Sirius 3-pole motor contactor designed for reliable motor control applications.This Siemens 3RT20361AP60 contactor features a 50A rated current capacity at 690V AC, suitable for three-phase motor control. It includes a 220/240V AC coil voltage compatible with 50/60 Hz supply, and is built on the S2 frame size. The contactor offers 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts and is designed for vertical mounting with screw terminals. It supports AC-3 utilization category with a power rating of up to 22 kW at 400V. The enclosure rating is IP20.
- Rated current: 50 A at 690 V AC
- Number of poles: 3
- Coil voltage: 220/240 V AC, 50/60 Hz
- Frame size: S2
- Auxiliary contacts: 1 NO + 1 NC
- Mounting type: Vertical
- Utilization category: AC-3
- Power rating: 22 kW at 400 V
- Enclosure rating: IP20
Specifications
- Part Number: 3RT20361AP60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 690
- Amperage : 50
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 15 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 40 hp
- Aux Contacts : 1NO/1NC
- Coil Voltage Maximum : 240
- Full Load Amps : Full Load Amps-Inductive 52A Full Load Amps-Resistive 70A
Product Data
- UPC : 887621916510
- GTIN : 00887621916510
- Country of Origin : Germany
- Dimensions : 4.823 x 2.441 x 5.591 inch
- Weight : 2.185
- Certification : REACH Art 33, WEEE (2012/19/EU)
