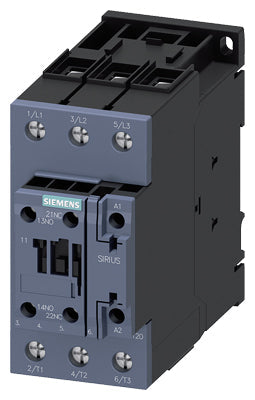

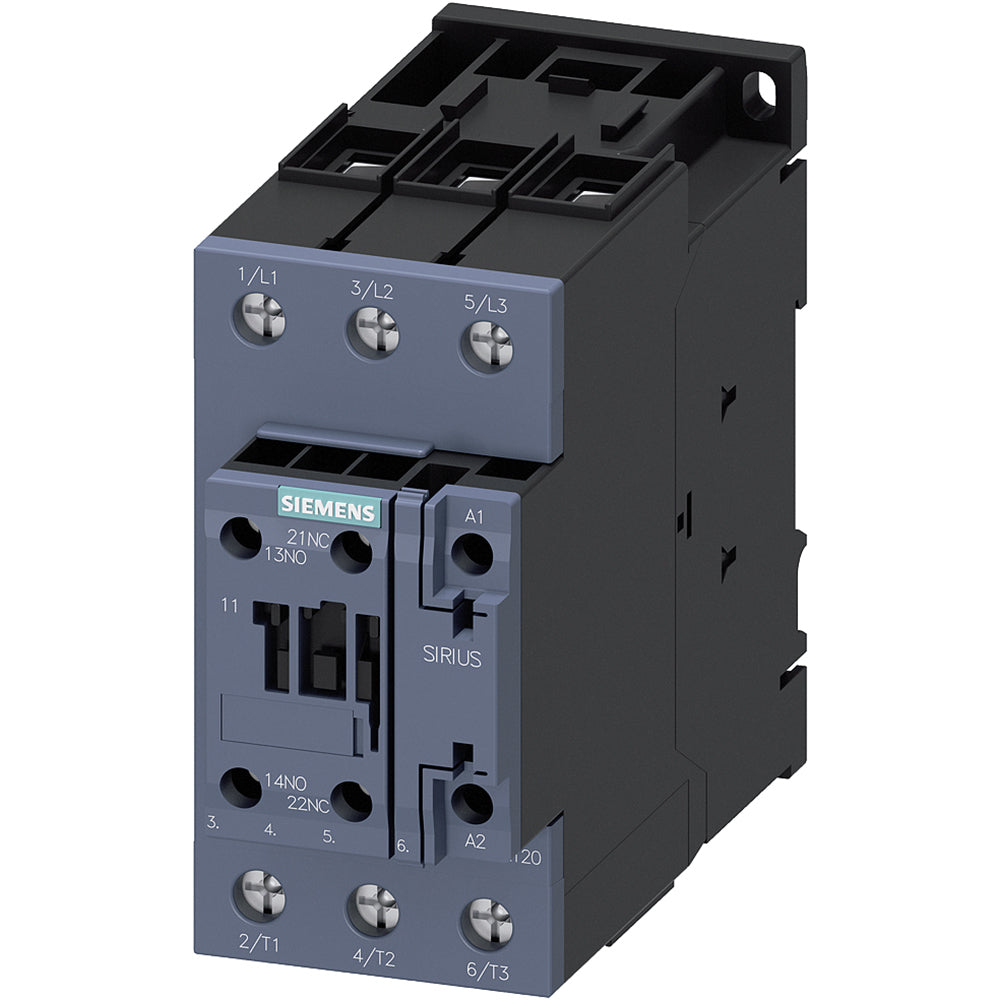

3RT20361AM20 - Siemens SIRIUS 3-Pole 50A 208V AC Power Contactor S2

3RT20361AM20

3RT20361AM20 is a Siemens SIRIUS power contactor designed for AC-3 motor switching applications with a 50 A rated load current at 22 kW / 400 V. This 3-pole contactor features a 208 V AC coil, 50/60 Hz operation, and includes 1 NO + 1 NC auxiliary contacts for reliable control circuits. The Size S2 frame provides compact DIN rail mounting with screw terminal connections for secure installation in industrial motor control panels. Operating temperature range of -25 to 60 degrees Celsius ensures reliable performance across diverse environments. Maximum switching voltage rating of 690 VAC accommodates high-voltage applications. The contactor delivers 10 million operating cycles for extended service life in demanding industrial settings.

• Part Number: 3RT20361AM20
• Manufacturer: Siemens
• Series: SIRIUS 3RT20
• Rated Load Current: 50 A AC-3
• Coil Voltage: 208 V AC
• Frequency: 50/60 Hz
• Number of Poles: 3
• Auxiliary Contacts: 1 NO + 1 NC
• Frame Size: S2
• Mounting: DIN Rail
• Termination: Screw Terminal
• Operating Temperature: -25 to 60 degrees C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT20361AM20
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Sirius
• Type : 3RT20
• Voltage : 690
• Amperage : 50
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 15 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 40 hp
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 208
• Full Load Amps : Full Load Amps-Inductive 52A Full Load Amps-Resistive 70A

Product Data

• UPC : 887621916411
• GTIN : 00887621916411
• Country of Origin : Germany
• Dimensions : 4.823 x 2.441 x 5.591 inch
• Weight : 2.167
• Certification : REACH Art 33, WEEE (2012/19/EU)
