3RT20361AK60 - Siemens 3-Pole Power Contactor 70A 110-120VAC S2 Size Screw Terminal IP20

Save $314.14
SKU: 3RT20361AK60-New
Condition: New
Price:
$199.86 $514.00
Stock:
19 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

3RT20361AK60 Siemens Sirius Contactor 3 pole 3 phase 690V 50A - Essential Electric Supply
3RT20361AK60 - Siemens 3-Pole Power Contactor 70A 110-120VAC S2 Size Screw Terminal IP20 - Essential Electric Supply

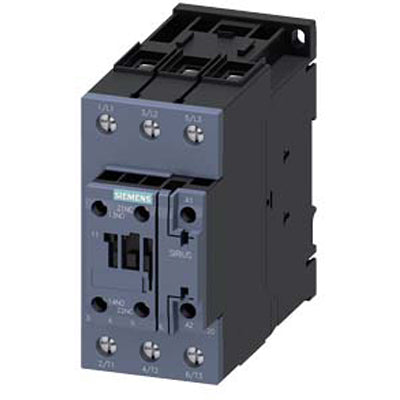

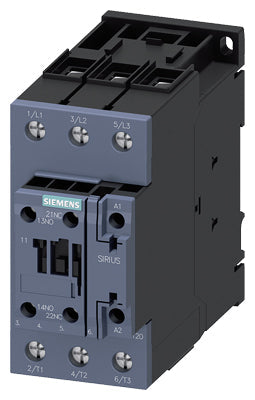

Roll over image to zoom in Click on image to zoom Images are for reference only
3RT20361AK60 Siemens Sirius Contactor 3 pole 3 phase 690V 50A - Essential Electric Supply
3RT20361AK60 - Siemens 3-Pole Power Contactor 70A 110-120VAC S2 Size Screw Terminal IP20 - Essential Electric Supply

Description

3RT20361AK60


3RT20361AK60 is a Siemens SIRIUS 3-pole power contactor designed for reliable motor control and switching applications. This contactor features a 110-120VAC coil, 3NO main contacts, and 1NO+1NC auxiliary contacts, making it suitable for a wide range of industrial uses. The device is rated for 70A at 400V AC-1 and 50A at 400V AC-3, with a robust S2 frame size and screw terminal connections for secure wiring. It is designed for DIN rail or snap-on mounting and operates efficiently in environments from -25°C to 60°C. Engineered for durability, the 3RT20361AK60 offers high switching capacity and long service life, supporting up to 10,000,000 operating cycles. Its IP20 enclosure provides protection against accidental contact, and the contactor is suitable for use in motor control circuits, HVAC systems, and other industrial applications.
  • Manufacturer: Siemens
  • Part Number: 3RT20361AK60
  • Series/Frame: SIRIUS S2
  • Number of Poles: 3
  • Main Contact Configuration: 3NO
  • Auxiliary Contact Configuration: 1NO+1NC
  • Coil Voltage: 110-120VAC
  • Rated Current: 70A AC-1, 50A AC-3 at 400V
  • Mounting Type: DIN Rail/Snap-On
  • Terminal Type: Screw
  • Enclosure Type: IP20
  • Operating Temperature: -25°C to 60°C
  • Operating Cycles: 10,000,000
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: 3RT20361AK60
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : Sirius
  • Type : 3RT20
  • Voltage : 690
  • Amperage : 50
  • Phase : 3
  • Poles : 3
  • Horse Power : HP @ 3 Phase - 208V 15 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 40 hp
  • Aux Contacts : 1NO/1NC
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 52A Full Load Amps-Resistive 70A

Product Data

  • UPC : 887621916343
  • GTIN : 00887621916343
  • Country of Origin : Germany
  • Dimensions : 4.823 x 2.441 x 5.591 inch
  • Weight : 2.167
  • Certification : REACH Art 33, WEEE (2012/19/EU)
