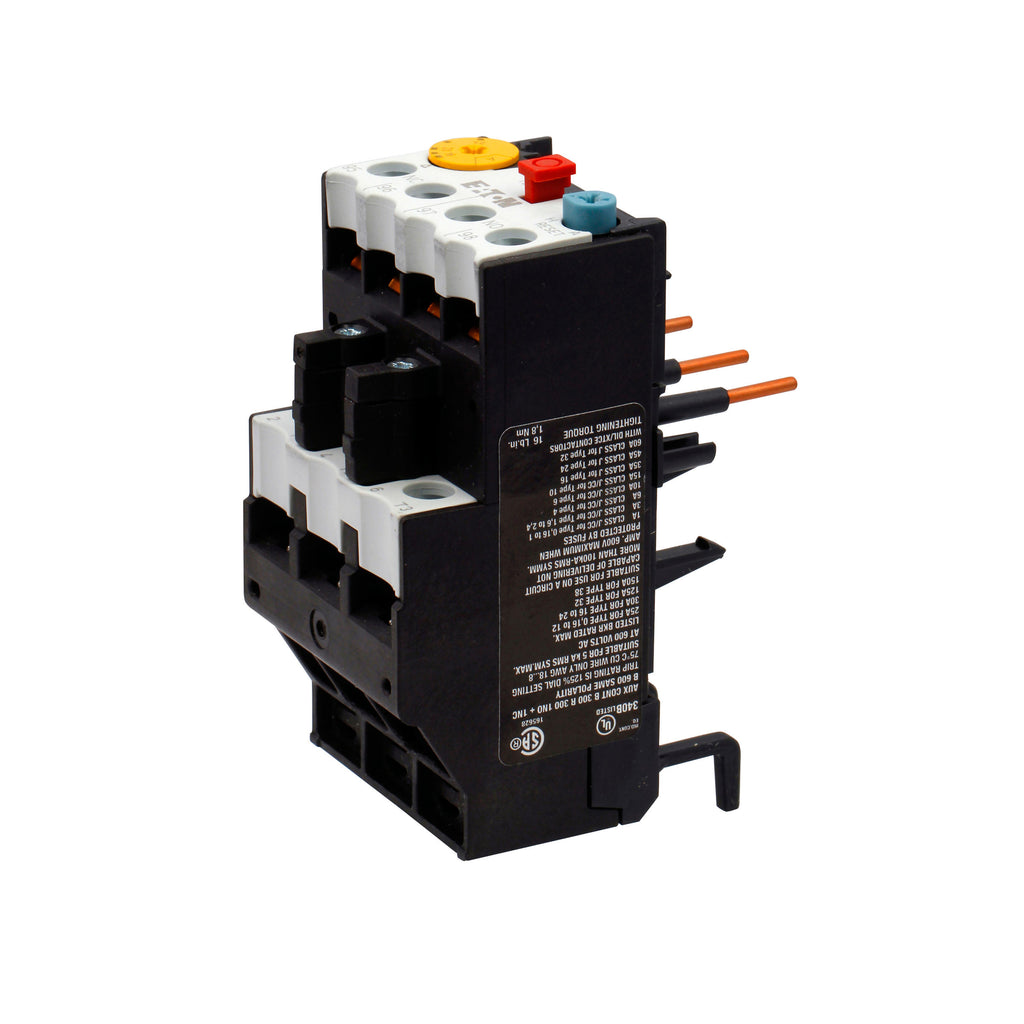

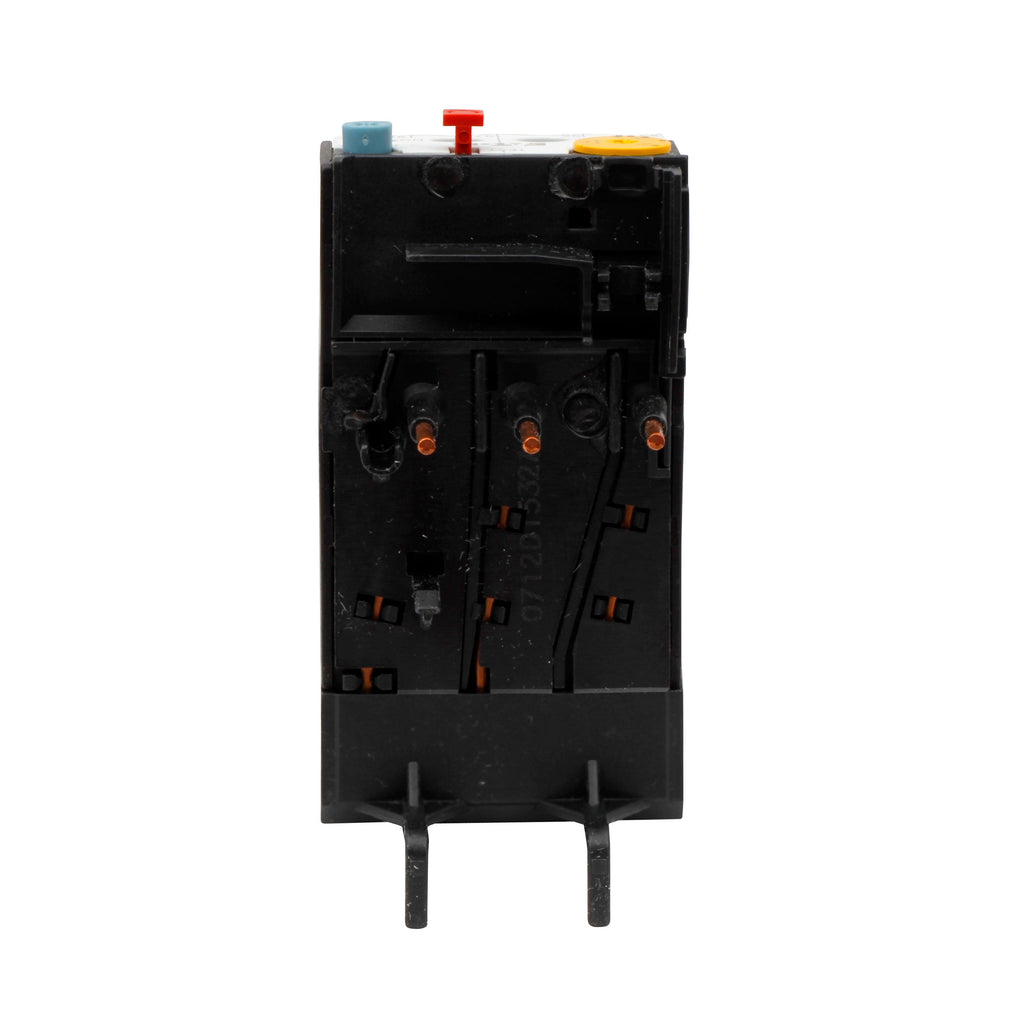

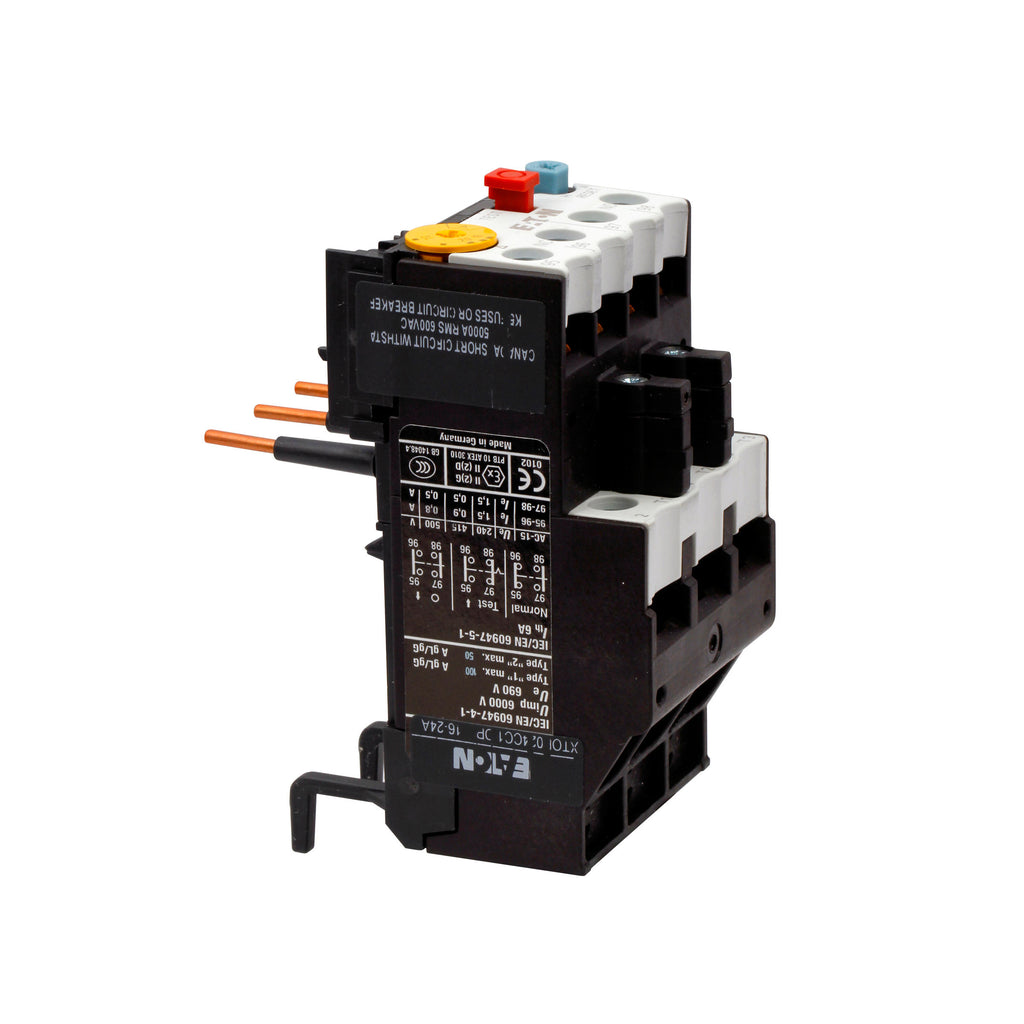

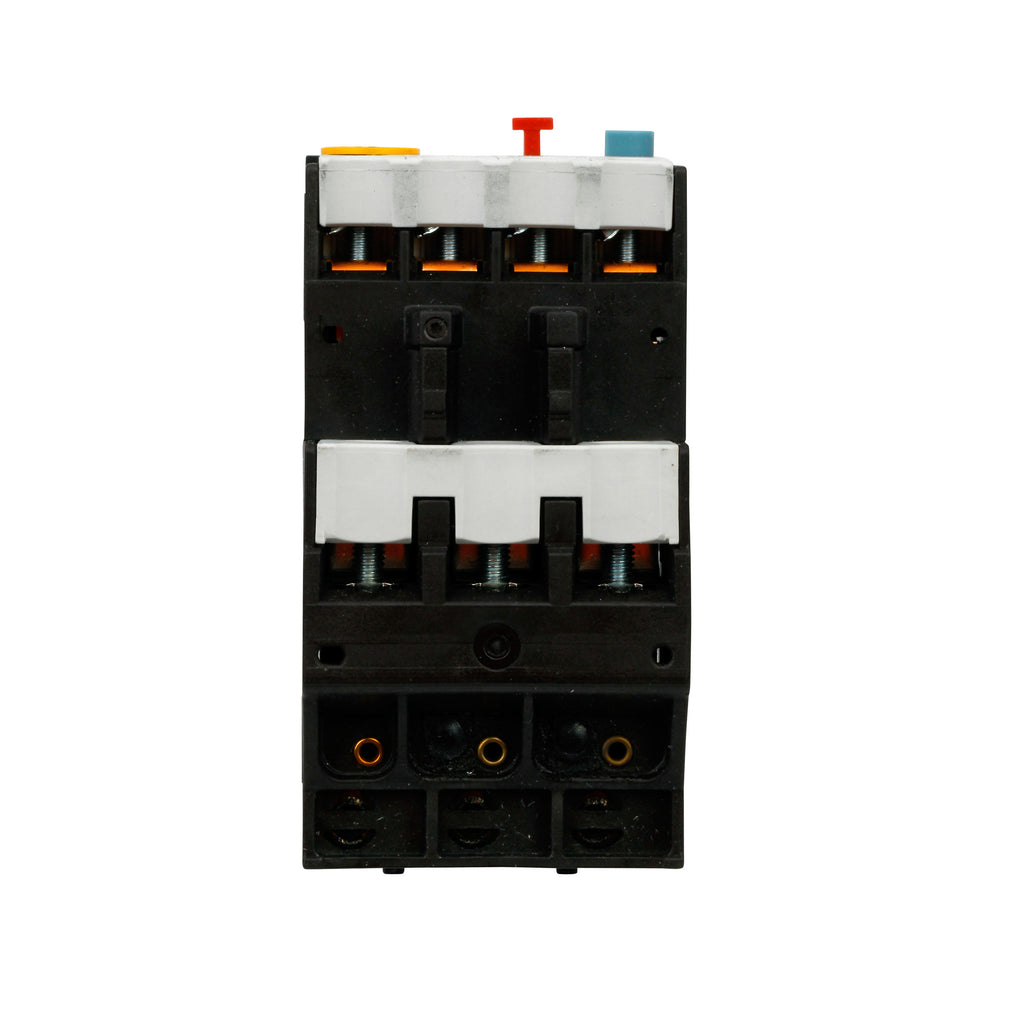

XTOB032CC1DP - Cutler Hammer 24-32A 3-Pole Thermal Overload Relay, Manual/Automatic Reset, 1NO 1NC Aux Contacts

XTOB032CC1DP

XTOB032CC1DP is a Cutler Hammer thermal overload relay designed for motor protection applications. This relay features an adjustable trip current range of 24 to 32 amps and provides reliable protection for motors in industrial environments. It supports both manual and automatic reset modes and includes one normally open (NO) and one normally closed (NC) auxiliary contact for control circuit integration. The unit is compatible with contactors in the C25 series and is suitable for use in a variety of motor control configurations. The XTOB032CC1DP is a 3-pole overload relay with phase loss protection and is designed for direct connection to contactors. It offers flexibility with manual or automatic reset options and is engineered for durability in demanding applications. The relay is commonly used in motor control centers and industrial control panels where reliable overload protection is required.

• Adjustable amperage range: 24A – 32A
• 3 poles
• Manual or automatic reset
• 1NO, 1NC auxiliary contacts
• Phase loss protection
• Compatible with C25 series contactors
• Direct connect mounting
• Thermal bimetallic trip unit
• Designed for industrial motor control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB032CC1DP
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Relay Style : Thermal
• Amperage Maximum : 32
• Amperage Minimum : 24

Product Data

• UPC : 782116978229
• GTIN : 00782116978229
• Country of Origin : United States
• Dimensions : 1.811 in x 3.819 in x 2.835 in (Length/Depth x Height x Width)
• Weight : 0.3 lb
• Certification : UL/CUL listed
