XTOB032CC1 - Cutler Hammer 24-32A Thermal Overload Relay, Frame C, Class 10, Direct Mount

XTOB032CC1

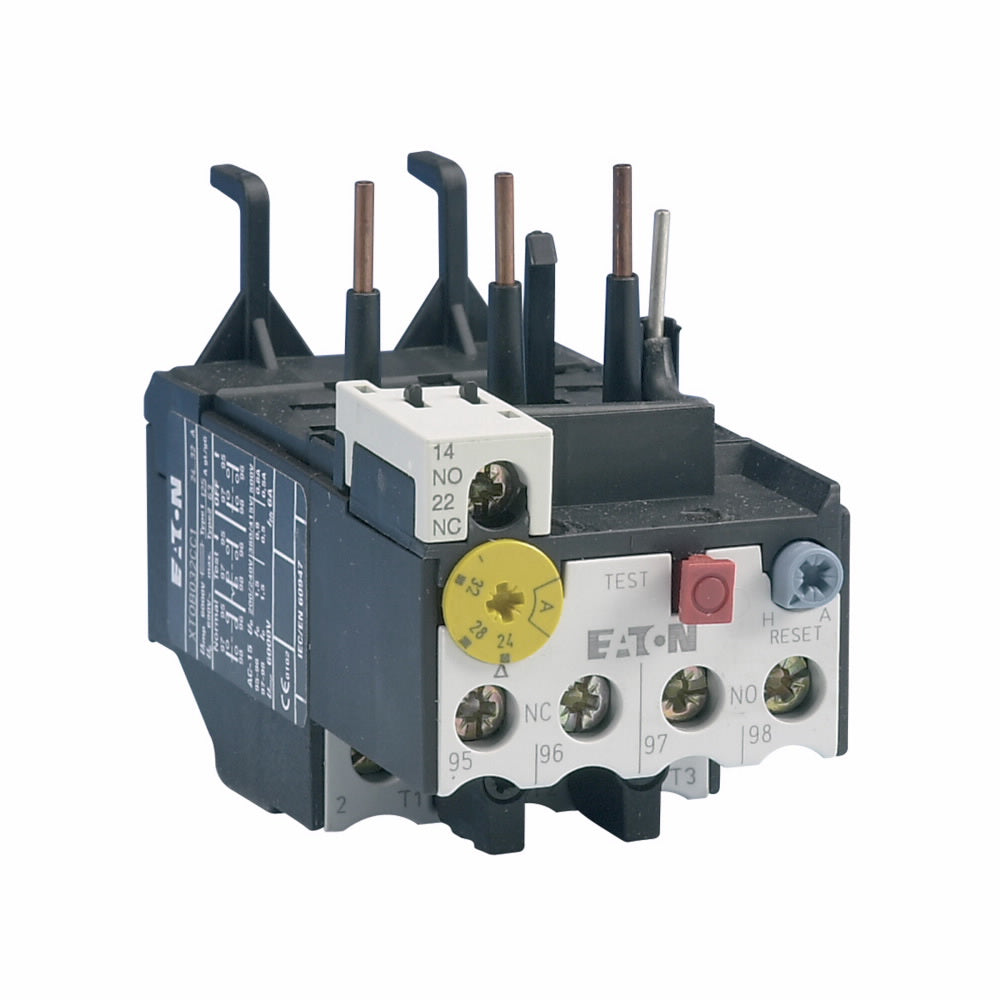

XTOB032CC1 is a Cutler Hammer thermal overload relay designed for motor protection with an adjustable current range of 24 to 32 amps.This Eaton XT IEC bimetallic overload relay features a 45 mm Frame C size, Class 10 trip unit, and 1NO-1NC contact configuration. It mounts directly to contactors such as XTCE017, XTCE025, and XTCE032, providing reliable protection against overload, phase asymmetry, and phase failure for three-phase motors.

• Amperage range: 24-32A adjustable
• Frame size: 45 mm (Frame C)
• Trip class: 10
• Contact configuration: 1NO-1NC
• Mounting type: Direct to contactor
• Compatible contactors: XTCE017, XTCE025, XTCE032
• Overload relay type: IEC bimetallic thermal
• Phase protection: Overload, phase loss, phase asymmetry
• Reset type: Manual and automatic
• Interrupt rating: IEC rated
• Certifications: IEC compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB032CC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 32
• Amperage Minimum : 24

Product Data

• UPC : 001508278454
• GTIN : 04015082784546
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, ATEX, UL, CSA, IEC, EN
