XTOB010CC1 - Cutler Hammer 6-10A Thermal Overload Relay, 3 Pole, Direct Mount, Class 10 Trip

XTOB010CC1

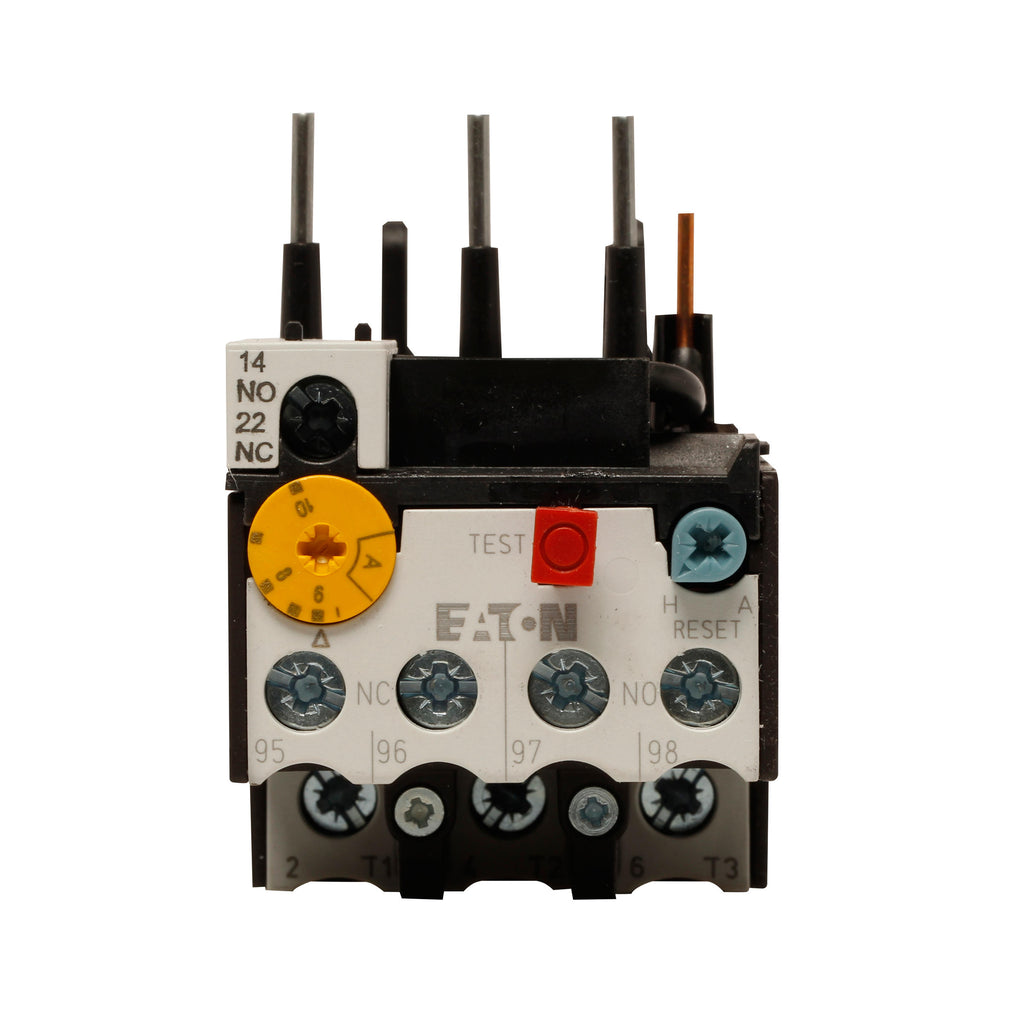

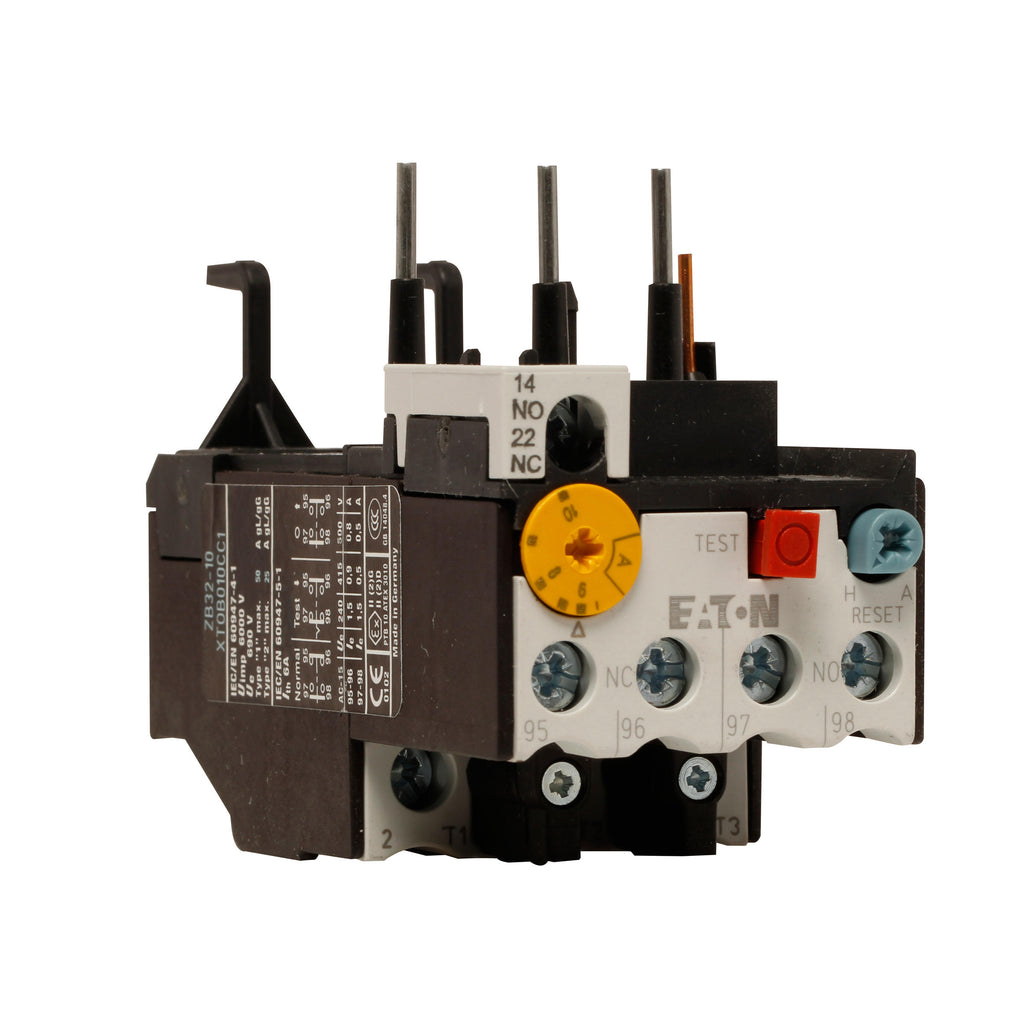

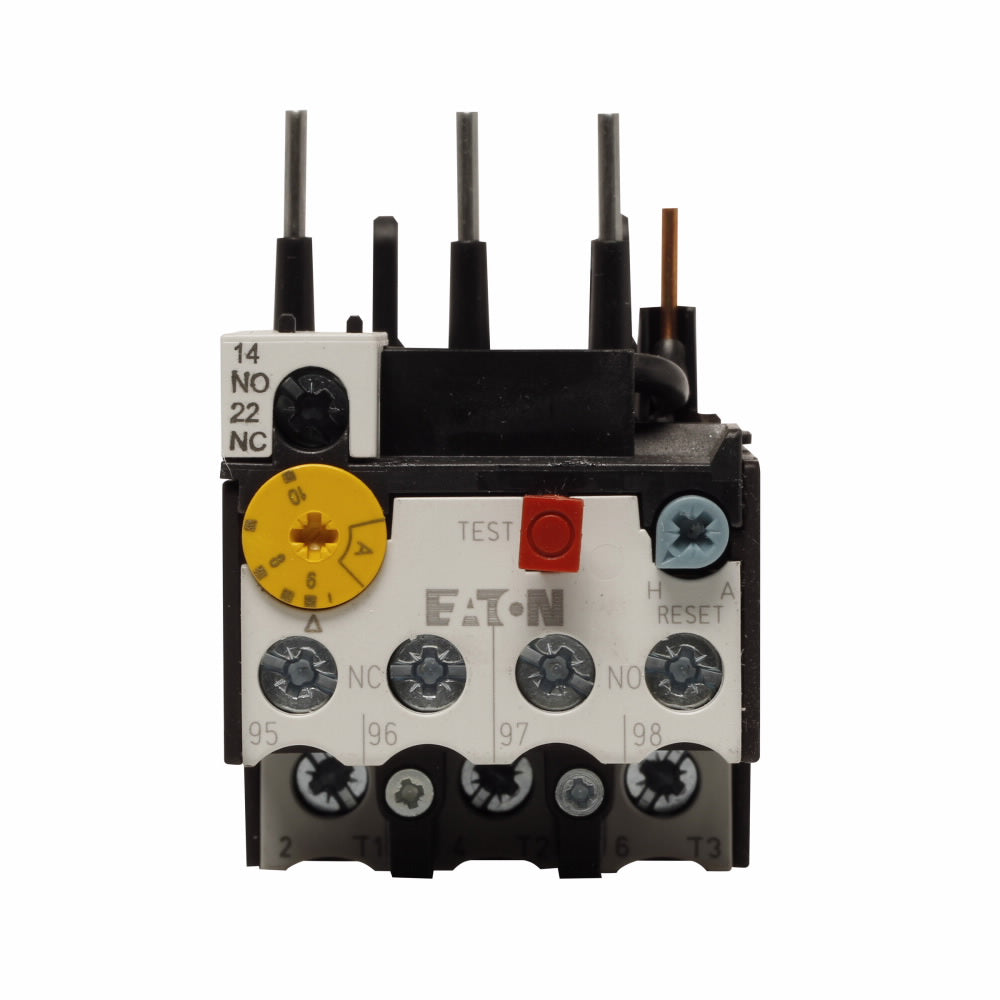

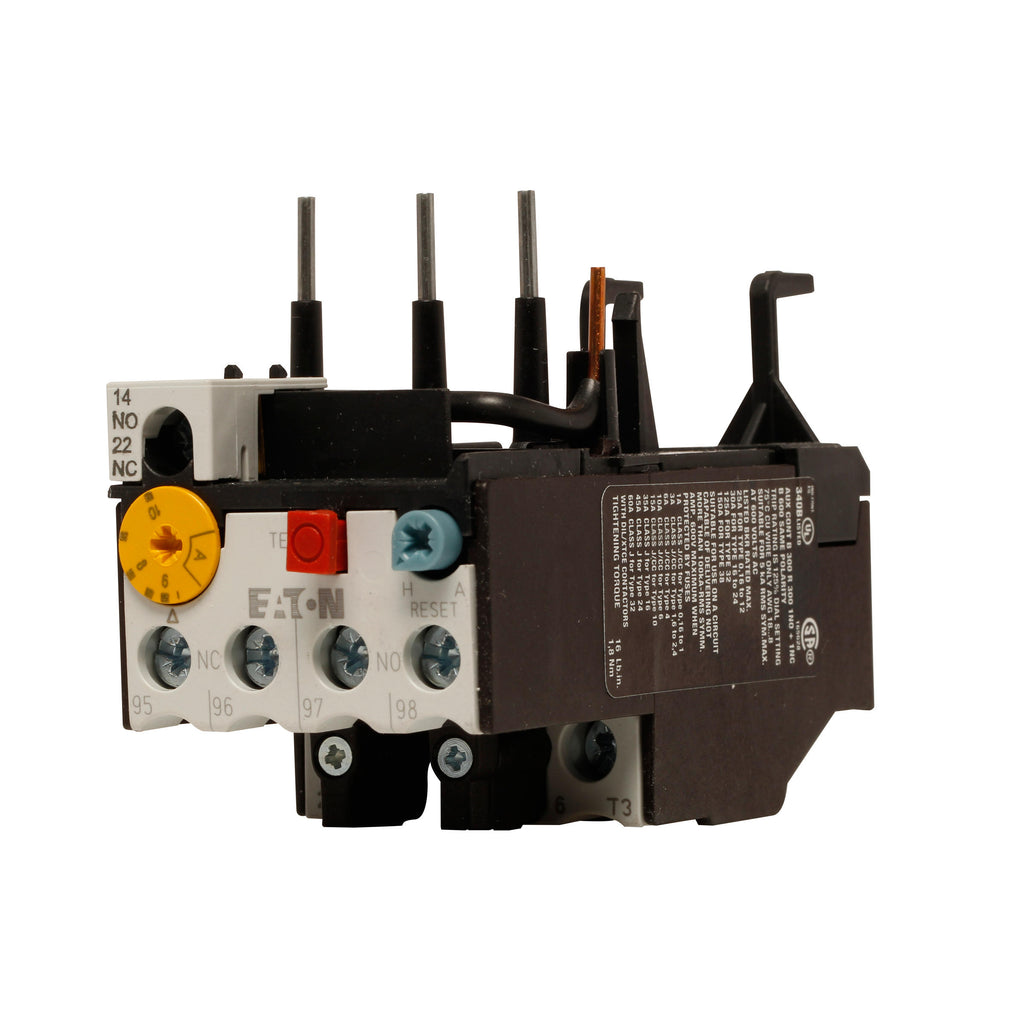

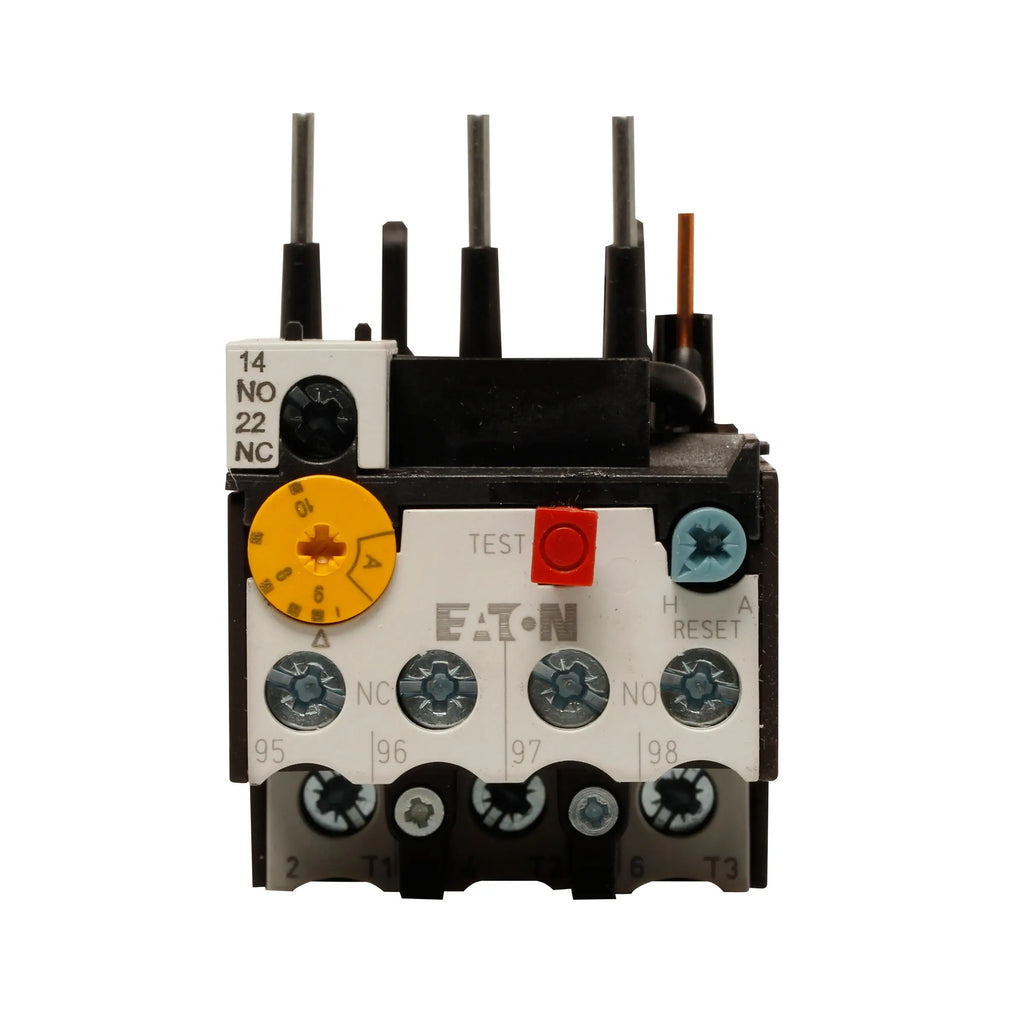

XTOB010CC1 is a Cutler Hammer thermal overload relay designed for motor protection with an adjustable current range of 6 to 10 amps.This 3-pole overload relay mounts directly to XTCE frame size C contactors (18-32A), features a Class 10 trip unit for fast motor protection, and includes one normally open and one normally closed auxiliary contact for coil power interruption. It supports manual or automatic reset and has a 45mm frame size.

Key Specifications
• Amperage Range: 6-10 Amps adjustable
• Poles: 3 Pole
• Mounting Type: Direct mount to XTCE contactors
• Trip Class: Class 10 (trip in 10 seconds or less)
• Auxiliary Contacts: 1 NO, 1 NC
• Frame Size: 45 mm
• Compatible Contactor Range: 18-32 Amps
• Reset Type: Manual or Automatic
• Manufacturer: Cutler Hammer (Eaton)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: XTOB010CC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 10
• Amperage Minimum : 6



Product Data

• UPC : 015082784519
• GTIN : 04015082784515
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.3 lb
• Temp Rating : -13–158 °F (-25–70 °C)
