XTOB010BC1 - Cutler Hammer XT IEC Bimetallic Overload Relay 6-10A 3 Pole Class 10 Frame 45mm

XTOB010BC1

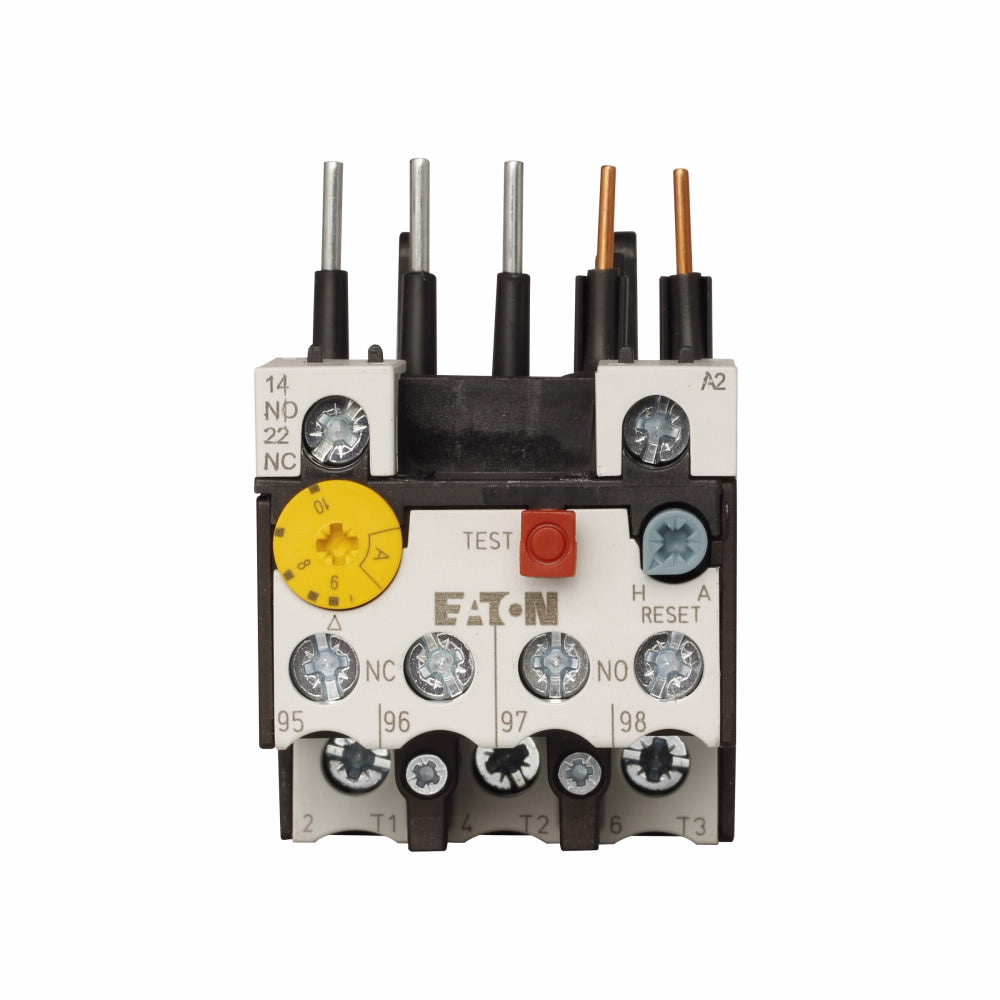

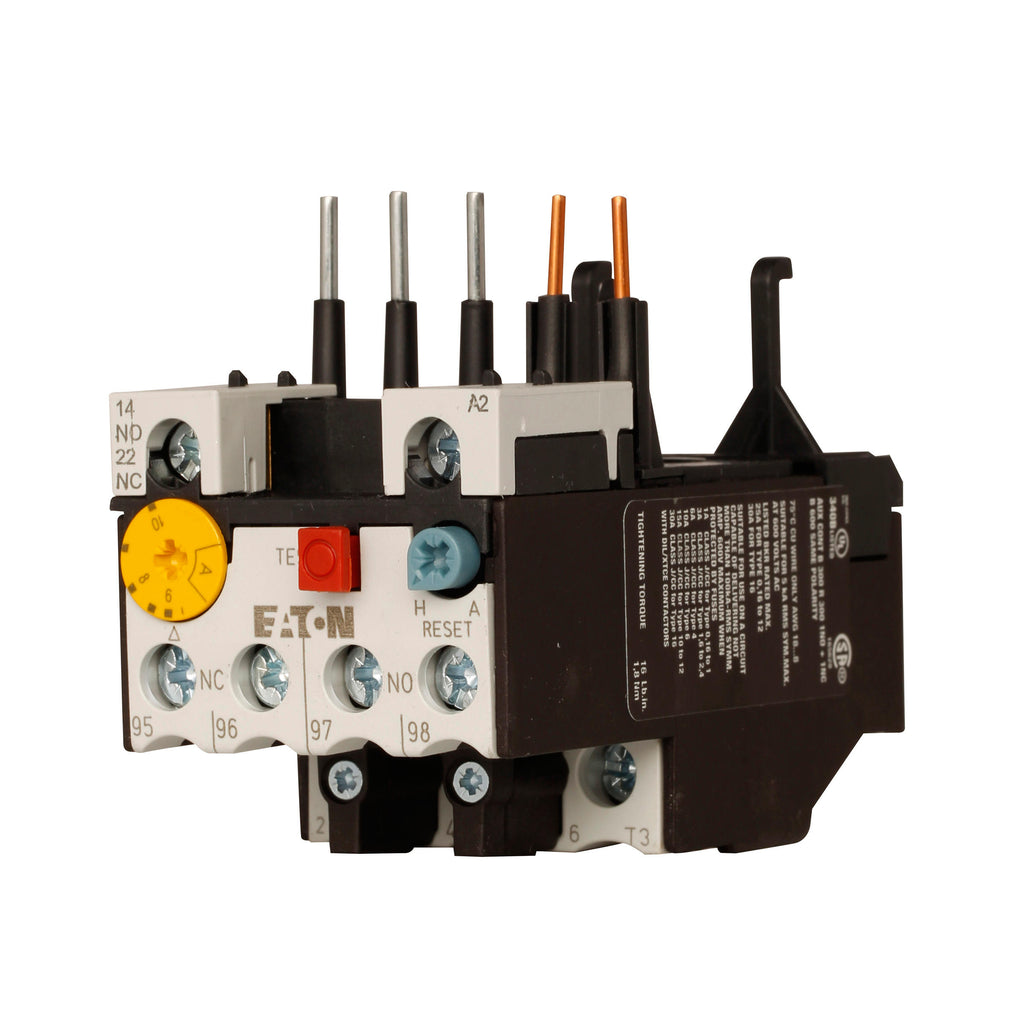

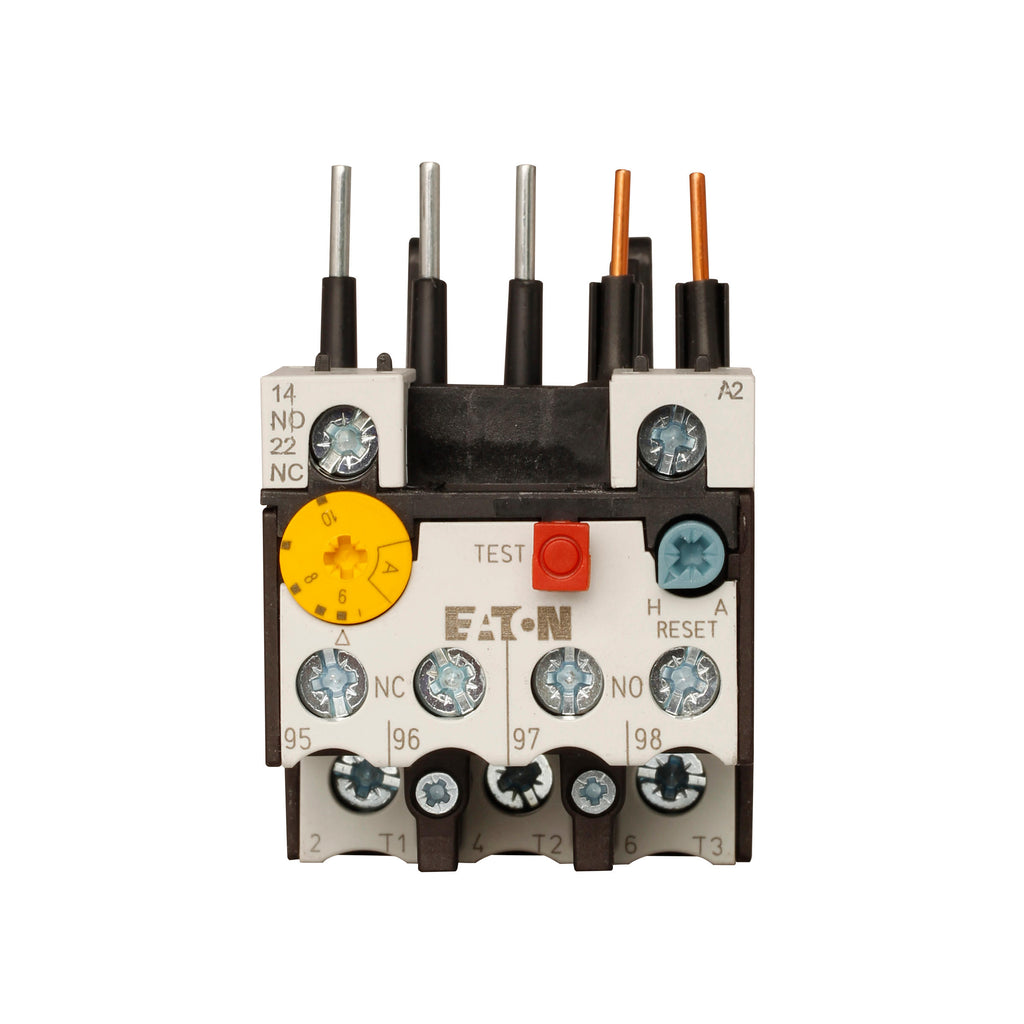

XTOB010BC1 is a Cutler Hammer XT IEC bimetallic overload relay designed for reliable motor protection in industrial applications. This 3-pole device features a 6-10A adjustable range, Class 10 trip response, and direct mounting to compatible contactors. It includes manual and automatic reset options, as well as 1NO-1NC auxiliary contacts for control circuit integration. The XTOB010BC1 provides ambient compensated, bimetallic overload tripping and is phase failure sensitive per IEC/EN 60947 standards. It is suitable for use with 7-15A contactors and offers robust protection against overload, phase asymmetry, and phase failure for three-phase motors.

• Part Number: XTOB010BC1
• Manufacturer: Cutler Hammer
• Series/Frame: XT IEC, 45mm Frame
• Amperage Range: 6-10A
• Poles: 3
• Mounting Type: Direct to Contactor
• Interrupt Rating: 10A Trip
• Trip Unit: Class 10 (2-10 seconds)
• Contact Configuration: 1NO, 1NC
• Reset Type: Manual/Automatic
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Standards: IEC 60947, EN 60947

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XTOB010BC1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : XT Series
• Type : XTOB
• Temp Rating : -13–158 °F (-25–70 °C)
• Relay Style : Thermal
• Amperage Maximum : 10
• Amperage Minimum : 6

Product Data

• UPC : 015082784403
• GTIN : 04015082784409
• Dimensions : 3.27 in x 1.89 in x 1.77 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, ATEX, UL, CSA, IEC, EN
