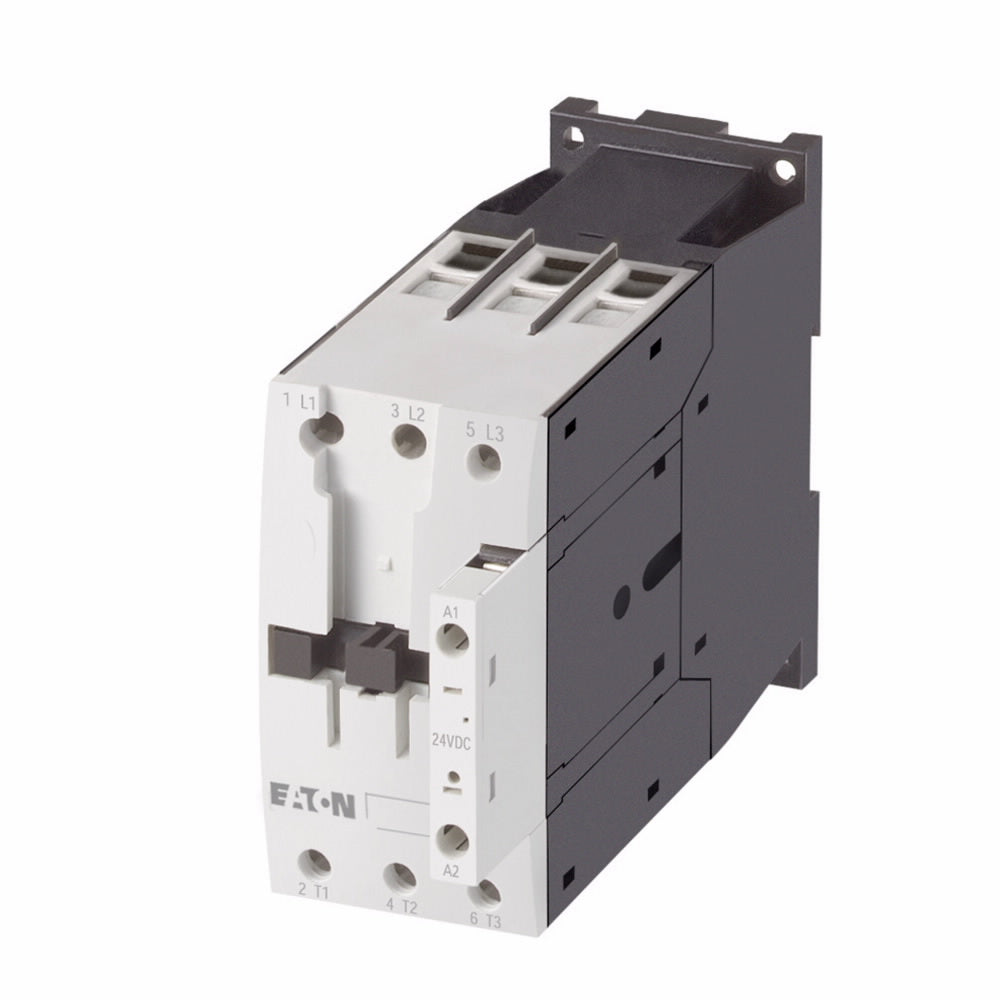

XTCE065D00B - Cutler Hammer 65A 3-Pole XT IEC Contactor 240V

XTCE065D00B

XTCE065D00B is a Cutler Hammer XT Series IEC contactor designed for industrial motor control applications with a 65-ampere rating and three-pole configuration. This contactor delivers reliable performance in AC-3 duty cycle applications with an 88-ampere AC-1 rating, making it suitable for controlling three-phase motors across multiple voltage and horsepower combinations. The unit features a compact Frame D design with a 55 mm mounting footprint and operates at 50-60 Hz frequency with an AC coil rated for 220V at 50 Hz or 240V at 60 Hz.

• Amperage Rating: 65A
• Configuration: 3-Pole
• Coil Voltage: 220V 50Hz / 240V 60Hz AC
• Frame Size: Frame D, 55 mm
• Horsepower Ratings: 5, 10, 15, 20, 25, 50, 60 HP (1/3PH at 115V, 200V, 230V, 460V, 575V)
• Duty Cycle: AC-3 (88A AC-1)
• Contact Configuration: 0NO-0NC
• Frequency: 50-60 Hz
• Standards Compliance: IEC 60947
• Series: XT IEC Contactor

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 220 VAC coil.

Specifications

• Part Number: XTCE065D00B
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE065D
• Voltage : 600
• Amperage : 65
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 20 hp HP @ 3 Phase - 240V 25 hp HP @ 3 Phase - 480V 50 hp
• Configuration : Non-Reversing
• Aux Contacts : 0 NO + 0 NC
• Coil Voltage Maximum : 240
• Full Load Amps : Full Load Amps-Inductive 65A Full Load Amps-Resistive 98A
• Coil Voltage Minimum : 240
• Frequency : 50 Hz

Product Data

• UPC : 786685363271
• GTIN : 04015082778934
• Country of Origin : Romania
• Dimensions : 5.77952756 in x 4.09448819 in x 2.16535433 in (Length/Depth x Height x Width)
• Weight : 0.5070632 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
