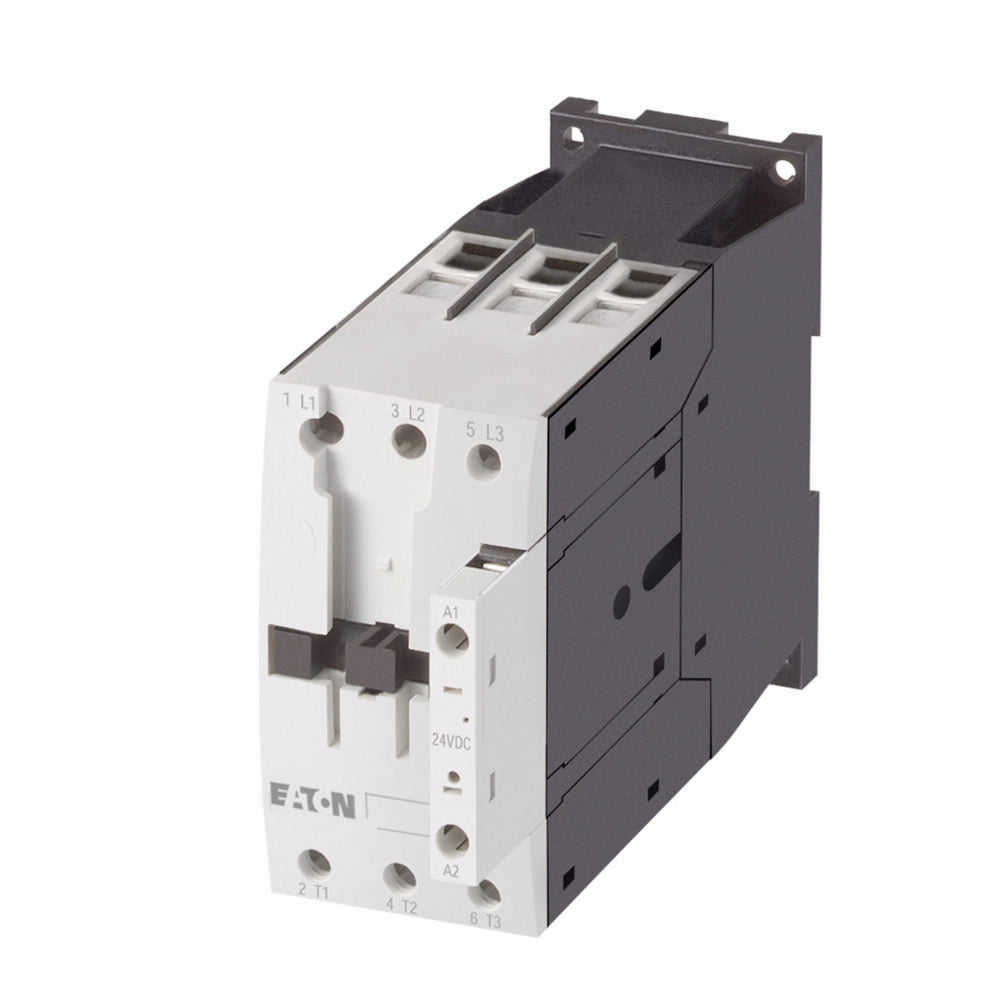

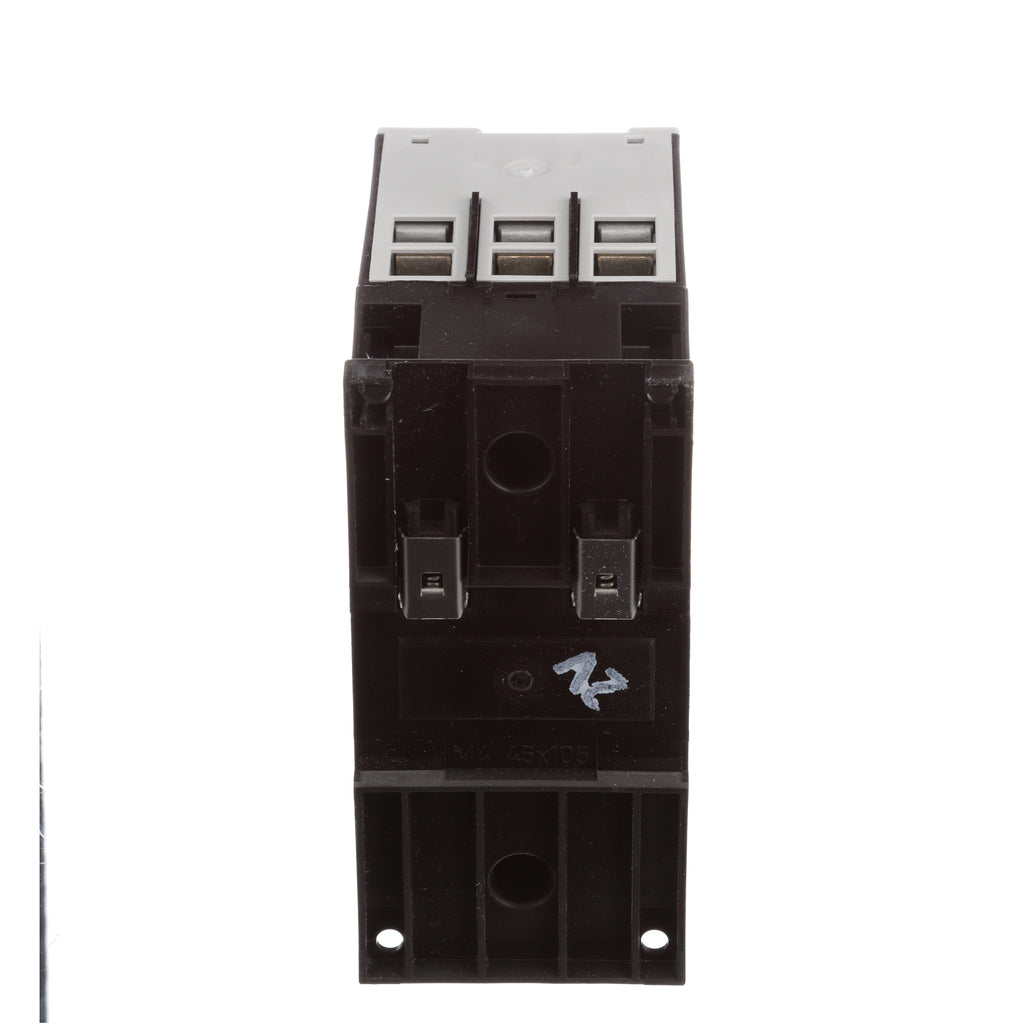

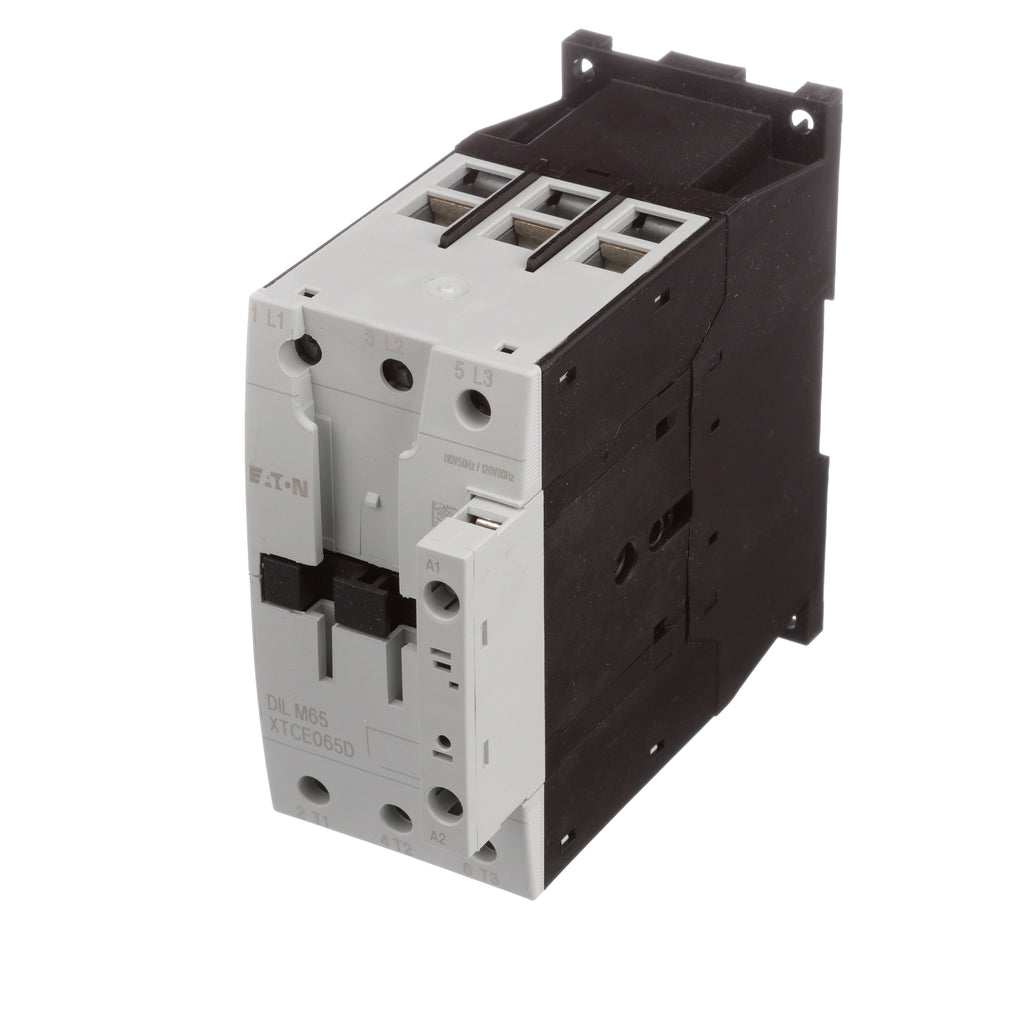

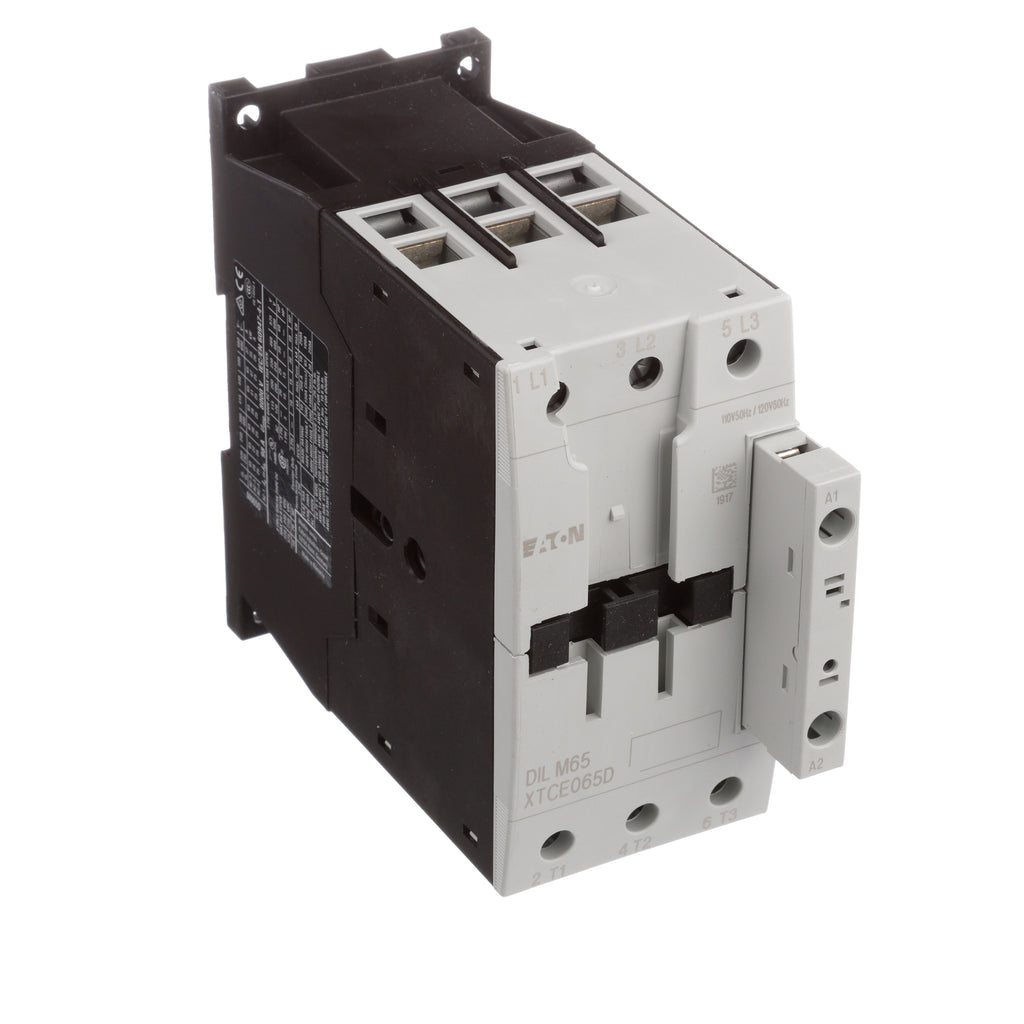

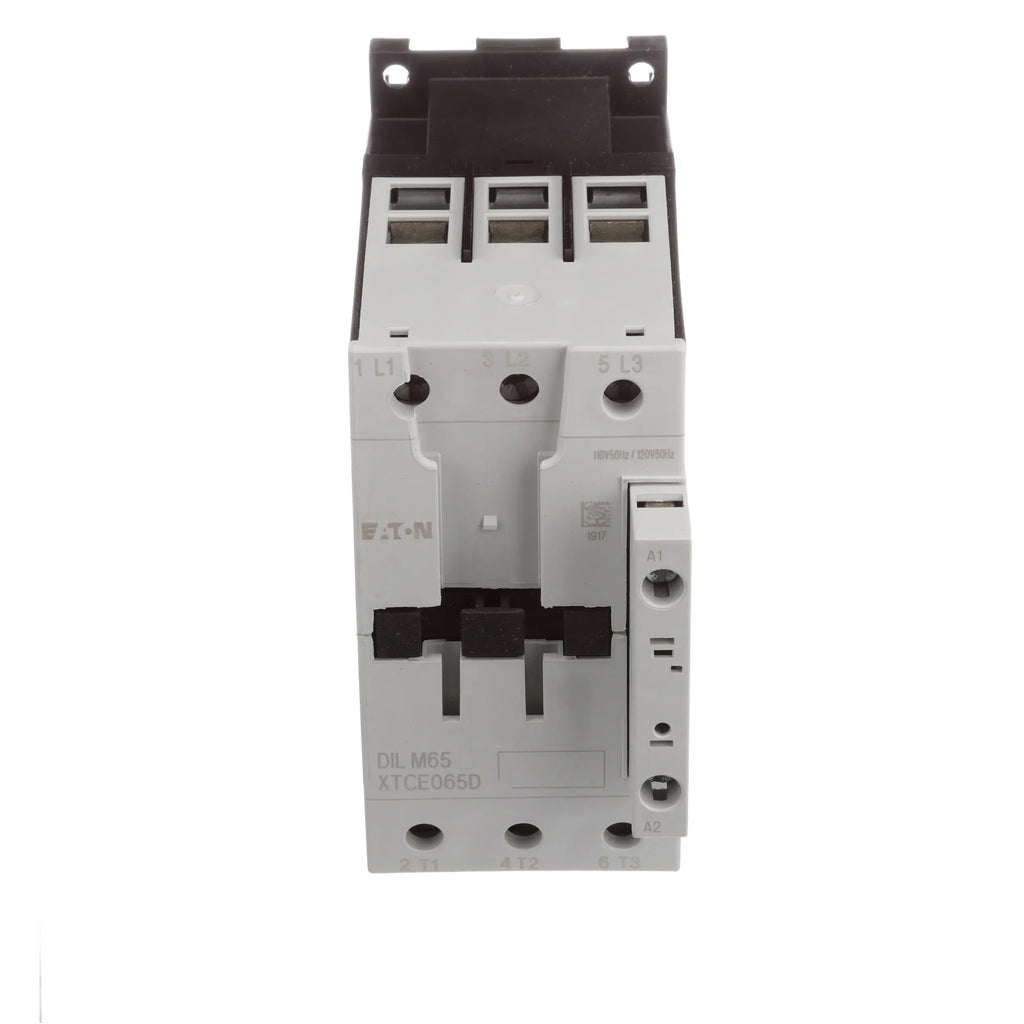

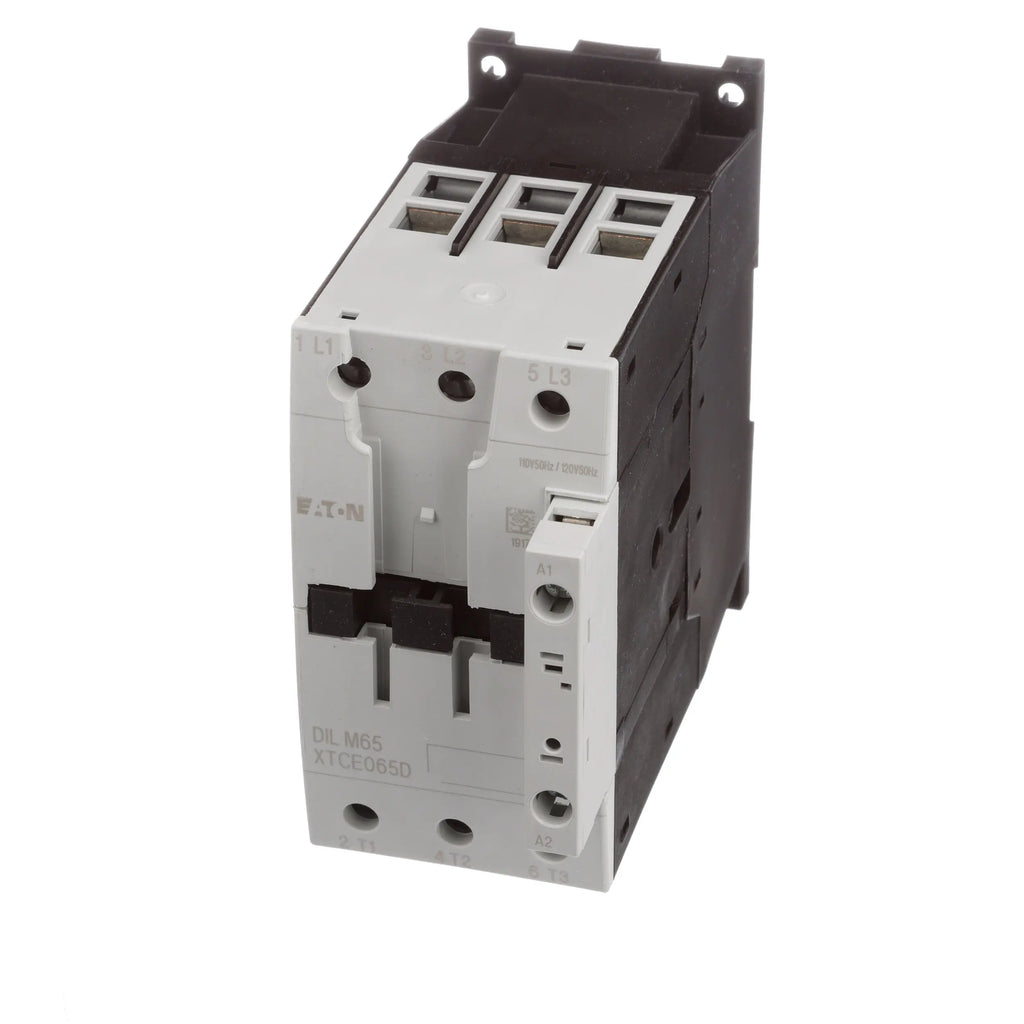

XTCE065D00A - Cutler Hammer 65A 3P Full Voltage Non-Reversing Contactor Frame D 110V/50Hz 120V/60Hz

XTCE065D00A

XTCE065D00A is a Cutler Hammer 65A three-pole full voltage non-reversing contactor designed for reliable motor and power control applications. This IEC-compliant device features a 55 mm frame size and is suitable for use in a wide range of industrial environments. The contactor is engineered for durability and efficient operation, supporting both 110V 50Hz and 120V 60Hz coil voltages. Its robust construction ensures long service life and dependable performance in demanding applications. The XTCE065D00A contactor is part of the Eaton XT series, offering advanced motor control solutions with a compact design and high interrupt capacity. It is ideal for use in motor starters, power distribution, and control panels where space and reliability are critical. The device is designed for easy installation and maintenance, making it a preferred choice for industrial and commercial applications.

• Part Number: XTCE065D00A
• Manufacturer: Cutler Hammer (Eaton)
• Amperage Rating: 65A
• Number of Poles: 3P
• Coil Voltage: 110V 50Hz, 120V 60Hz
• Frame Size: 55 mm (Frame D)
• Mounting Type: DIN Rail or Panel Mount
• Interrupt Rating: 100 kA
• Series: Eaton XT
• Frequency Rating: 50/60 Hz
• HP Rating: 50 HP at 460V
• Certifications: IEC 60947

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: XTCE065D00A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : XT Series
• Type : XTCE065D
• Voltage : 600
• Amperage : 65
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 20 hp HP @ 3 Phase - 240V 25 hp HP @ 3 Phase - 480V 50 hp
• Configuration : Non-Reversing
• Aux Contacts : 0 NO + 0 NC
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 65A Full Load Amps-Resistive 98A
• Coil Voltage Minimum : 120
• Frequency : 50 Hz

Product Data

• UPC : 015082778914
• GTIN : 04015082778910
• Country of Origin : Romania
• Dimensions : 6 in x 1.5 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.45 lb
• Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
